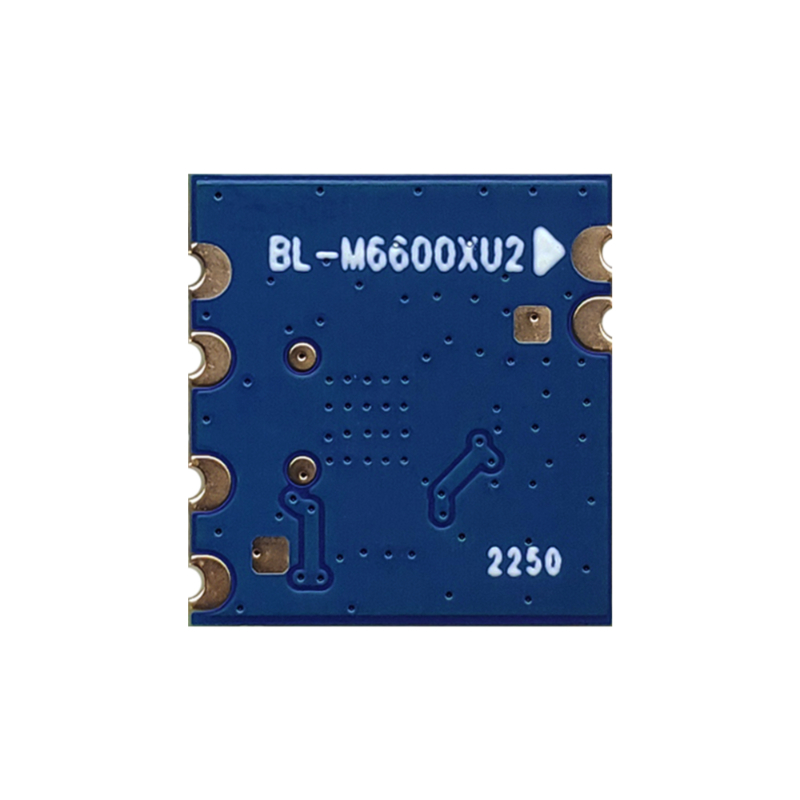

M6600XU2 1T1R 802.11b/g/n/ax WiFi Module

Reserare Advanced IoT Projects cum Arduino-Compatible ESP8266 WiFi Modules

Introductio

BL-M6600XU2 valde integrata est 2.4G band WLAN modulus ab ECR6600U innixus, qui cum 1T1R WLAN, WLAN, WLAN MAC, USB2.0 interfacies in uno chip coniungit. IEEE802.11b/g/n/axis modulus compatibilis, pluma-ditas connectivity offerens in signis altis, certa, cost-effectiva tradens, et alta throughput ab extensione distantis.

Features

Frequentia operans: 2.4~2.4835GHz

Compatible IEEE 802.11b/g/n/ax

Suscipe 802.11ax MCS0 usque ad MCS9 (20MHz latitudo tantum band)

Support MU-OFDMA in UL et DL sicut non AP STA

Maximum PHY rate usque ad 150Mbps（802.11n modus MCS7 HT40）

Hostia interface est USB2.0

3.3V±0.2V una potentia copia

Obstructionum Diagram

Generalis specifications

OMNIBUS	BL-M6600XU2
Chipset	ECR6600U
WLAN Signa	IEEE802.11b/g/n/ax
HOST Interface	USB2.0
Antenna	Antennae externae per medium foramen caudex coniungere
Dimensio	13*12.3*1.7mm (L*W*H)
POPULUM	DC 3.3±0.2V@ DC mA ( Max)
Operatio temperatus	-20 ℃ ad + LXX ℃
Operatio Umor	X% ad XCV% RH (non-condensing)

Productum dimensionem

Module dimensio: 13.0*12.3*1.7mm(L*W*H; Tolerantia: ±0.3mm_L/W, ±0.2mm_H)

Sarcina dimensiones

Package Specification:

I. 1,000 modulorum per volumine et 5,000 modules per arca.

II. Puteus Size: 37,5 * * 29cm 37.5.

3. Diameter caerulei ambitus amicae Flexilis laminae est 13 digitorum, cum tota crassitudine 28mm

    (cum latitudine 24mm balteum gerens).

IV. Posuit I sarcina ex arida agente (20g) et humiditas card in se anti-stabilis vacuo peram.

V. Quisque lobortis est cum V boxes.
