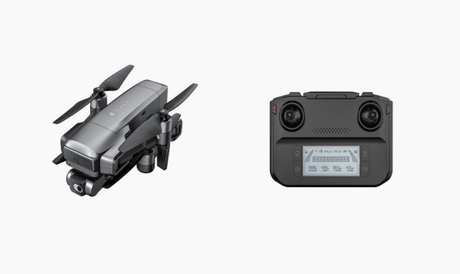

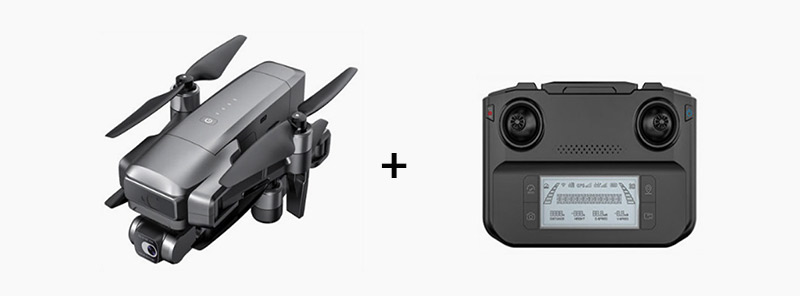

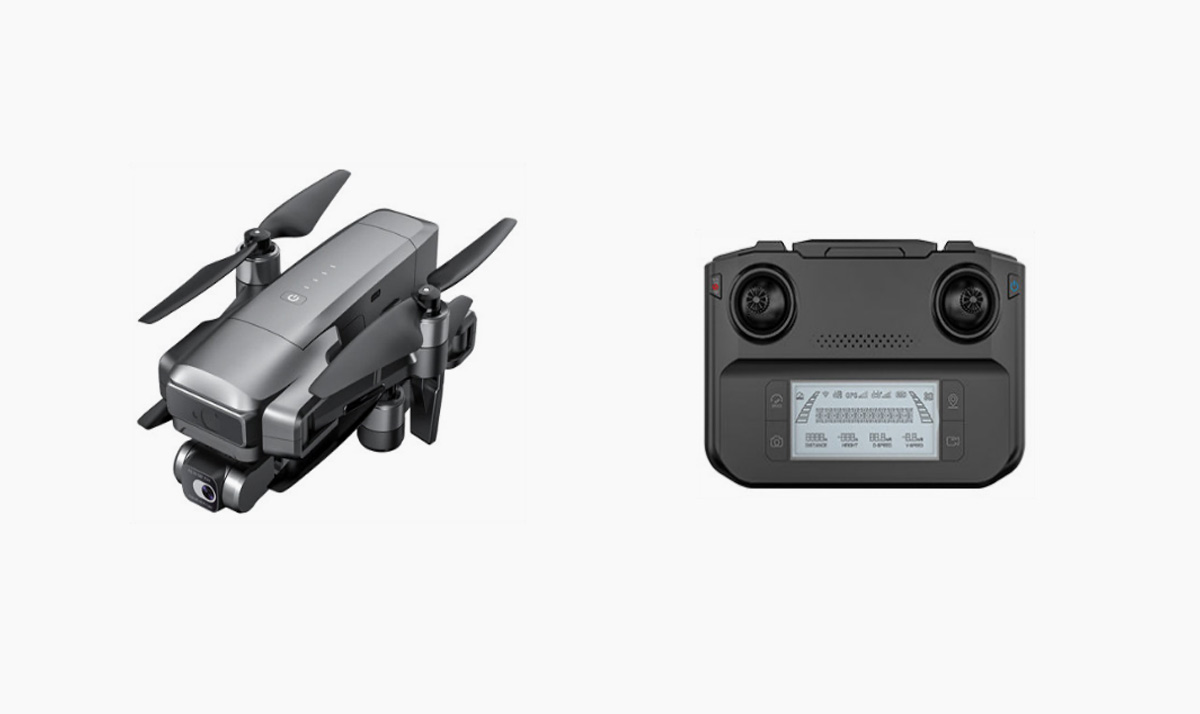

Ut postulant diu-range WiFi video transmissionem in toy drone foro continues crescere, excitatur ad praesens BL-M8197fh1 + BL-M8812CU2, A M8197FH1 + BL-M8812CU2, A M8197FH1, BL-M8812CU2, A MODULUS SOLUTIO. Maior commodum huius solution mendacium in facultatem ad sustinere angusta Sed 10mhz et libera a maximum potentia output superative 24dbm, permittens enim extenditur image transmissione distantiarum. Hoc solutio est compatible cum popularibus platforms ut Fuhang, allwinner, et Thesilicon.

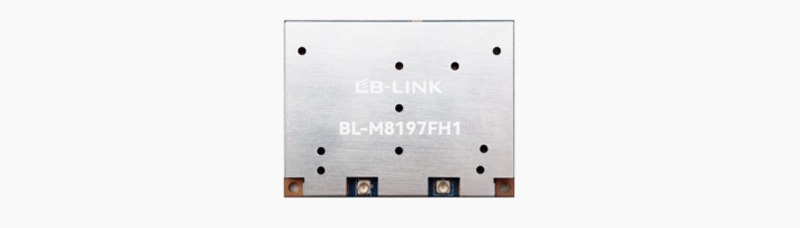

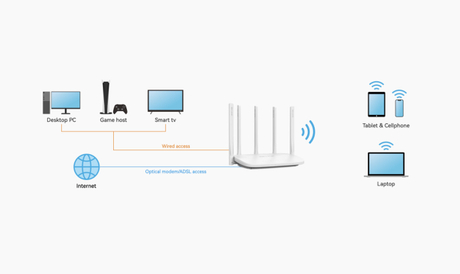

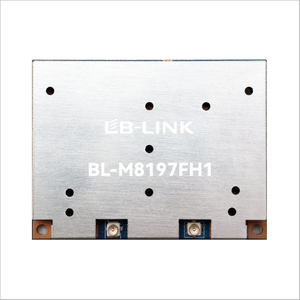

BL-m8197fh1 acts ut a Nullam fabrica, offering eximia processui virtutis et integrated Power Amplifier (PA) ut firmum wireless signum coverage. Eam uti 5g frequency cohortis STA mode ponte distant AP hotspots, cum 2.4G frequency cohortis operatur in ap modus providere hotspot ad wireless cogitationes ut laptops, Smartpones et tabulae. Hoc moduli est sustinet 5mhz / 10MHz angusta canales et excellens RF perficientur ad 5g WLAN communicatio per longius distantiis, Customized humilis TX potentia et summus gradu RX SCELLATIO communicationis.
Key Features:
◇ chipset: RTL8197fh + RTL8812fr
◇ Wireless Latin: IEEE 802.11A / B / G / N / AC, 2x2
◇ Frequency Band: 2.4GHz / 5GHz
◇ Bandwidth: 5mhz / 10mhz / 20mhz / 40mhz / 80mhz
◇ TRANSMISSIO Rate: 866.7MBPS + 300MBPS
◇ altum perficientur MIPS 24kc CPU Core ad 1000MHz celeritate
◇ Ram: 512MB DDR2
◇ ROM: 64MB spi nec Flash (Customization Capacity usque ad 256MB)
◇ Dimensions: 46.7x35.8mm

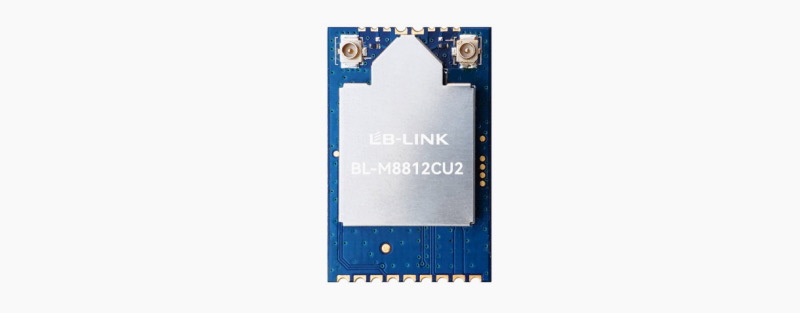

BL-M8812CU2 acts ut Client Fabrica, est suscipio integrated Power Amplifier (IPA) et provisiis firmum Wireless signum coverage range, enabling apotheco pro convenient remote machinam nexum apoptas. Etiam praebet ieiunium et fideles wireless nexum puncta.
Key Features:
◇ chipset: rtl8812cu
◇ Wireless Latin: IEEE 802.11A / B / G / N / AC, 2x2
◇ Frequency Band: 2.4GHz / 5GHz
◇ Bandwidth: 10mhz / 20mhz / 40mhz / 80mhz
◇ Transmissus rate: 866MBPS / 300Mbps
◇ interface: USB
◇ Dimensions: 31X20mm ◇ certificaciones: SRRC / FCC
Commendatur Module List for Drone:
No. |
Module Model |
I features |
II features |
1 |
BL, M8188FU3 |
◇ RTL8188ftV
◇ 802.11bgn, 1X1
◇ USB, 12.3x13mm
◇ distantiam> 0.8km |
|
2 |

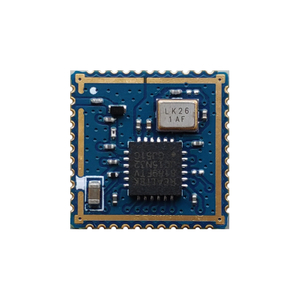

BL, M8189FS6 |
◇ rtl8189ftv
◇ 802.11bgn, 1X1
◇ SDIO, 12x12mm
◇ distantiam> 0.8km |
|
3 |
BL, m8733bu1 |
◇ Rtl8733Bu
◇ 802.11ABGN, 1X1
◇ BT5.2
◇ USB, 12.3x13mm
◇ sustinet 10mhz Adspexte BW ◇ sustinet dual antennas, cum bt antenna propter broadcasting et WiFi antenna pro data tradenda. Potest operari simul simul, magna enhancing perficientur
◇ procul> 1km |
|
4 |
BL, M8821CS1 |
◇ Rtl8821cs
◇ 802.11ABGN / AC, 1X1
◇ BT4.2
◇ SDIO, 12x12mm
◇ distantiam> 1km |
|
5 |
BL, M8822Cs1 |
◇ Rtl8822cs
◇ 802.11ABGN / AC, 2x2
◇ BT5.0
◇ SDIO, 13x15MM
◇ procul> 2km |
|
6 |
BL, M8812CU9 |
◇ rtl88812cu
◇ 802.11A / N / AC, 2x2
◇ USB, 20x31mm
◇ Thermal PRIXHUS Silicone
◇ sustinet FPC Contact
◇ 10MHz Adspectum BW
◇ Longius> 1.5km |
|
7 |

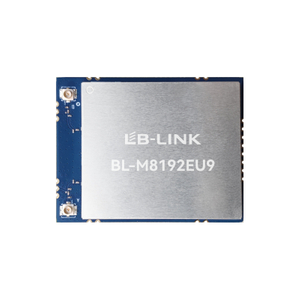

BL-m8192eu9 |
◇ rtl8192eu
◇ 802.11bgn, 1X1
◇ USB, 35x45mm
◇ EFEM / Thermal PROLIXUS PROMPTURA Silicone
◇ sustinet 10mhz anguste bw
◇ procul> 4km |
|
8 |
BL-m8812eu2 |
◇ rtl88812eu
◇ 802.11A / N / Ac.2x2
◇ USB, 32x32mm
◇ EFEM / Thermal PROLIXUS
PROMLECTORI ◇ sustinet 10mhz anguste bw
◇ procul> 5km |
|
9 |
8192fu3 + 8192fs1
drone modulus set |
8192FU3 【Drone (AP)】 80
; ◇ Rtl8192fc
◇ 802.11bgn, 2x2
◇ USB, 15x22.5mm
◇ sustinet 10mhz anguste bw
◇
◇ spatium> 4.5km |
8192fs1 【Client (STA)】:
◇ RTL8192FS
◇ 802.11BGN, 2x2
◇ SDIO, 12x12mm
◇ sustinet 10mhz Adspectum Pressure BW |
10 |
8812CU2 + 8197fh1
drone modulus set |
8812CU2 【drone (AP)】 802121Bgn
Rtl88812Cu
◇ 802.11ABGN / AC, 2x2
◇ USB, 20x31mm
◇ thermal PROMPTURA Silicone
◇ subsidia 10mhz anguste bw ◇
antennae
◇ spatio> 6km |
8197FH1 【Client (Repeater)】
◇ RTL8197fh RTL8812fr
◇ 802.11ABGN / AC, 2x2
◇ 46.7 * 35.8mm
◇ Thermal PRIX2
◇ Sustulest 10mhz Adspuctase BW |
