Dolor 5G Wi-FI OMNIBUS cum Dual Core et Wireless Longinquus Imperium
Introductio

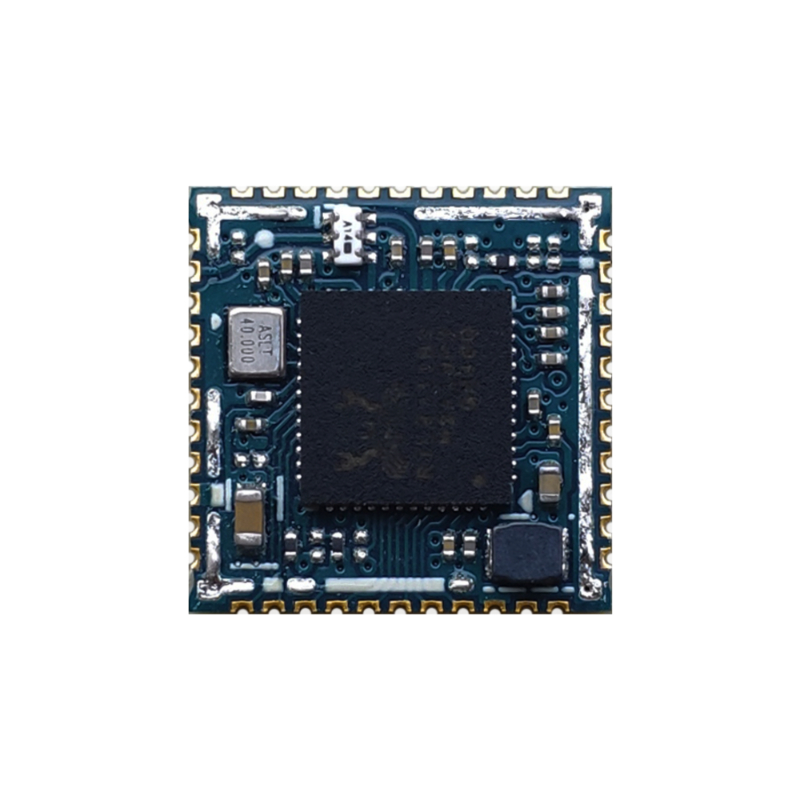

BL-M8731BS1-Q est valde integrata bandae WLAN duplicis basi moduli in RTL8731BS-VQ-CG, quae WLAN MAC, 1T1R Baseband et radiophonicam in uno chip iungit. IEEE 802.11a/b/g/n vexillum et maximum PHY rate usque ad 72.2Mbps stare potest. Modulus WLAN praestantia perficiendi et sumptus inferioris specimen praebet pro applicationibus retis wireless ut pixides summae, OTT pyxides, projectores.
Features
Frequentiae operans: 2.4~2.4835GHz vel 5.15~5.85 GHz
Host Interface: SDIO 2.0 pro WLAN
IEEE Standard: IEEE 802.11a/b/g/n
Wireless PHY rate attingere potest usque ad 72.2Mbps
Potestas Supple: 3.3V potestas principalis et 1.8V/3.3VI/O potestas

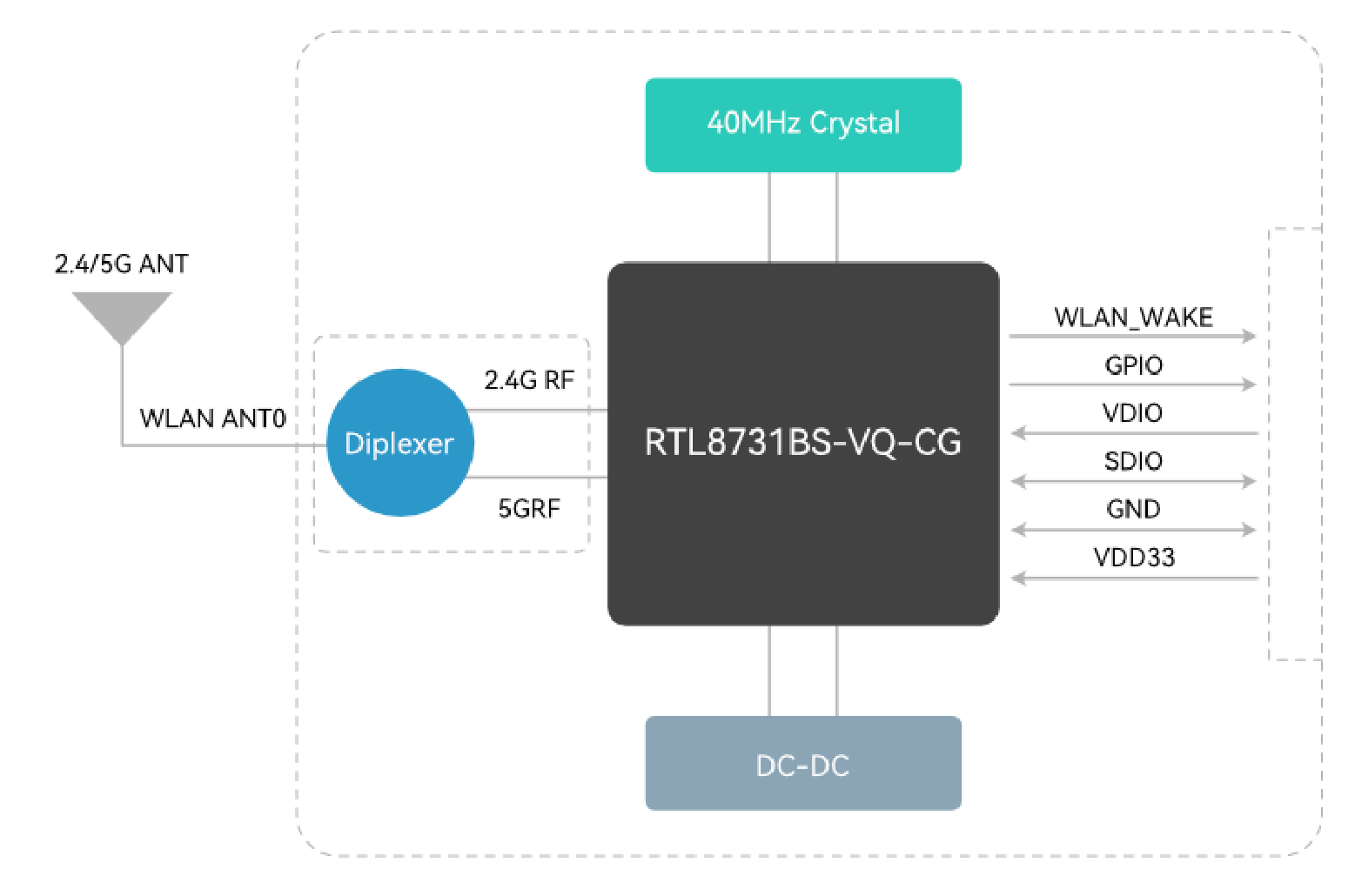

Obstructionum Diagram
![2024-06-13 144433]()
Specificationes generales
OMNIBUS Nomen |
BL-M8731BS1-Q |
Chipset |
RTL8731BS-VQ-CG |
WLAN Signa |
IEEE802.11 a/b/g/n |
Hospes Interface |
SDIO 2.0 pro WLAN |
Antenna |
coniungere Antennae externae per medium foramen |
Dimension |
12.0* 12.0*1.90mm (L*W*H) |
Potestas Supple |
DC 3.3V±0.2V @ 800 mA ( Max) DC 3.3V±0.2V vel 1.8V±0.1V I/O copia |
Operatio Temperature |
-20℃ ad +70℃ |
operatio Umor |
X% ad XCV% RH (Non-Condensing) |

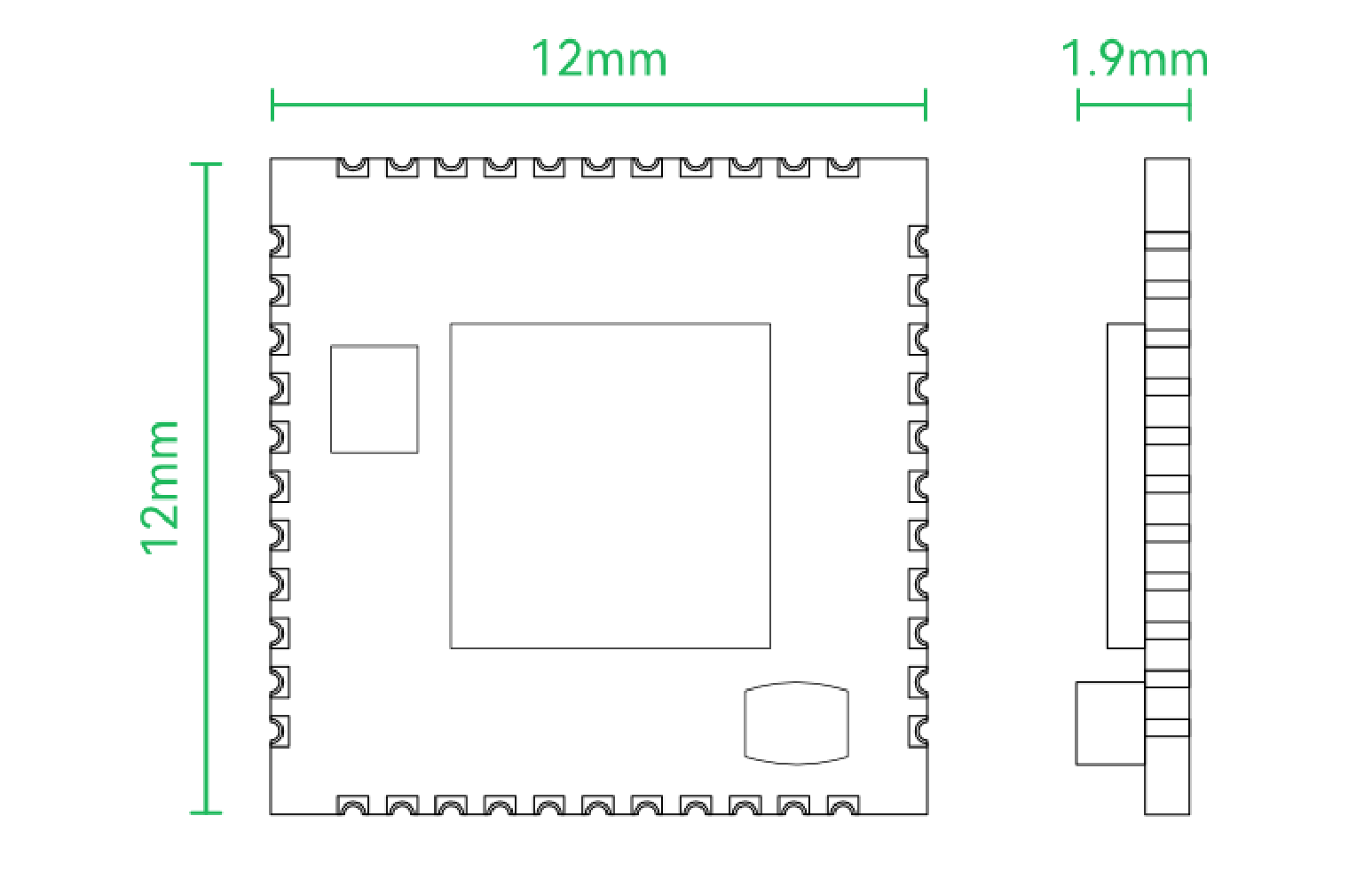

Product Dimension
![2024-06-13 144453]()
Module dimensio: 12.0*12.0*1.90mm (L*W*H; Tolerantia: ±0.15mm)

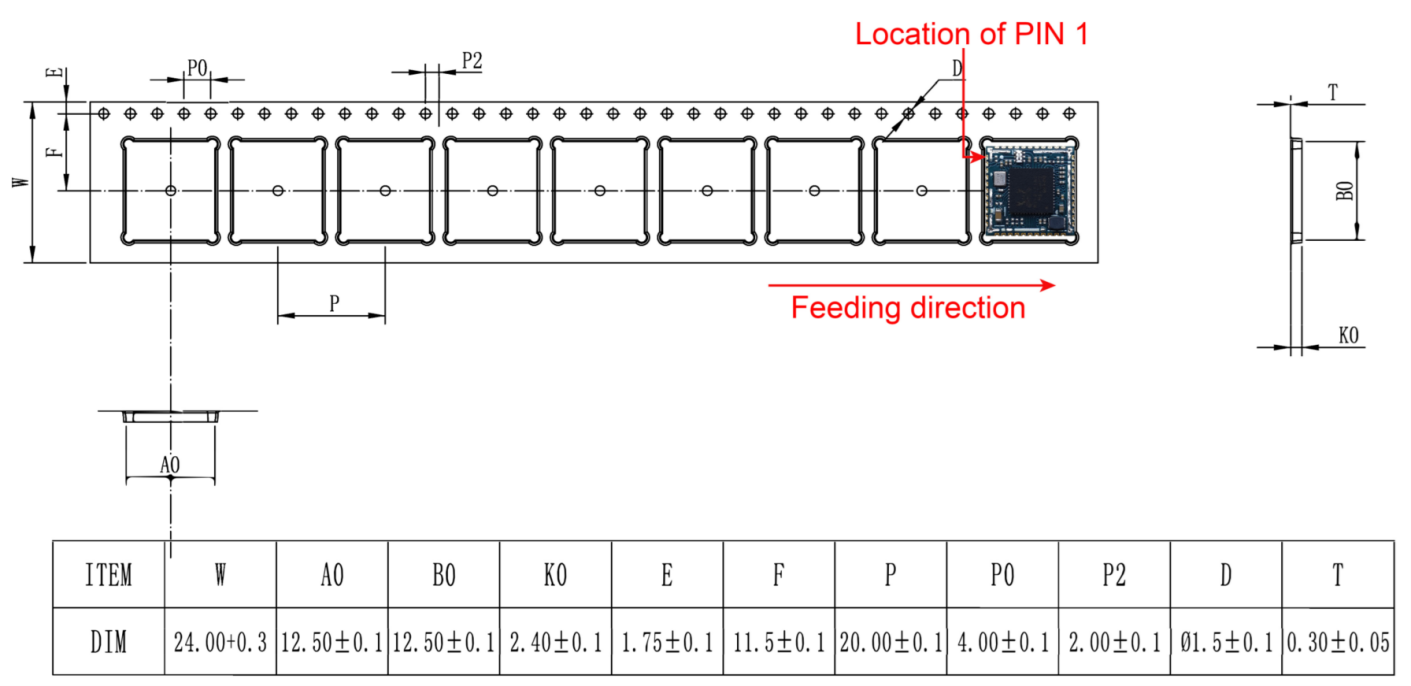

Sarcina Dimensiones
![1]()
![2]()

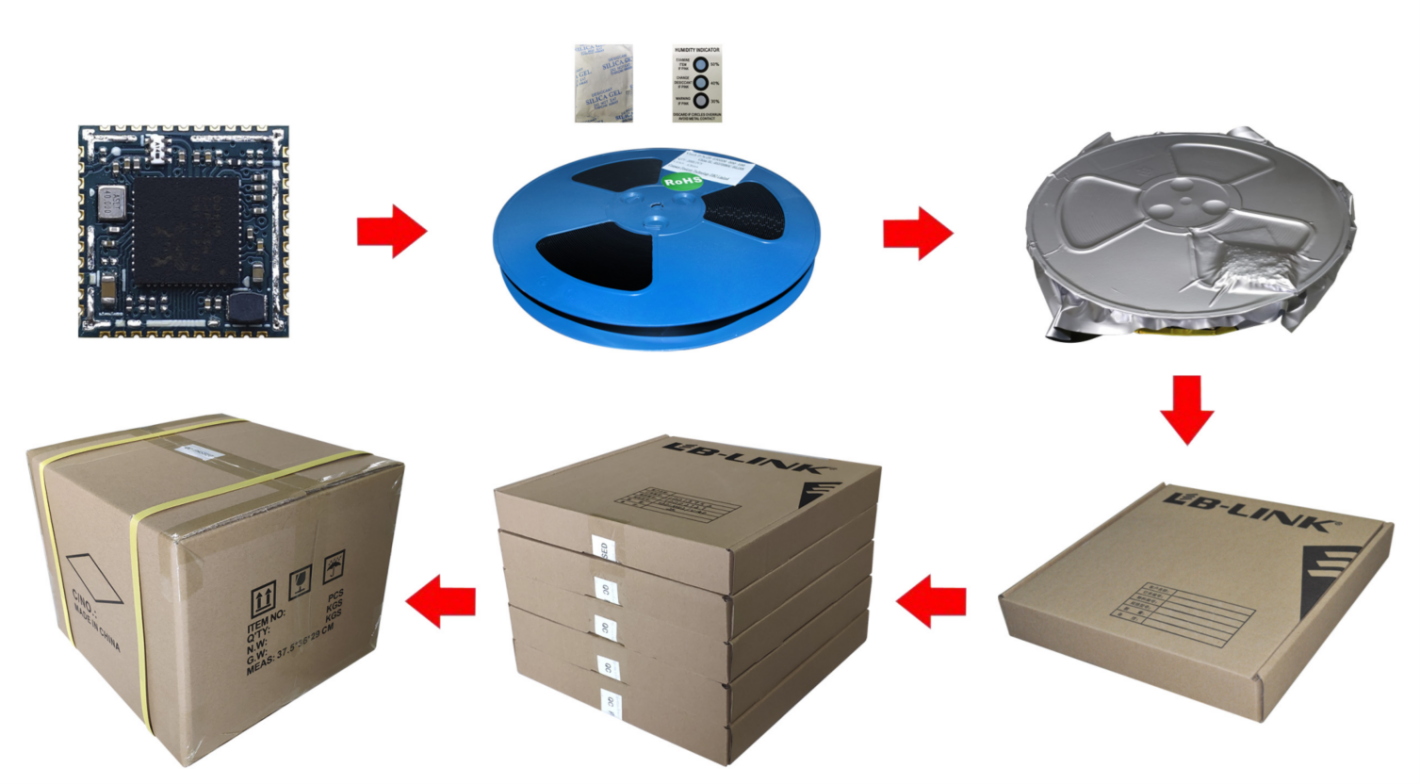

Specificatio sarcina:
1. 1,000 modulorum per roll et 5,000 modulorum in arca.
2. Arca exterioris magnitudinis: 37.5*36*29cm.
3. Diameter caerulei ambitus amicae Flexilis laminae est 13 digitorum, cum tota crassitudine 28mm
(cum latitudine 24mm balteum gerens).
4. Pone 1 sarcinam agentis aridae (20g) et humiditatis chartae in singulis sacculi anti-staticis vacuo.
5. Quisque lobortis cum 5 scriniis refertum est.
