Kupu Whakataki

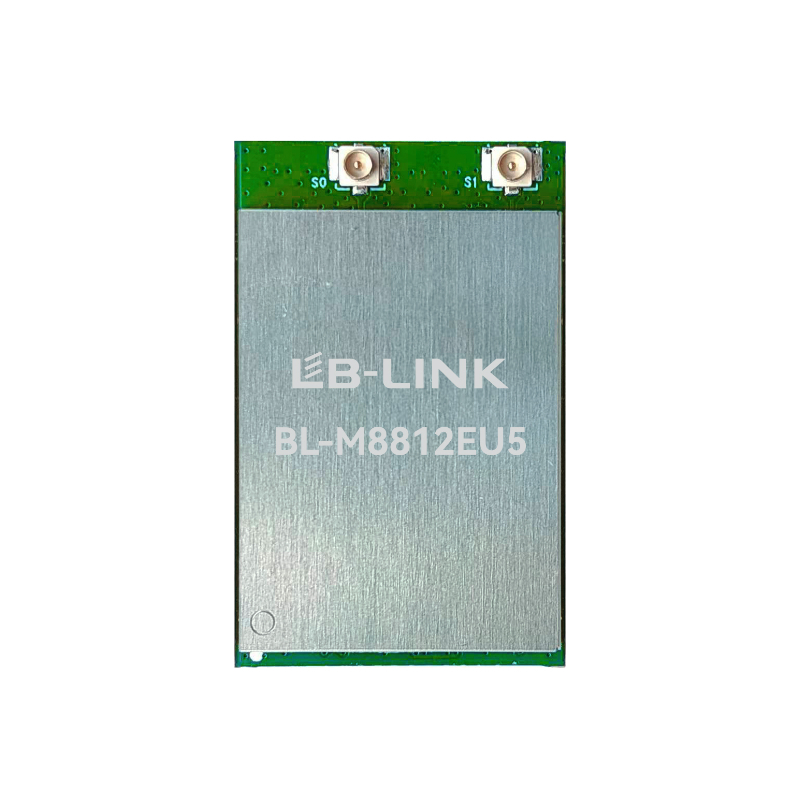

Ko te BL-M8812EU5 he waahanga ahokore 2.4G kotahi te roopu kotahi, e hono ana i te atanga USB, te WLAN MAC, te 2T2R me te Reo Irirangi. Kua hangaia e te kōwae te mana nui o te FEM me te RF Filters, e tautoko ana hoki i nga waahana whaiti 10MHz ki te whakatutuki i te kaha ake o te TX Power & pai ake te RX sensitivity, tino whakawhānui i te tawhiti whakawhitiwhiti WLAN, he pai mo nga tono whakawhiti ataata ahokore-roa penei i te kamera IP me te UAV.
Ngā āhuatanga
Auautanga Mahi: 2.4~2.4835GHz
Paerewa IEEE: IEEE 802.11b/g/n
Tautokohia te aratau 2T2R me te bandwidth 10/20/40MHz, ka eke te reiti PHY ki te 300Mbps
Tūhono ki ngā pūihi waho mā te tūhono IPEX-1/MHF-1
Atanga Kaihautū he USB 2.0
DC 5.0V me te 3.3V Ruarua Mana Whakahaere

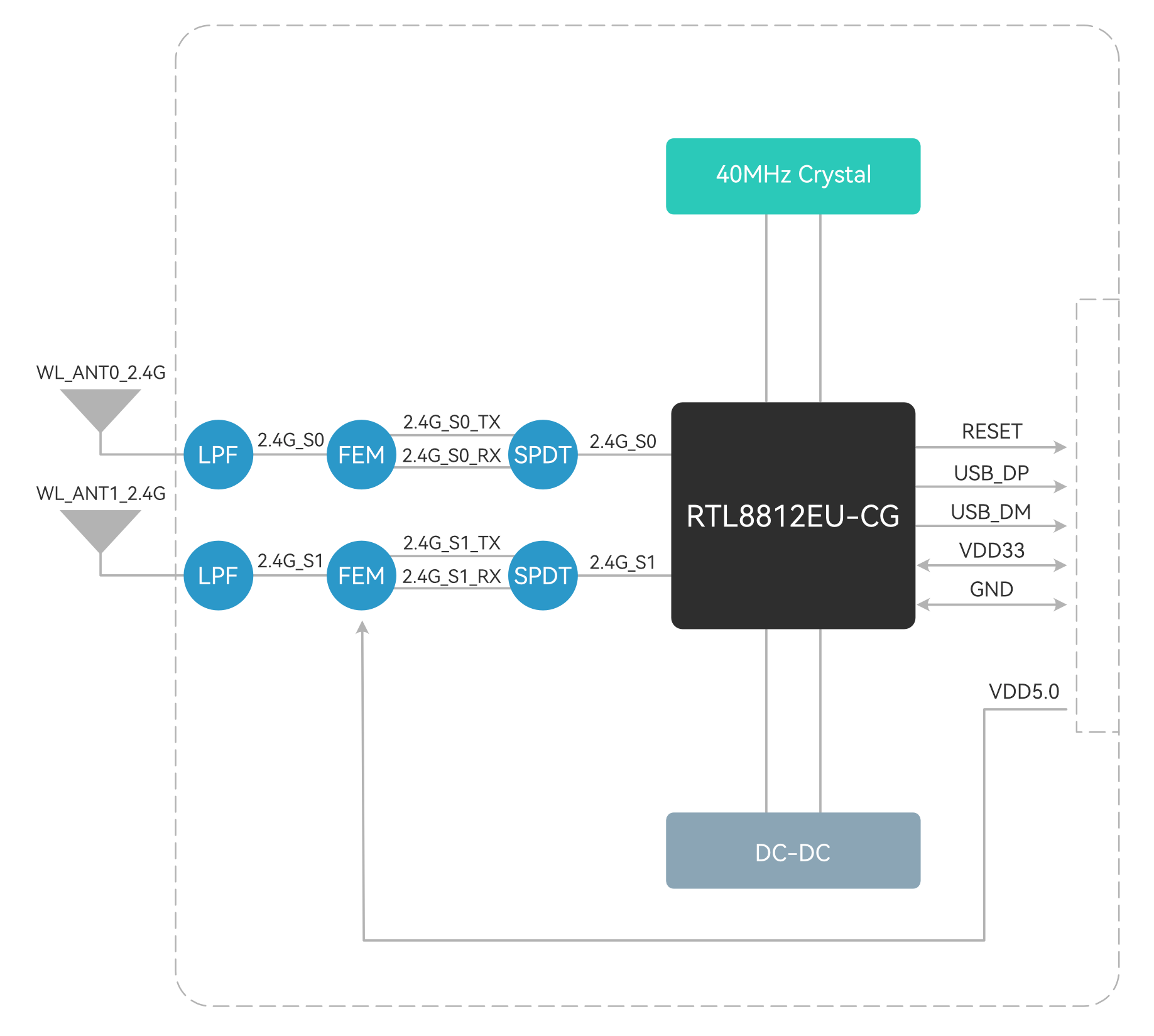

Hoahoa Poraka
![屏幕截图 2025-12-30 144544]()
Whakatakotoranga Whānui
Ingoa Kōwae |
BL-M8812EU5 |
Paerewa WLAN |
IEEE 802.11 b/g/n |
Atanga Kaihautū |
USB 2.0 |
Antenna |
Tūhono ki ngā pūihi waho mā te tūhono IPEX-1/MHF-1 |
Ahu |
35*22*3.3mm (L*W*H) |
Tuku Hiko |
DC 5.0V±0.3V@2000mA (Mōrahi) DC 3.3V±0.2V@800mA (Mōrahi) |
Te Mahinga Mahi |
-20 ℃ ki te +70 ℃ |
Mahi haumākū |
10% ki te 95% RH (Kore-Condensing) |

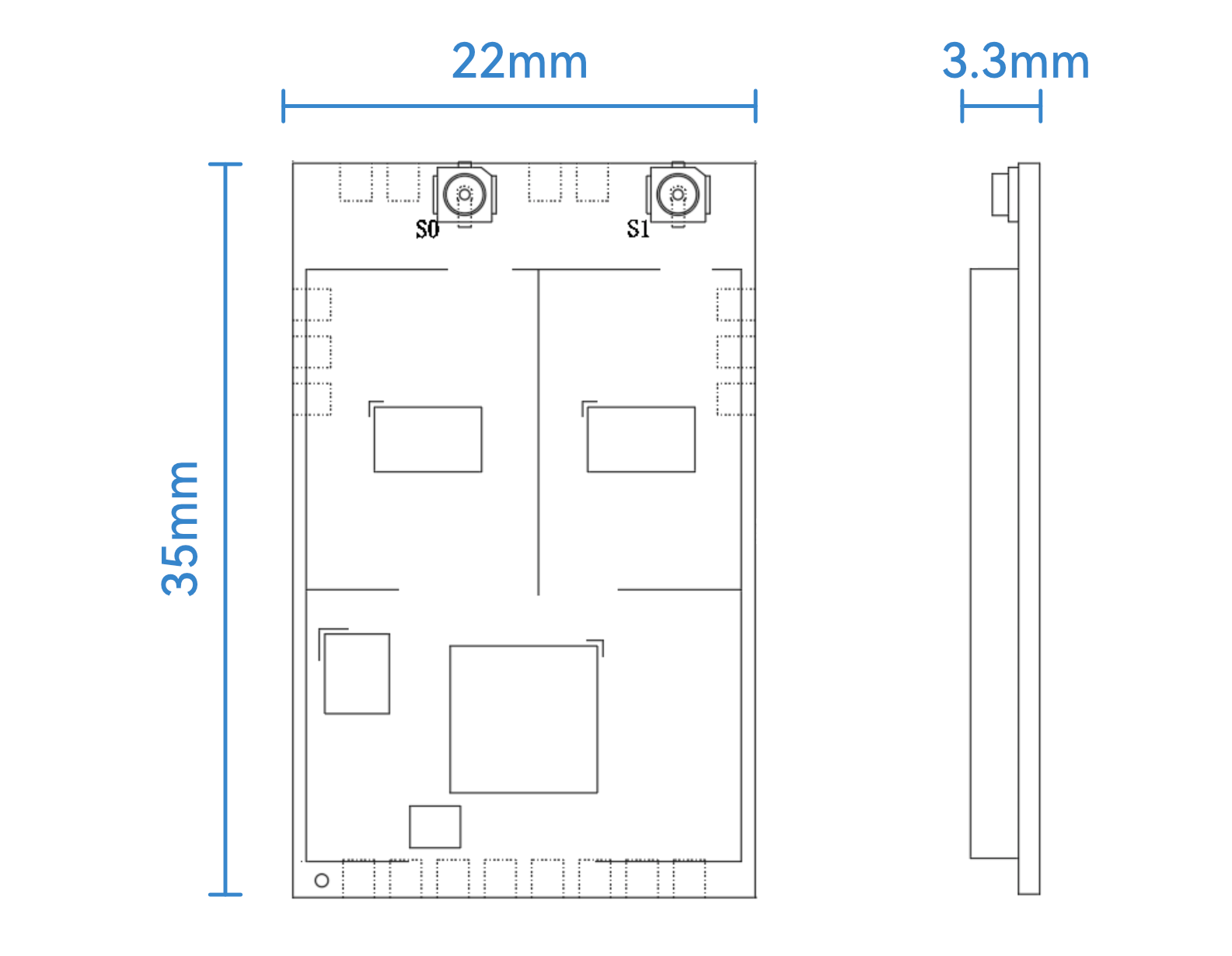

Hunga Hua
![屏幕截图 2025-12-30 144559]()

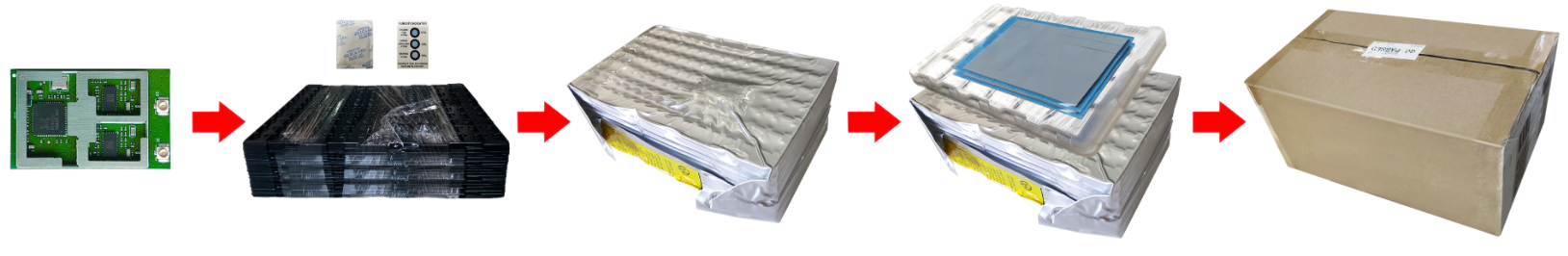

Ahu mōkihi
![1]()
Whakatakotoranga mōkī:
1. 42 kōwae mo ia pereti namunamu, me te 462 kōwae, 462 hipoki whakangungu rakau, 924 waiariki papa silicone conductive ia pouaka.
2. Ka herea te opupu ki te waea waea ka maka ki roto i te putea korehau anti-pateko.
3. Kuhua 1 peke pirepire maroke (20g) me te 1 kaari haumuku toru ira ki ia peeke korehau pateko.
4. Ko te rahi o te pouaka o waho ko 35.2 * 21.5 * 15.5cm.
