BL-M7925BP1：Tri-Band 802.11be (Wi-Fi 7) + Bluetooth 5.4 Wireless Connectivity Solution

Enterprise‑Grade M.2 Module for OEM/ODM & Industrial Integration

For engineers, product architects, and OEM/ODM decision‑makers, next‑generation wireless performance cannot be an afterthought—it must be designed in. Legacy Wi‑Fi 5/6 modules, limited dual‑band coverage, complex integration, and inconsistent Bluetooth coexistence continue to delay product certification, inflate BOM costs, and weaken competitive positioning in global markets.

The BL‑M7925BP1 from LB‑LINK is a fully integrated, tri‑band wireless combo module engineered to resolve these challenges at the system level. Built on the MediaTek MT7925BEN chipset in a compact M.2 2230 form factor, it delivers Wi‑Fi 7 (802.11be) + Bluetooth 5.4 in a single, certifiable, production‑ready design. This is not just a component upgrade—it is a complete connectivity solution for high‑performance smart devices.

Solution Overview

BL‑M7925BP1 unifies tri‑band WLAN and dual‑mode Bluetooth into a standard M.2 2230 Key E module, with dedicated PCIe v2.1 for WLAN and USB 2.0 for Bluetooth. It supports 2.4 GHz / 5 GHz / 6 GHz bands, 2T2R MIMO, and channel widths up to 160 MHz, delivering a PHY rate up to 2882 Mbps while maintaining robust coexistence and industrial‑grade stability.

This solution is optimized for rapid integration, global certification, and mass production—so your engineering team can focus on product differentiation, not wireless fundamentals.

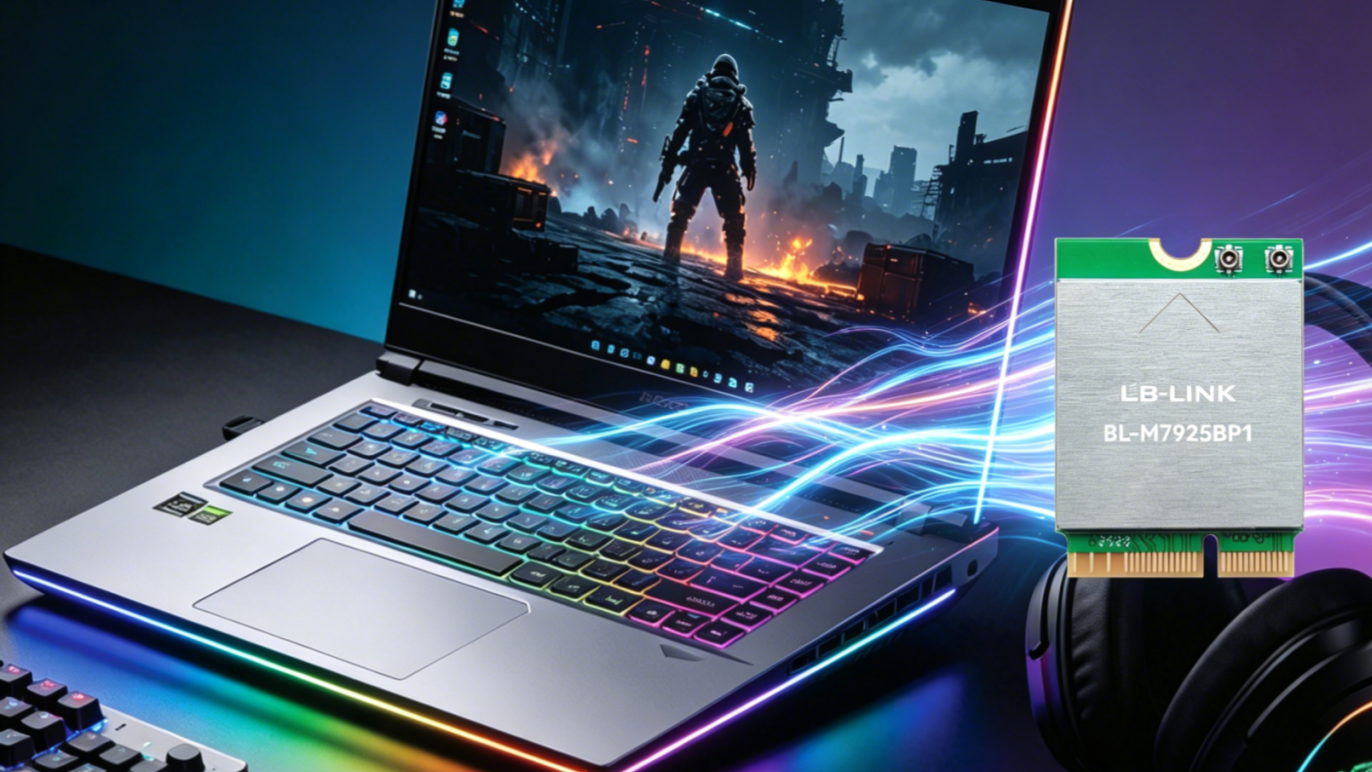

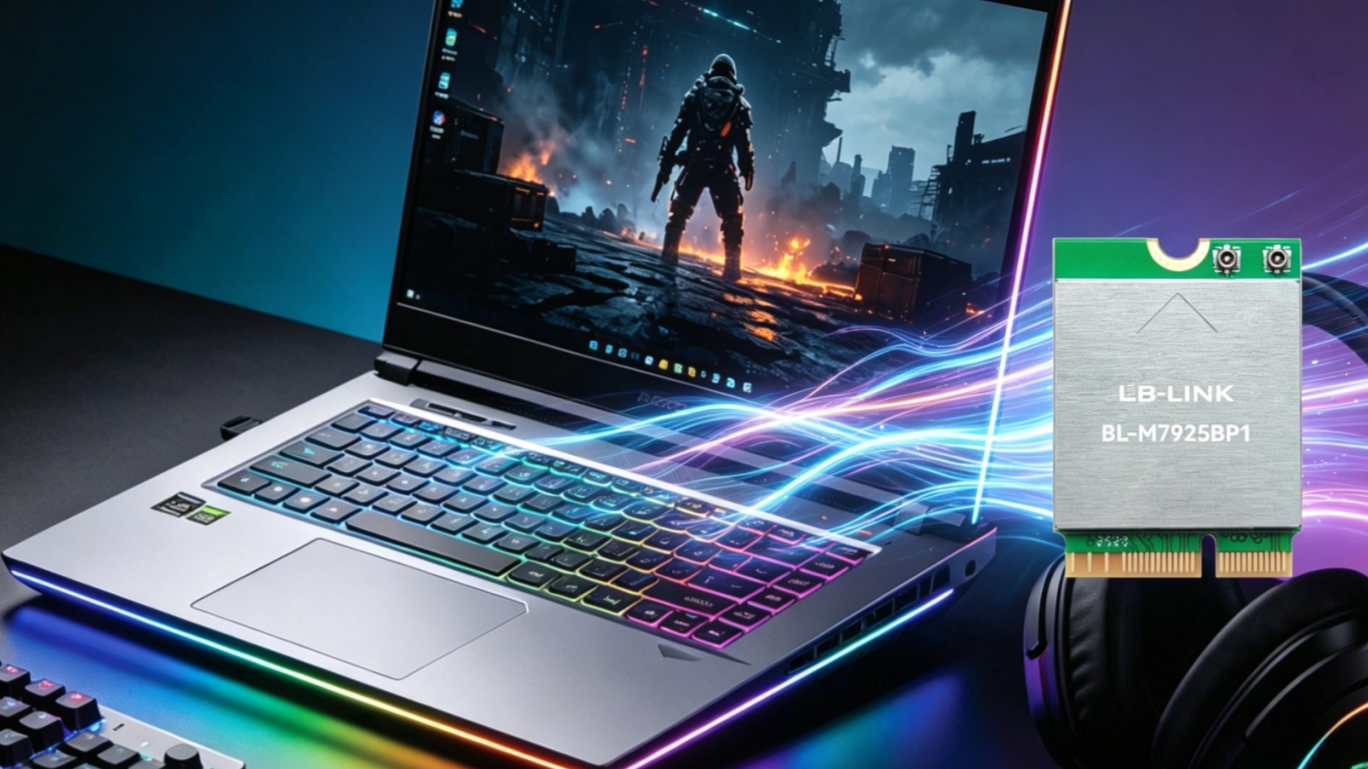

BL-M7925BP1: Designed for High‑Performance Devices

The compact M.2 form factor fits seamlessly into gaming laptops, industrial terminals, and smart devices, enabling low‑latency Wi‑Fi 7 and reliable Bluetooth 5.4 connectivity out of the box.

Key Technical Advantages

High‑Performance Tri‑Band Wi‑Fi 7

• Supports 802.11a/b/g/n/ac/ax/be (Wi‑Fi 7 ready)

• 2.4 GHz + 5 GHz + 6 GHz tri‑band coverage for reduced interference

• 2T2R MIMO with 20/40/80/160 MHz channel support

• PHY rate up to 2882 Mbps for 4K/8K streaming, cloud, and IoT backhaul

• Optimized OFDMA & low‑latency performance for real‑time applications

Robust Bluetooth 5.4 Dual‑Mode

• Bluetooth 5.4 (backward compatible with v4.2 / v2.1)

• BR/EDR + BLE dual‑mode concurrent operation

• Up to 7 classic Bluetooth links + 16 BLE connections

• Enhanced audio, remote control, and sensor connectivity

• Improved power efficiency for portable and battery‑powered designs

Industrial Reliability & Ease of Integration

• Operating temperature: ‑20 °C to +70 °C

• Standard M.2 2230 Key E (30.0×22.0×2.48 mm)

• WLAN: PCIe v2.1 | Bluetooth: USB 2.0

• Antenna interface: MHF4 / IPEX4

• ESD protection up to 2 kV (HBM)

• FCC, CE, KC, CMIIT, ANATEL, PTA certified

Production‑Ready Design

• Mature driver support & reference schematics

• Stable supply chain with qualified alternate components

• Anti‑static ESD packaging for manufacturing

• Minimized thermal design overhead

Target Deployment Scenarios

Thin & Light Laptops / Mobile Computing

Upgrade to tri‑band Wi‑Fi 7 for faster throughput, lower latency, and smoother multitasking. Bluetooth 5.4 ensures stable peripherals and audio in compact form factors.

Smart TVs / Set‑Top Boxes (STB)

Deliver interruption‑free 8K streaming, multi‑screen casting, and low‑lag interactive services. Tri‑band architecture eliminates congestion in dense home environments.

Industrial IoT Gateways & Intelligent Terminals

Wide temperature tolerance and stable RF performance support 24/7 operation in factory, outdoor, and embedded environments. Multi‑link BLE simplifies sensor network integration.

Portable & Battery‑Powered Devices

Balanced performance and power efficiency ideal for handheld terminals, medical devices, robotics, and mobile smart equipment.

Why Engineers Spec BL‑M7925BP1

• Future‑proof: Wi‑Fi 7 capable, supporting next‑gen infrastructure

• Lowest integration risk: Standard M.2 + PCIe/USB, plug‑and‑play compatible

• Certification‑ready: global regulatory compliance reduces time‑to‑market

• System‑level optimization: WLAN/BT coexistence tuned for real‑world environments

• Mass production stable: validated supply chain and consistent quality

Next Steps

BL‑M7925BP1 is a complete, production‑grade wireless solution designed for engineers who demand performance, reliability, and speed. We provide full technical support, reference designs, samples, and customization for OEM/ODM projects.

To request specifications, evaluate samples, or discuss your integration needs:
