Can’t Access The LB‑LINK Router Admin Page (192.168.1.1 / 192.168.16.1)

If you cannot load your LB‑LINK router admin setup page, this issue is usually caused by poor network connection, incorrect gateway IP, browser cache problems, wrong cable wiring or IP segment mismatch. You cannot access router settings over cellular/mobile data or across different IP network segments. This guide works for all LB‑LINK wireless routers and covers Windows, Android and iOS devices.

You can also view our [Router Admin Login Troubleshooting Video] for visual guidance.

Common Causes

• Wrong router admin gateway IP address

• Poor WiFi or Ethernet connection to the router

• Mobile cellular data still enabled on your phone

• Browser cache, cookies or browser‑related conflicts

• Incorrect port wiring (WAN / LAN port mix‑up)

• IP network‑segment mismatch between your device and router

• Network adapter misconfiguration

Basic Pre‑Checks (Complete these first)

1. Make sure your device connects directly to your LB‑LINK router

For wired computer connection

1. Plug your computer Ethernet cable into one of the router LAN ports.

2. Check that the corresponding LAN port LED light is lit or blinking, which indicates an active connection.

For mobile phone (Wi‑Fi connection)

1. Turn off mobile / cellular data completely — this is critical. Active mobile data will break router‑panel access.

2. Connect your phone to the default Wi‑Fi name printed on the label at the bottom of your router.

3. The default Wi‑Fi password is also printed on this label. If no password is listed, the default Wi‑Fi is open and unsecured.

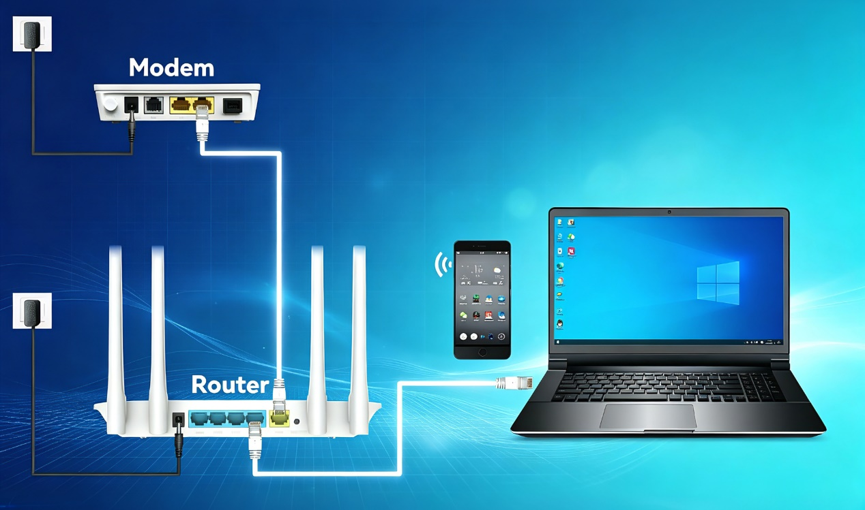

2. Check your router cable wiring

• The incoming internet cable from your modem (or upper‑level router) must plug into the router’s WAN port.

• Your PC or local devices should only connect to LAN ports.

• Unplug extra unused LAN cables to avoid IP conflicts and network interference.

Fix Browser Cache & Loading Errors

Out‑of‑date browser cache, leftover cookies, and abnormal private‑mode behaviour often result in login‑page failures or incorrect redirects.

Clear browser cache on Android mobile browsers

1. Open your device’s default web browser.

2. Navigate to Settings > Bookmarks / History.

3. Open Browsing History, choose Select All, then clear all browsing data.

4. Fully close and restart your browser app.

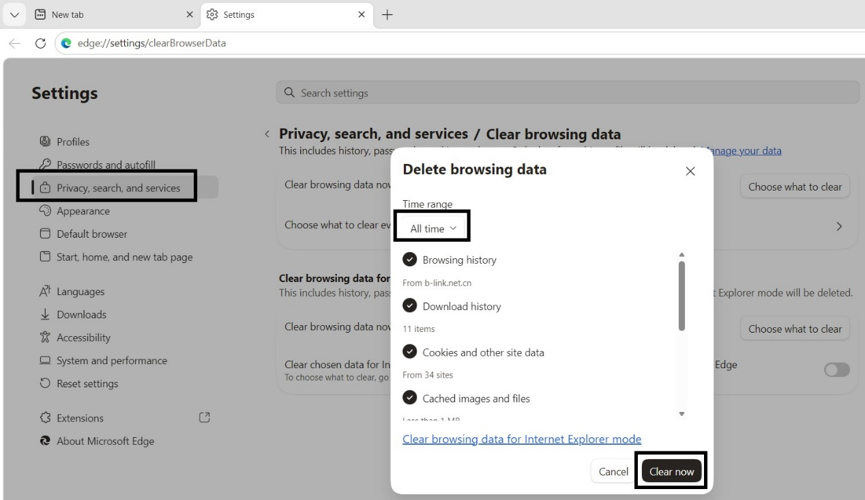

Clear browser cache for Windows Edge (Windows 10 / 11)

1. Open Microsoft Edge. Go to Settings > Privacy, search, and services.

2. Select Clear browsing data.

3. Set time range to All time. Tick browsing history, download history, cookies and cached image files.

4. Click Clear now. Close all browser windows and fully restart Edge.

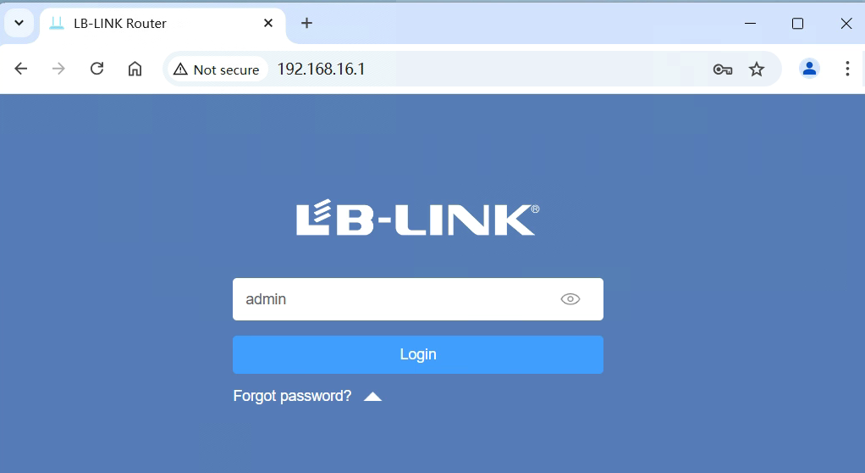

How to Log Into the LB‑LINK Router Admin Panel

1. Finish the connection checks and browser cleanup above. Open any web browser.

2. Type the gateway IP directly into the browser address bar — do NOT search the IP inside the search box.

Default LB‑LINK router gateway addresses:

• 192.168.16.1

• 192.168.1.1 ✅ Always confirm against the printed label located on the bottom of your physical router. This label is the final authority for your model’s login IP and credentials.

3. Enter your admin login password. The default admin password is printed on the router label, most commonly admin.

Important note: If you previously changed and forgot your admin login password, you need to perform a factory reset on the router.

Advanced Troubleshooting — If the admin page still will not load

1. Double‑check your active network connection

   1. Mobile: Go to Wi‑Fi settings and verify you are connected to your LB‑LINK router’s correct Wi‑Fi SSID.

   2. PC: Keep only one active LAN cable connected to your computer. Confirm the LAN port LED light is on or blinking.

2. Verify your device matches the router’s IP network segment

Rule: Your device’s local IP must sit within the same subnet as your router gateway.

• Gateway 192.168.16.1 → Your device IP should look like 192.168.16.X

• Gateway 192.168.1.1 → Your device IP should look like 192.168.1.X

How to check your IP information:

• Mobile: Wi‑Fi settings > connected Wi‑Fi network > view detailed IP information.

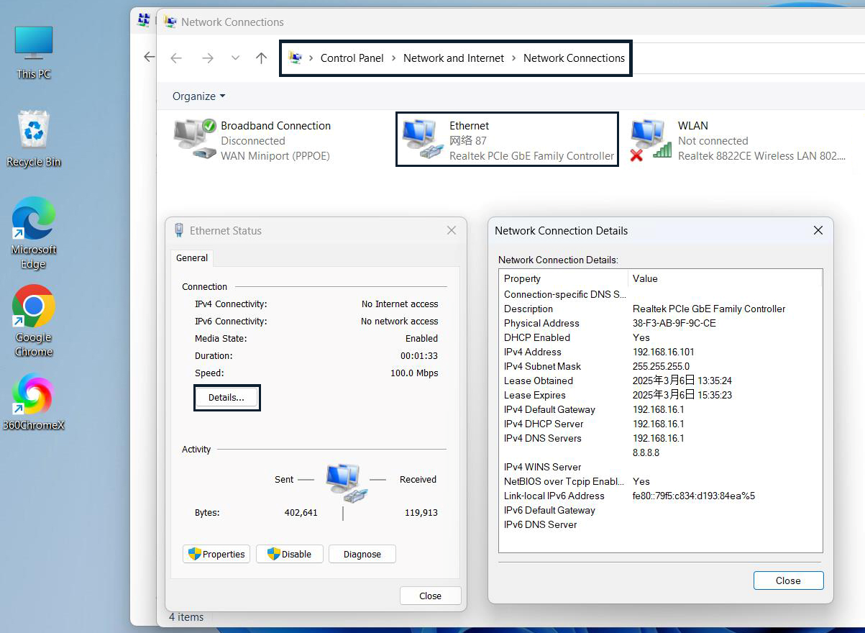

• Windows PC: Control Panel > Network and Internet > Change adapter options > Ethernet > Details. Check IPv4 Address and IPv4 Default Gateway values.

3. Fully close and restart your web browser, killing background browser processes. Re‑type the router gateway IP into the address bar.

4. Re‑confirm mobile cellular data is disabled on phones used for router setup. Cellular data can override local Wi‑Fi and cause login failures.

5. Try an alternative browser or another device. Use mainstream browsers such as Chrome or Firefox. Avoid heavily modified third‑party browsers. Test login with a spare phone or laptop to rule out single‑device network issues.

6. Factory Reset (final resolution step) If none of the above steps work, reset your router back to factory defaults to resolve persistent IP‑segment conflicts and misconfigured settings.

• Locate the physical RESET button or small RST/WPS pinhole on your router.

• Press and hold the reset button for 5‑10 seconds. Release once router lights flash and the unit restarts.

• After reset completes, log in using the default IP and password printed on your router bottom label.
