In industrial drones, security surveillance, special robots, IoT devices and other scenarios, the four-dimensional conflict among transmission distance, bandwidth, stability and size has long been the core pain point of the industry, especially for enterprises seeking high-performance industrial 5G WiFi module solutions.
Long-distance transmission requires sacrificing size and portability;
High-speed bandwidth struggles in complex environments such as high temperature and electromagnetic interference;
Compact devices are limited by weak signals and frequent disconnections.

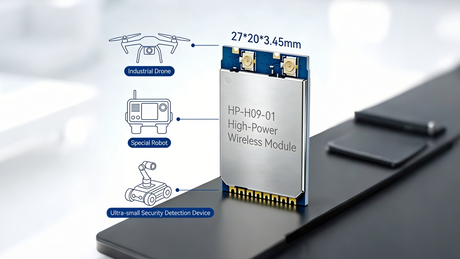

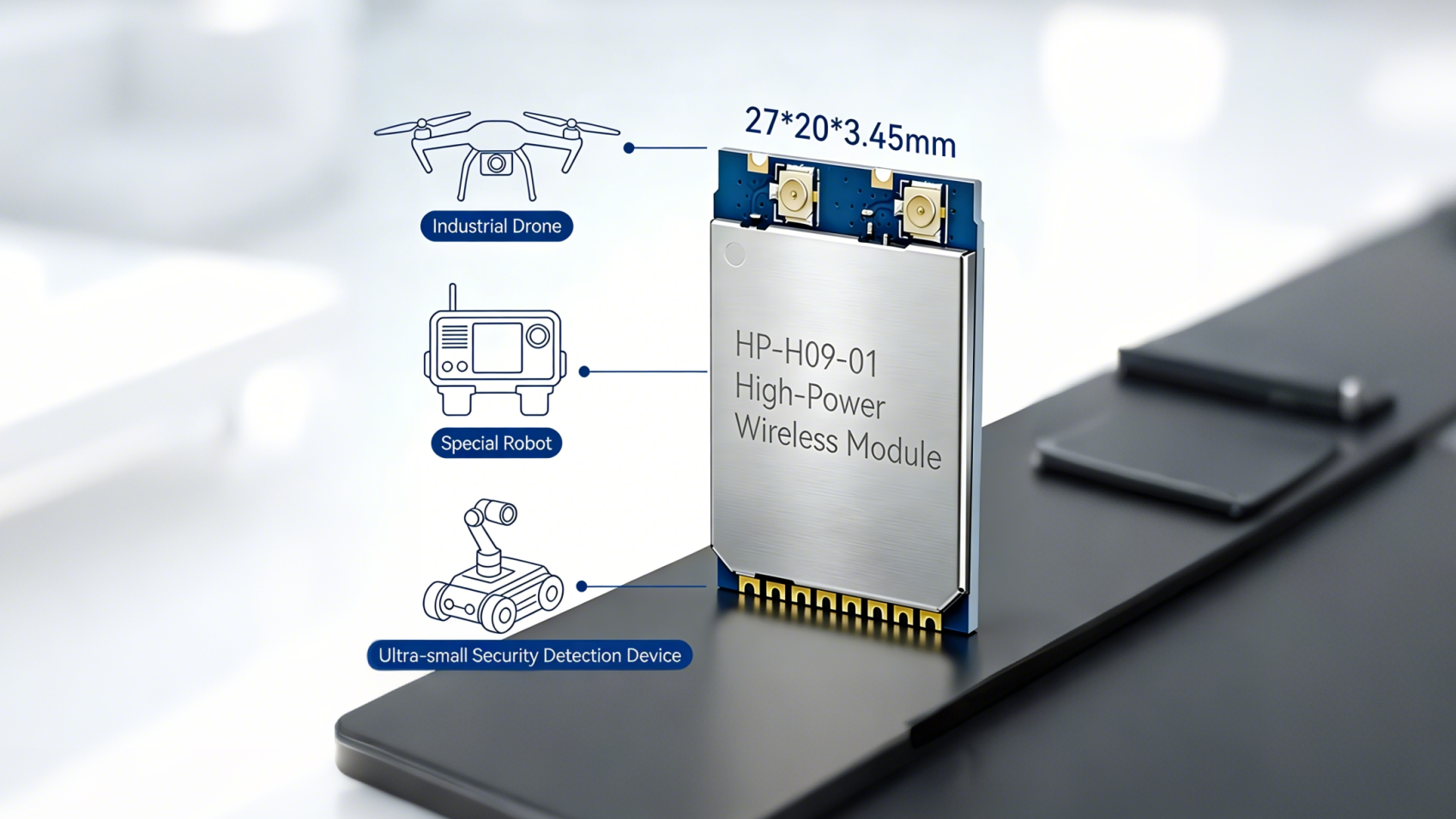

Launched by LB-Link, the HP-H09-01 high-power 5G wireless module delivers an all-in-one performance: ultra-compact size (27×20 ×3.45mm) + super-strong 29dBm transmission + 867Mbps ultra-fast bandwidth + industrial-grade wide-temperature stability. It completely breaks industry constraints and becomes the one-stop optimal solution for long-distance industrial wireless transmission, empowering every device with flagship wireless communication capabilities.
1. Ultimate Performance: A Wireless Powerhouse Built for Industrial Scenarios
HP-H09-01 is not an ordinary consumer-grade WiFi module, but a professional industrial 5G WiFi module solution deeply tailored for industrial needs, with every parameter targeting industry pain points.
Ultra-Long Distance Transmission: 29dBm High Power for Stable Kilometer-Level Connectivity
Built-in high-power FEM front-end with a maximum transmit power of 29dBm and superior receiving sensitivity of -95dBm ensures stable kilometer-level transmission even in obstructed and weak-signal environments. It perfectly solves problems like short range and frequent disconnections in drone video transmission, outdoor security and industrial monitoring. Supporting 10MHz narrow-bandwidth channels, it further extends communication distance for ultra-long-range operations.
Ultra-Fast Bandwidth: 867Mbps 5G High Speed for Smooth 4K Video Transmission
Compliant with IEEE 802.11a/n/ac protocols, it covers the full 5G ISM band (5.15~5.85GHz). With a 2T2R MIMO architecture and VHT80 bandwidth, the physical layer rate reaches up to 867Mbps. The 5G band provides strong anti-interference performance, supporting real-time 4K HD video return and high-speed industrial data transmission for lag-free and low-latency drone aerial photography, security monitoring and robot remote control.
Ultra-Compact Size: 27×20×3.45mm for Space-Sensitive Applications
At only 27×20×3.45mm, the SMT module is smaller than a one-yuan coin. It fits perfectly into space-critical devices such as industrial drones, special robots and ultra-small security detection equipment without compromising structural design, enabling powerful wireless performance in a tiny form factor.
Industrial-Grade Stability: Reliable Performance in Extreme Environments
Engineered to industrial standards across electrical, RF, mechanical and thermal aspects, it operates reliably in a wide temperature range of -20℃ to +70℃ for outdoor and industrial sites. Equipped with thermal silicone pad and heat sink, the chip junction temperature is controlled below 125℃ for stable high-power full-load operation. With 2KV (HBM) ESD protection, it features anti-static and anti-interference capabilities, high mass-production yield and long-term trouble-free performance.
Easy Integration: USB 2.0 Plug-and-Play, Halving Development Cycle
USB 2.0 plug-and-play interface, single 5V DC power supply and IPEX antenna port for external high-gain antennas eliminate complex wiring and hardware modifications, cutting hardware development time by 50% for fast wireless upgrades. It supports reflow soldering (peak temperature 250℃) and is fully compatible with SMT automated production lines for seamless mass manufacturing.
2. Full-Scenario Solutions: Covering All Industrial Wireless Transmission Needs
With versatile performance, HP-H09-01 serves as a universal key for long-distance industrial wireless transmission across industries, solving core pain points in various applications.
Industrial Drones & Models: Long-Range Video Transmission & Extended Battery Life
Core Pain Points: Limited body space, short video transmission range, signal disconnections, payload impact on battery life
Solution Value: Ultra-small size and low power consumption reduce payload and extend endurance; 29dBm high power and 10MHz narrow bandwidth ensure stable long-range video transmission for uninterrupted power inspection, mapping, aerial survey and emergency rescue.
Security Surveillance & IP Cameras: Outdoor HD Transmission with Full Coverage
Core Pain Points: Short outdoor transmission range, severe 2.4G band interference, insufficient 4K video bandwidth
Solution Value: 5G band with strong anti-interference, 867Mbps bandwidth for real-time 4K return, kilometer-level coverage for remote areas, and built-in FEM for obstruction resistance, enabling wireless, full-coverage and high-stability outdoor security surveillance.
Special Robots & Industrial IoT: Stable Connectivity in Complex Environments
Solution Value: Ultra-small size for easy integration, high anti-interference and wide-temperature stability for factories, underground pipe networks and extreme outdoor environments, ensuring reliable robot remote control and data return; USB interface simplifies integration and reduces retrofitting costs.
Ultra-Small Security Detection Devices: Concealed Deployment with HD Coverage
Core Pain Points: Miniature size, high concealment requirements, unstable transmission in weak-signal environments
Solution Value: 27×20×3.45mm ultra-small size ideal for concealed deployment; 5G band anti-interference and stable reception in weak signals; 867Mbps bandwidth for real-time 4K HD video return, enabling comprehensive and reliable security detection.
Solution Value: Small size for easy embedding, 5V single power supply for simplified hardware design, boosting wireless competitiveness for advertising machines, vehicle equipment, outdoor screens and other smart terminals.
For enterprises, an excellent industrial module requires strong performance, fast mass production and stable delivery.
Easy Integration: USB 2.0 eliminates complex wiring; IPEX port supports external high-gain antennas, shortening development cycle by 50% for rapid wireless upgrades.
High-Reliability Mass Production: Standard packaging (60 pieces/tray, 840 pieces/box), vacuum anti-static packaging, 12-month storage validity, usable within 72 hours after opening; supports reflow soldering with high yield and reliable supply chain.
Flexible Customization: Transmit power configurable via driver for regulatory compliance; supports 20/40/80MHz bandwidth and full channels 36~165 for flexible interference avoidance and industry-specific customization.
Full-Cycle Technical Support: Professional team provides end-to-end support from design, integration to mass production, solving R&D challenges and accelerating time-to-market.
4. Why HP-H09-01 Is the Best Choice for Industrial Wireless Transmission?
In industrial wireless communication,performance, size, stability and cost are no longer trade-offs. HP-H09-01 stands out as a leading industrial 5G WiFi module with five core strengths: high-power long-distance transmission, 867Mbps ultra-fast bandwidth, ultra-small size, industrial-grade stability and easy mass production.
For drone manufacturers: Compact size saves space, high power ensures long-range video transmission, enhancing product competitiveness.
For security equipment makers: Kilometer-level transmission and 4K return enable wireless full outdoor coverage.
For robot manufacturers: Easy integration and high stability adapt to complex environments, reducing R&D costs.
For IoT manufacturers: Small size and wide-temperature stability fit various smart terminals.
Choose HP-H09-01 high-power 5G wireless module for longer distance, faster speed, more stable connection and smaller footprint, helping enterprises lead in long-distance industrial wireless transmission with technological and market breakthroughs!
For sample requests, custom solutions, pricing and technical support, contact us now!
