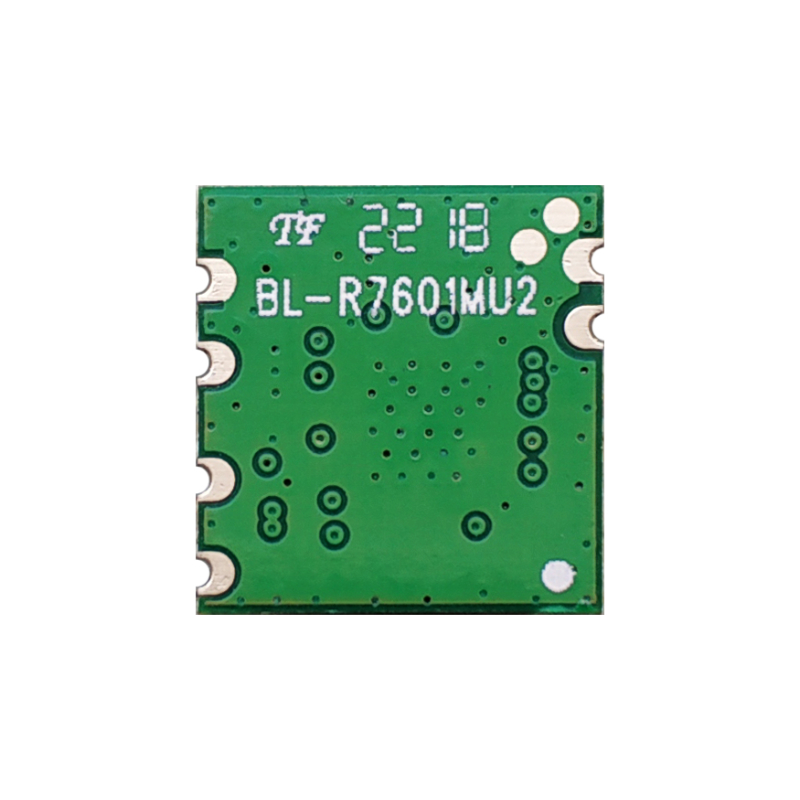

BL-R7601MU2
LB-LINK
MTDIATEK
1T1R
USB2.0 Interface
Wi-Fi 4 (802.11n)
Efficient 2.4G Wi-Fi Module with STM32, Monitor Mode, and AP+STA for Home
Introduction
BL-R7601MU2 is a highly integrated WLAN module base on MT7601UN, which optimized FR architecture and baseband algorithms provide super performance and low power consumption, intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor. It fully complies with IEEE802.11b/g/n standards, offering feature-rich wireless connectivity, and delivering reliable, cost-effective throughput from an extended distance.
Features
Operating Frequencies: 2.4~2.4835GHz
IEEE Standards: IEEE 802.11b/g/n
Wireless PHY rate can reach up to 150Mbps
Host Interface: USB 2.0
Connect to external antenna through half hole pad
3.3V ±0.2V single power supply
Block Diagram
General Specifications
Module Name | BL-R7601MU2 |
Chipset | MT7601UN |
WLAN Standards | IEEE802.11b/g/n |
Host Interface | USB2.0 |
Antenna | Connect to the external antenna through half hole pad |
Dimension | 13*12.3*1.7mm (L*W*H) |
Power Supply | DC 3.3V±0.2V @ 500 mA (Max) |
Operation Temperature | -20℃ to +70℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |
Product Dimension
Module dimension: 13*12.3*1.7mm (L*W*H; Tolerance: ±0.15mm)
Package Dimensions
Package specification:
1. 2,000 modules per roll and 10,000 modules per box.
2. Outer box size: 37.5*36*29cm.
3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 28mm
(with a width of 24mm carrying belt).
4. Put 1 package of dry agent (20g) and humidity card in each anti-static vacuum bag. 5. Each carton is packed with 5 boxes.
