Unlocking 802.11be’s Potential: Deep Dive into MLO, 320MHz Channels, 4K-QAM, Enhanced MIMO, and Hardware Integration Challenges in Antenna Design, Power Consumption, Thermal Management, and Coexistence Testing.
Introduction: How Wi-Fi 7 Reshapes Hardware Design
The explosive growth of bandwidth-hungry applications—from 8K streaming to industrial IoT—is pushing wireless technology to its performance limits. As the next-generation standard, Wi-Fi 7 (802.11be) promises up to 30Gbps throughput and sub-10ms latency, but its hardware implementation faces unprecedented challenges. For RF engineers, product developers, and hardware designers, mastering its core technologies and integration complexity is key to building competitive products.
This article breaks down Wi-Fi 7’s transformative technologies—Multi-Link Operation (MLO), 320MHz Channels, 4K-QAM, and Enhanced MIMO—while exploring critical hardware challenges like antenna miniaturization and thermal management. We also provide tailored design blueprints for enterprise APs, industrial gateways, and home CPEs.
Wi-Fi 7 Core Technologies Driving Performance
1. Multi-Link Operation (MLO): Seamless Bandwidth Aggregation
Technical Essence: MLO allows devices to establish and use multiple links simultaneously or alternately across 2.4GHz, 5GHz, and 6GHz (new in Wi-Fi 6E) bands. By aggregating links, it boosts throughput, reliability, and reduces latency. If interference occurs, data switches instantly to another link—like building parallel "highways" for data.
Hardware Design Focus:
Multi-Band RF Chains: Independent RF frontends per band with strict isolation (e.g., preventing 6GHz leakage into 5GHz paths).
Intelligent MAC Layer: Advanced traffic balancing across links demands real-time CPU/GPU scheduling.
Dynamic Band Switching: Hardware must support sub-millisecond channel switching, impacting PLL design/tuning speed.
2. 320MHz Channels: Chasing Wider Spectrum Bandwidth
6GHz Band Advantage: Wi-Fi 7 leverages the cleaner, spectrum-rich 6GHz band to deploy 320MHz ultra-wide channels (2× Wi-Fi 6’s 160MHz). Key hardware enablers:
Broadband Antennas: Stable gain & low VSWR across 5.925–7.125GHz, using PIFA or slot antenna designs.
High-Linearity RF Components: PAs and LNAs require broadband performance with low IMD to ensure EVM < -35dB for 4K-QAM.
3. 4K-QAM: Breaking Spectrum Efficiency Limits
Modulation Principle: 4K-QAM (4096-QAM) encodes 12 bits per symbol (20% gain over Wi-Fi 6’s 1024-QAM) but demands extreme signal precision:
High-Resolution ADC/DAC: ≥12-bit resolution to resolve subtle phase/amplitude differences in 4096 constellation points.
RF Calibration Systems: On-chip DPD and AGC compensate for phase noise/IQ imbalance, ensuring SER < 10⁻⁴.
4. Enhanced MIMO: More Antennas, Smarter Signals
Technical Upgrades:
Spatial Stream Expansion: Enterprise APs support up to 16 streams (vs. 8 in Wi-Fi 6), requiring dense antenna arrays.
3D Beamforming: Optimizes directional signals in multi-floor buildings using phased-array antennas.
Compact Device Challenge: >4 antennas within 5mm spacing for smartphones, suppressing mutual coupling to < -15dB via fractal geometries or EBG structures.
Core Hardware Integration Challenges
1. Antenna Design: Balancing Bandwidth, Size & Performance
Multi-Band vs. Broadband: Tri-band (2.4/5/6GHz) antennas offer efficiency but consume space; broadband simplifies layout but may sacrifice gain.
MIMO Layout Tactics: In laptops, distribute 8×8 MIMO antennas across bezels/keyboard areas to avoid ground plane interference.
Testing Complexity: OTA chambers require 3D spherical scanning to validate beamforming accuracy.
2. Power Management: Taming the "Energy Beast"
Wi-Fi 7 RF power can surge 2–3× vs. Wi-Fi 6 under high load (MLO + 320MHz + 4K-QAM + MIMO). Battery devices must prioritize:
Dynamic RF Chain Sleep: Traffic sensors deactivate idle bands (e.g., disable 6GHz off-peak).
Efficient Power Amplification: GaN PAs for 6GHz boost PAE by 30% vs. silicon.
Custom PMICs: Integrated multi-band voltage regulation and real-time current monitoring.
3. Thermal Management: Guarding Performance in High Heat
Multi-RF chains and 16nm baseband chips can push temperatures >85°C. Solutions include:
Layered Cooling: Enterprise APs use stacked PCBs with thermal vias + aluminum heatsinks.
Phase-Change Materials (PCM): Compact devices absorb burst heat peaks to aid passive cooling.
Hardware Thermal Control: Auto-throttle TX power at temperature thresholds.
4. Coexistence Testing: Overcoming Wireless Interference
6GHz shares spectrum with radar/satellite systems. Mitigation strategies:
Adaptive Frequency Selection (AFS): Hardware sensors detect radar, auto-avoiding 5.6–5.9GHz bands.
Filter Upgrades: Narrowband SAW filters suppress Bluetooth/Zigbee interference in 2.4GHz (critical for industrial).
Protocol-Level Coordination: MLO switches to clean bands—hardware must enable sub-ms link switching.
Scenario-Specific Design Priorities
1. Enterprise APs: Capacity Kings for High-Density Deployments
Goals: High Capacity, Reliability, Scalability
Tri-Band MLO: Aggregate bands for 10k+ concurrent users (e.g., stadiums with HD streaming + real-time positioning).
Array Antennas: 12+ dual-polarized antennas + beamforming eliminate dead zones. Adaptive power control reduces interference.
Redundancy: Dual PSUs + hot-swappable RF modules for 99.999% uptime.
Use Case: AR-guided picking + AGV control in 100k m² smart warehouses; MLO ensures seamless 6GHz↔2.4GHz handover across floors.
2. Industrial Gateways: Reliable Links in Harsh Environments
Goals: Robustness, Low Latency, Interference Immunity
Wide-Temp Design: -40°C to +85°C operation with conformal coating for dust/moisture.
Robust Link Strategy: Default to 2.4GHz/5GHz; activate 6GHz only for real-time tasks (e.g., robotic arm control).
Isolation & Protection: Shielded enclosures block EMI from motors/PLCs; surge-protected industrial Ethernet ports.
Use Case: AGV control in auto plants; MLO auto-switches bands during welding interference to maintain <5ms control-loop latency.
3. Home CPEs (Routers): Balancing Performance & Cost
Goals: User Experience, Coverage, Value
Hybrid MLO: Aggregate 5GHz/6GHz for high-speed devices; reserve 2.4GHz for smart appliances + auto-QoS.
Compact Antennas: 4×4 MIMO in foldable plastic housings; ML-optimized beamforming for multi-story homes.
Energy Efficiency: Wi-Fi wake + dynamic duty cycle cut standby power to <5W.
Use Case: Buffer-free 8K streaming to 3 TVs + stable connections for 50+ smart devices; 320MHz channels future-proof for AR headsets.
Future-Proofing Designs
32-User MU-MIMO: Surging algorithm complexity demands baseband processor upgrades.
Global Spectrum Fragmentation: Flexible RF frontends needed for regional 6GHz variations (1200MHz in US vs. 600MHz in EU).
Edge AI Integration: ML predicts interference patterns, dynamically optimizing MLO links for adaptive performance.
Conclusion
Wi-Fi 7 presents dual trials of opportunity and challenge for hardware designers. From MLO’s multi-band coordination to 4K-QAM’s precision demands, from antenna spatial constraints to thermal innovations—every detail shapes product success. Whether scaling enterprise deployments, hardening industrial systems, or optimizing consumer experiences, the key lies in balancing innovation with engineering pragmatism. Let Wi-Fi 7 transcend specs to become the practical solution propelling wireless connectivity forward.
Start Your Wi-Fi 7 Hardware Design Journey
Ready to integrate Wi-Fi 7 into your next design? Accelerate development with our engineering expertise and hardware solutions:

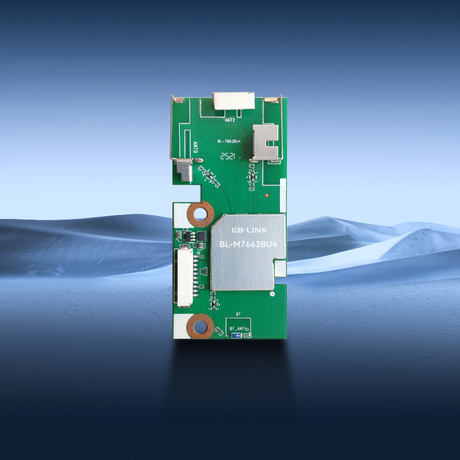

1. Explore Wi-Fi 7 Modules
