Introductio
BL-M8821CU1 modulus basis ex RTL8821CU-CG designatus est. IEEE 802.11a/b/g/n/ac 1T1R cum alta throughput data rate pro WLAN productos sustinet et summam PHY rate usque 433.3Mbps praebet. Cuius moduli moduli sunt Bluetooth 2. 1+EDR et systema BT 4.2 adminicula. Componit WLAN MAC, 1T1R capacem WLAN baseband, modem et stabilis, altam rate, longam distantiam connectivity wireless per antenna externa. Poni potest in IP Camera/Smert TV et aliis artificiis wireless facile.
Features
Frequentiae operans: 2.4~2.4835GHz vel 5.15~5.85 GHz
Hostia interface est USB2.0
IEEE standard: IEEE 802.11a/b/g/n/ac
Wireless PHY data rate pervenire potest ad 433Mbps
Support Bluetooth v4.2
Antennae externae coniungere per medium foramen
DC 3.3V±0.2V copia principalis potentiae

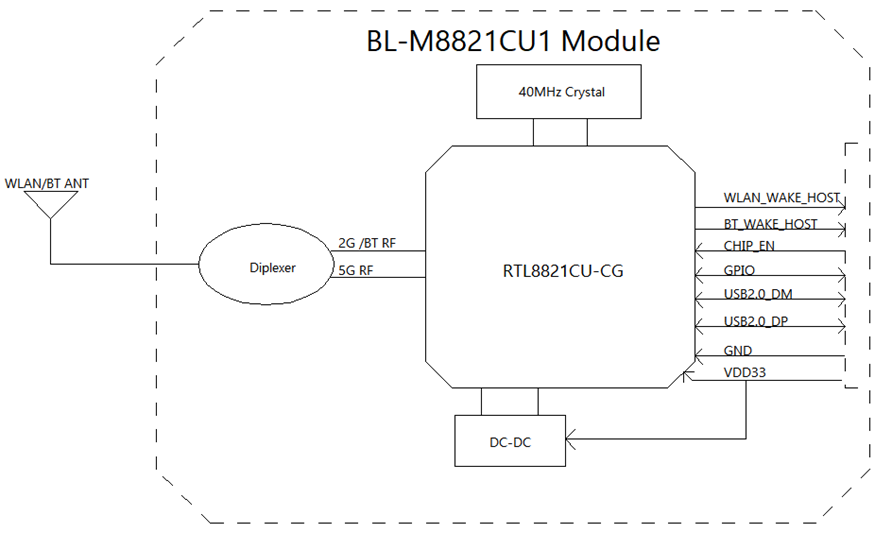

Obstructionum Diagram
Specificationes generales
OMNIBUS Nomen |
BL-M8821CU1 |
Chipset |
RTL8821CU-CG |
WLAN Standard |
IEEE 802.11 a/b/g/n/ac |
Signa Bluetooth |
Bluetooth Core Specification v4.2 |
Hospes Interface |
USB2.0 interface pro WLAN & Bluetooth |
Antenna |
Antennae externae per medium foramen caudex coniungere |
Dimension |
12.9* 12.2*1.6mm (L*W*H） |
Potestas Supple |
DC 3.3V±0.2V @ 500 mA ( Max) |
Operatio Temperature |
-20℃ ad +70℃ |
operatio Umor |
X% ad XCV% RH (Non-Condensing) |

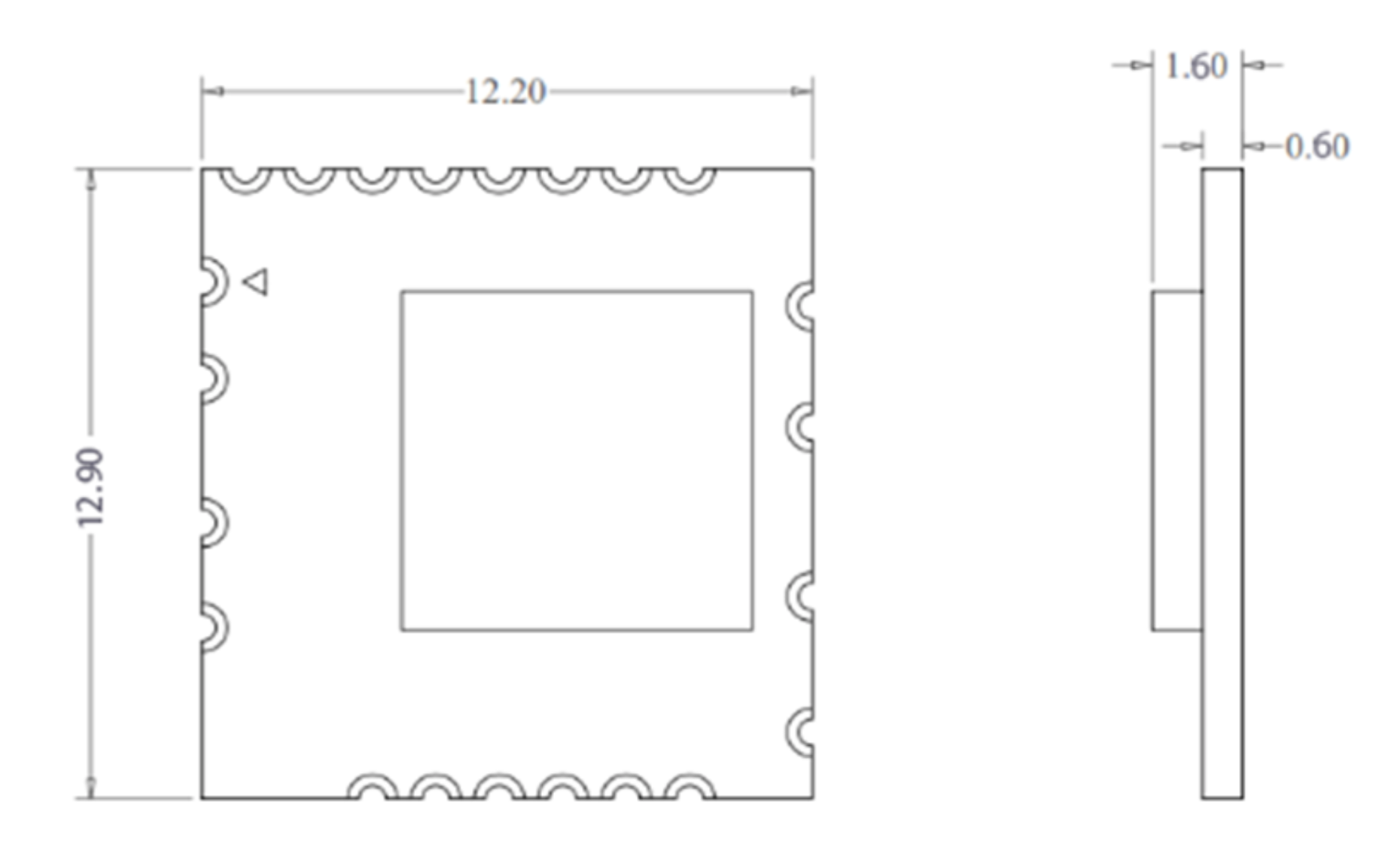

Product Dimension
Module dimensio: 12.9*12.2*1.6mm(L*W*H; Tolerantia: ±0.15mm)

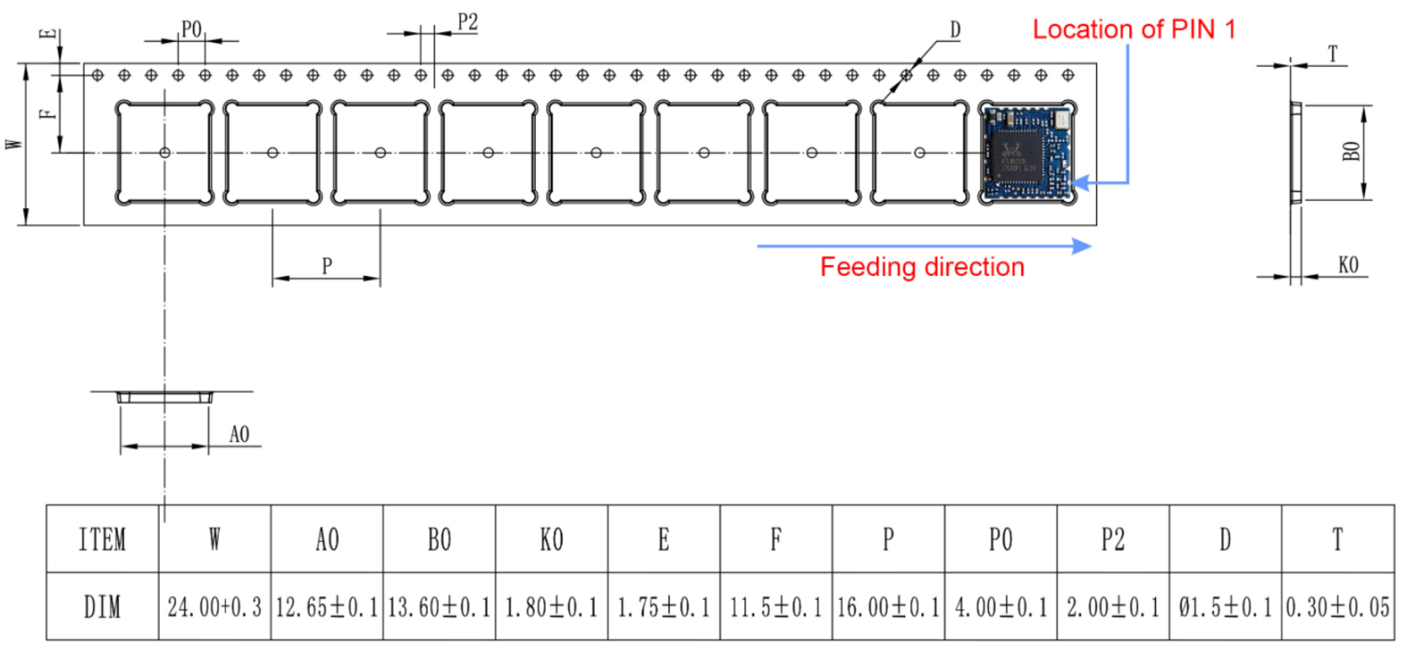

Sarcina Dimensiones
Specificatio sarcina:
1. 2000 modulorum in volumine et 10,000 modulorum in arca.
2. Arca exterioris magnitudinis: 37.5*36*29cm.
3. Diameter caerulei ambitus amicae Flexilis laminae est 13 digitorum, cum tota crassitudine 28mm
(cum latitudine 24mm balteum gerens).
4. Pone 1 sarcinam agentis aridae (20g) et humiditatis chartae in singulis sacculi anti-staticis vacuo.
5. Quisque lobortis cum 5 scriniis refertum est.
