WiFi 6 vs 6E: What's the Difference?
Did you know WiFi 6E offers nearly 3x more channels than WiFi 6?
Both standards promise faster speeds. But which one suits your needs?
In this guide, you'll discover the key differences. Learn which upgrade makes sense for you.What is Wi-Fi 6? Understanding the 802.11ax Standard
The Basics of Wi-Fi 6 Technology
Wi-Fi 6 is the newest wireless standard. It's technically known as 802.11ax.
The technology arrived in 2018. Major device manufacturers started adopting it in 2019. Now it's everywhere—phones, laptops, routers, gaming consoles.
What makes Wi-Fi 6 special? It delivers 4x more capacity than Wi-Fi 5.
Here's what Wi-Fi 6 improves:
| Feature | Wi-Fi 5 | Wi-Fi 6 | Improvement |
| Max Speed | 3.5 Gbps | 9.6 Gbps | 2.7x faster |
| Latency | Higher | Lower | 75% reduction |
| Device Capacity | Limited | 4x more | Better for smart homes |
| Power Efficiency | Standard | Optimized | 7x better battery life |
Most new devices support it today. Your iPhone 11 or newer? It has Wi-Fi 6. PlayStation 5? Same thing. Samsung TVs from 2020? They're compatible too.
Core Features of Wi-Fi 6
Wi-Fi 6 packs five game-changing technologies. Let's break them down.
MU-MIMO Technology
Multi-User, Multiple Input, Multiple Output sounds complex. It's not. Think of it as multiple lanes on a highway. More devices can transmit data simultaneously.
OFDMA Explained
Orthogonal Frequency-Division Multiple Access divides channels into smaller units. It's like splitting one delivery truck into multiple packages. Each device gets exactly what it needs.
Target Wake Time (TWT)
This feature tells devices when to sleep. When to wake up. Your phone battery lasts longer. IoT devices can run for years.
1024-QAM
Quadrature Amplitude Modulation packs more data into radio waves. Wi-Fi 5 used 256-QAM. Wi-Fi 6 quadruples that. Result? 25% more throughput.
BSS Coloring
Basic Service Set Coloring reduces interference. It assigns colors to networks. Devices ignore different-colored signals. Less congestion means faster speeds.
Wi-Fi 6 Specifications and Performance
Wi-Fi 6 operates on familiar frequencies. It uses both 2.4 GHz and 5 GHz bands.
Speed Breakdown:
Maximum theoretical speed: 9.6 Gbps
Real-world speed at 15 feet: 1.146 Gbps
Typical home speed: 600-900 Mbps
Frequency Band Details:
| Band | Channels | Width | Best For |
| 2.4 GHz | 11 | 20/40 MHz | Long range, walls |
| 5 GHz | 25 | 20/40/80/160 MHz | High speed, short range |
The 5 GHz band offers one 160 MHz channel. That's double the highway width. Perfect for 4K streaming and large downloads.
Range depends on your environment. Expect 150 feet indoors. Up to 300 feet outdoors. Walls and interference reduce these numbers.
Wi-Fi 6 maintains compatibility with older devices. Your Wi-Fi 4 printer still works. But it won't see the speed benefits.
What is Wi-Fi 6E? The Extended Standard Explained
Introduction to Wi-Fi 6E Technology
Wi-Fi 6E isn't just another upgrade. It's an extended version of Wi-Fi 6. The "E" stands for "Extended" – and that's exactly what it does.
In April 2020, the FCC made a historic decision. They opened the 6 GHz band for unlicensed use. This was huge news for wireless technology.
Other countries quickly followed:
Brazil and Chile joined early
The European Union approved it
Japan, Mexico, and South Korea came on board
Taiwan, UAE, and the UK also adopted it
Why did we need Wi-Fi 6E? Simple. Our homes are packed with devices. Smart TVs, phones, tablets, security cameras – they're all fighting for bandwidth. The 2.4 GHz and 5 GHz bands were getting crowded. We needed more space.
The Revolutionary 6 GHz Band
The 6 GHz band changes everything. It's like adding a new highway when traffic gets bad.
Here's what makes it special:
| Feature | Impact |
| 1200 MHz of new bandwidth | More than double what 5 GHz offers |
| Exclusive access | Only Wi-Fi 6E devices can use it |
| No legacy devices | No slow devices clogging up the network |
| Less interference | Cleaner signals, better performance |
Think about it this way. Regular Wi-Fi bands are like busy restaurants. Everyone's there – new customers and regulars who've been coming for years. The 6 GHz band? It's VIP only.
This exclusivity matters. Legacy devices can't slow down your connection. Your new Wi-Fi 6E laptop won't have to share space with that old printer from 2015.
Wi-Fi 6E Technical Specifications
Let's dive into the technical details. Wi-Fi 6E operates on three bands:
The 6 GHz band brings impressive capabilities:
Channel Availability:
Speed Performance:
Maximum speed: 1.788 Gbps at 15 feet
Consistent performance even with multiple devices
Lower latency for gaming and video calls
Key Technical Advantages:
No DFS Requirements
Unlike 5 GHz, you don't share spectrum with radar
No interruptions from weather stations
Full access near airports and TV stations
Mandatory WPA3 Security
Every Wi-Fi 6E device must use WPA3
No backward compatibility with WPA2
Enhanced protection against hacking attempts
These specifications make Wi-Fi 6E ideal for demanding applications. AR gaming, 8K streaming, massive file transfers – they all benefit from this technology.

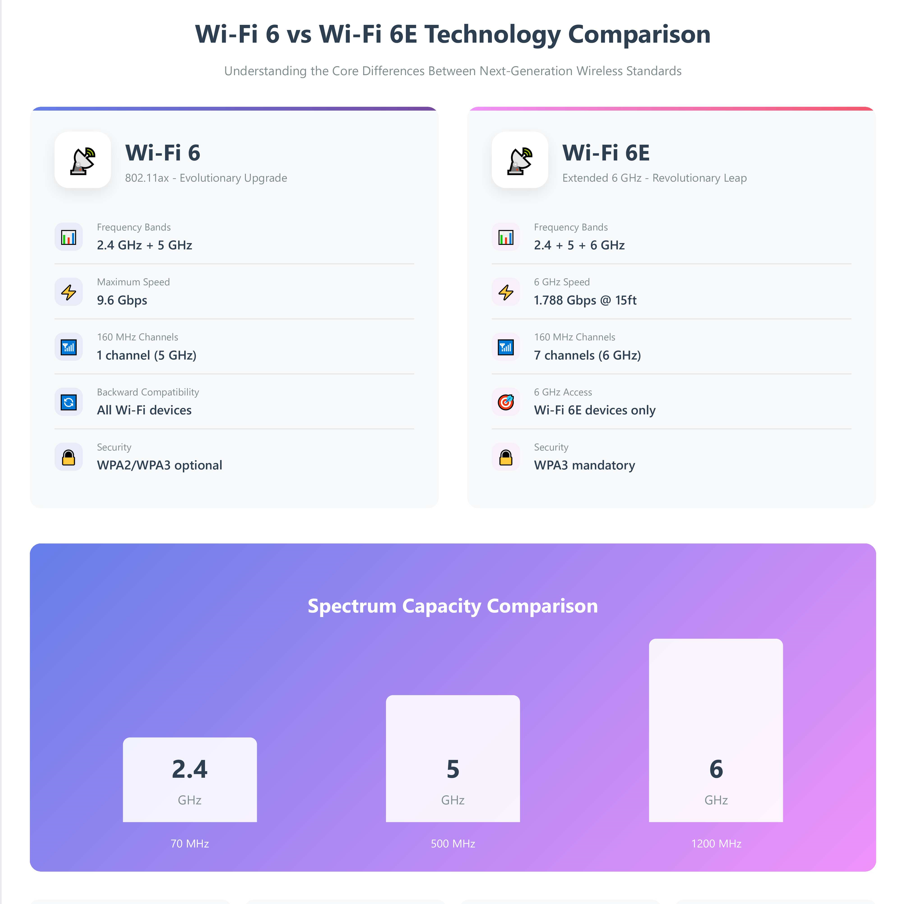

Wi-Fi 6 vs 6E: Key Differences Explained
Frequency Bands and Spectrum Comparison
Wi-Fi 6 sticks to the classics. It uses the 2.4 GHz and 5 GHz bands we've known for years. Wi-Fi 6E? It adds something completely new – the 6 GHz band (5.925-7.125 GHz).
Here's how they stack up:
| Feature | Wi-Fi 6 | Wi-Fi 6E |
| Frequency Bands | 2.4 GHz, 5 GHz | 2.4 GHz, 5 GHz, 6 GHz |
| 160MHz Channels | 1 channel (5 GHz) | 8 channels (1 in 5 GHz, 7 in 6 GHz) |
| 80MHz Channels | Limited | 14 additional channels |
| Total Spectrum | ~500 MHz | ~1,700 MHz |
The difference is massive. Wi-Fi 6E offers 2.5 times more spectrum than Wi-Fi 6.
Congestion levels tell the real story:
Wi-Fi 6 bands are packed. Your devices compete with neighbors' routers, Bluetooth gadgets, and legacy equipment
The 6 GHz band is pristine. No old devices allowed
It's like comparing a crowded highway to an empty express lane

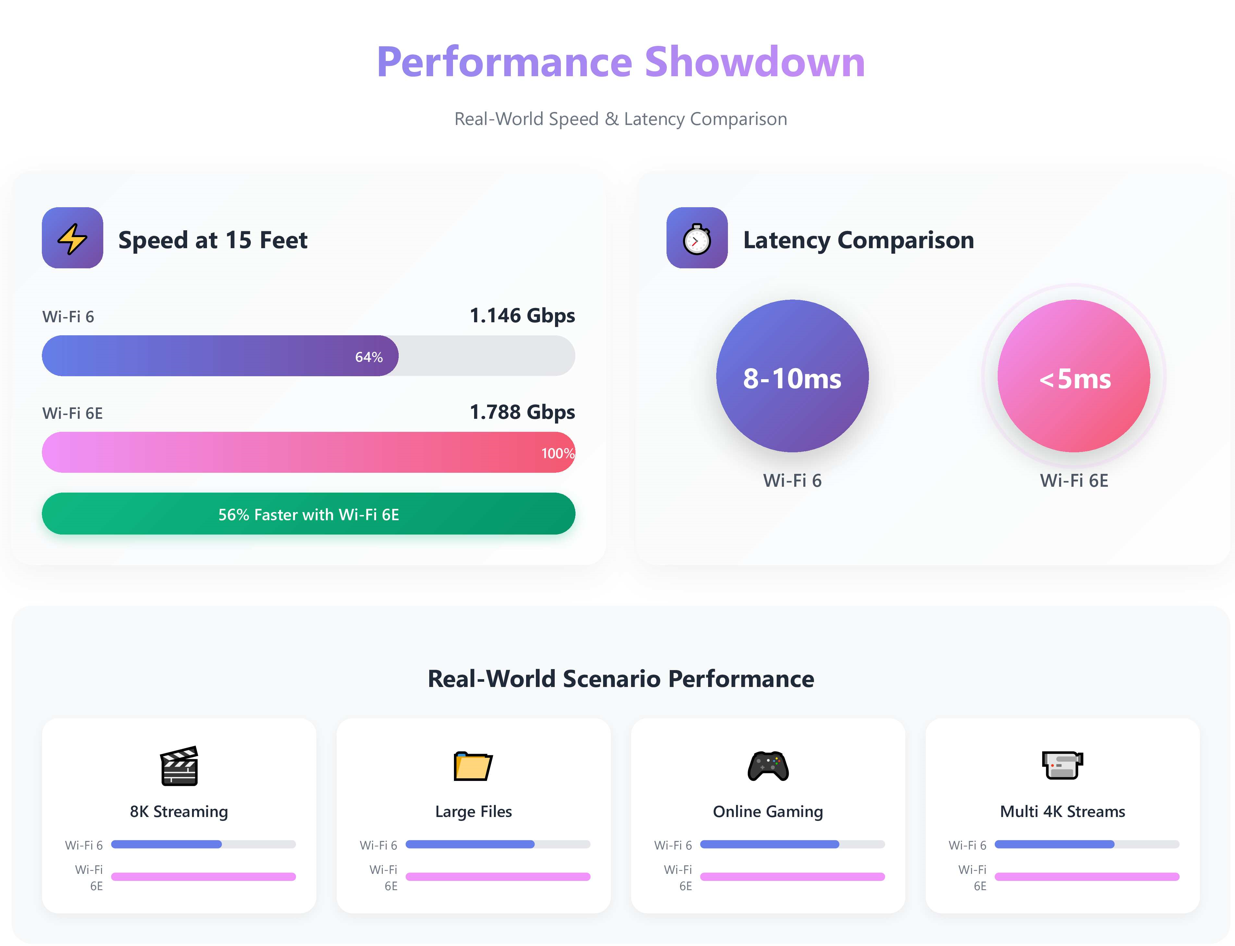

Speed and Performance Differences
Let's talk real numbers. Performance isn't just about theoretical speeds.
Speed Comparison at 15 feet:
Wi-Fi 6: 1.146 Gbps
Wi-Fi 6E: 1.788 Gbps
That's a 56% improvement. But speed tells only part of the story.
Performance Benefits of Wi-Fi 6E:
Lower Latency
Gamers see response times drop
Video calls feel more natural
AR/VR applications run smoother
Congested Environment Performance
Wi-Fi 6 slows down in apartments and offices
Wi-Fi 6E maintains speed even in crowded areas
No interference from microwaves or baby monitors
Real-World Scenarios:
| Activity | Wi-Fi 6 Experience | Wi-Fi 6E Experience |
| 8K Streaming | Occasional buffering | Seamless playback |
| Large File Transfers | Variable speeds | Consistent fast speeds |
| Online Gaming | Some lag spikes | Ultra-low latency |
| Multiple 4K Streams | May struggle | Handles easily |
Backward Compatibility: Wi-Fi 6 vs 6E
This is where things get interesting. Wi-Fi 6 plays nice with everyone. Your old laptop, smart TV, printer – they all work fine.
Wi-Fi 6E? It's different.
Wi-Fi 6 Compatibility:
Works with 802.11a/b/g/n/ac devices
Supports legacy 2.4 GHz and 5 GHz equipment
No need to replace existing devices
Smooth transition for businesses
Wi-Fi 6E Compatibility:
6 GHz band is exclusive to Wi-Fi 6E devices
Older devices can't access the new spectrum
Still supports 2.4 GHz and 5 GHz for legacy devices
Creates a "fast lane" for new equipment
Migration Strategies for Businesses:
• Gradual Approach
Keep Wi-Fi 6 for general use
Deploy Wi-Fi 6E for high-priority applications
Phase out old equipment over time
• Segregated Networks
Use 6 GHz for critical operations
Keep 2.4/5 GHz for everyday tasks
Separate IoT devices from main traffic
Security Features Comparison
Security isn't optional anymore. Wi-Fi 6 and 6E take different approaches.
Wi-Fi 6 Security Options:
Supports both WPA2 and WPA3
Allows flexibility for older devices
Optional Enhanced Open (OWE)
Gradual security improvements
Wi-Fi 6E Security Requirements:
WPA3 is mandatory – no exceptions
No WPA2 fallback on 6 GHz
Enhanced Open certification required
Based on OWE specification (IETF RFC 8110)
Security Benefits Breakdown:
| Feature | Wi-Fi 6 | Wi-Fi 6E |
| Encryption | WPA2/WPA3 | WPA3 only |
| Password Protection | Variable | Always strong |
| Open Network Security | Optional OWE | Required OWE |
| Legacy Vulnerabilities | Some remain | None on 6 GHz |
The clean spectrum advantage matters here. No old devices means no old security holes. Every device on 6 GHz uses modern encryption. It's like having a security guard who only lets in people with updated ID cards.

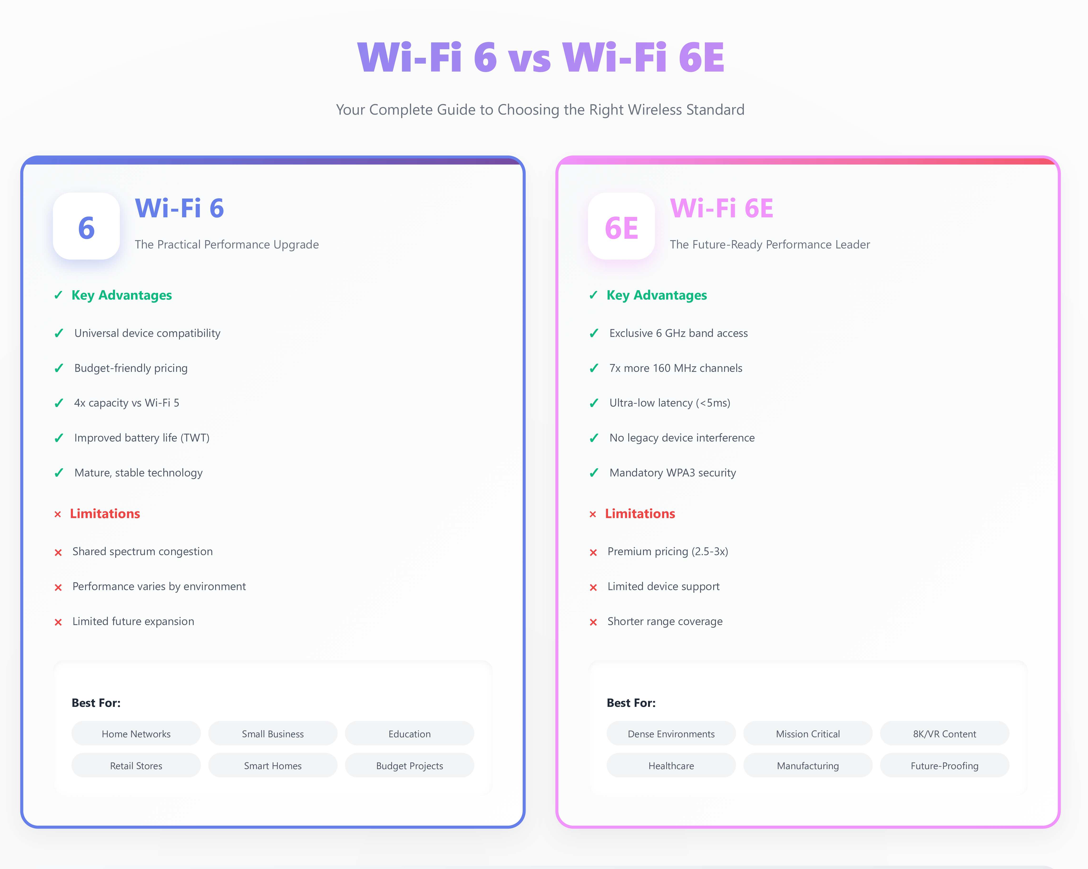

Benefits of Wi-Fi 6 vs Wi-Fi 6E
Advantages of Wi-Fi 6
Wi-Fi 6 shines because it works with what you already have. No need to throw out your current setup.
Key Benefits:
| Advantage | Real Impact |
| Infrastructure Compatibility | Your current router might already support it |
| Device Support | Works with smartphones from 2019 onward |
| Cost Savings | Upgrade without replacing everything |
| Legacy Performance | Old devices actually run better |
Broader Device Compatibility
Think about your home right now. You've got:
That smart TV from 2018
Your partner's older laptop
Kids' tablets from various years
Smart home devices galore
Wi-Fi 6 supports them all. It speaks every Wi-Fi language – 802.11a/b/g/n/ac. Your decade-old printer? Still works.
Cost-Effective Upgrade Path
Here's what makes Wi-Fi 6 budget-friendly:
• Phased upgrades – Replace devices as they age naturally • No forced obsolescence – Keep using what works • Wide router selection – Prices range from $50 to $500 • ISP compatibility – Most providers already support it
Performance Boost for Older Devices
Wi-Fi 6 makes old gadgets feel young again. How? Through smart traffic management:
OFDMA technology splits channels efficiently
MU-MIMO handles multiple devices better
BSS Coloring reduces interference
Old devices benefit from cleaner signals
Battery Life Revolution with TWT
Target Wake Time (TWT) is a game-changer. Your devices sleep when not needed.
Smartphones last 20-30% longer
IoT sensors can run for years
Laptops stretch battery life significantly
Devices wake only when necessary
Advantages of Wi-Fi 6E
Wi-Fi 6E takes a different approach. It's all about maximum performance.
The Pristine Spectrum Advantage
The 6 GHz band is untouched territory. No interference from:
It's like having a private beach while everyone else crowds the public shore.
Capacity for Dense Environments
Wi-Fi 6E excels where others struggle:
| Environment | Wi-Fi 6 Performance | Wi-Fi 6E Performance |
| Apartment Buildings | Significant slowdowns | Maintains full speed |
| Office Spaces | Congestion during peaks | Consistent throughput |
| Public Venues | Often unusable | Reliable connections |
| Smart Homes (50+ devices) | Struggles with bandwidth | Handles easily |
Ultra-Low Latency Benefits
Real-time applications love Wi-Fi 6E:
• Cloud Gaming – Response times under 5ms • VR/AR Applications – No motion sickness from lag • Video Production – Real-time 8K editing possible • Telehealth – Crystal-clear consultations
Future-Proof Technology Investment
Investing in Wi-Fi 6E means you're ready for:
8K streaming becoming mainstream
Metaverse applications requiring massive bandwidth
AI-powered home devices needing instant responses
Whatever comes next in the 2030s
Zero Competition from Legacy Devices
This exclusive access creates unique benefits:
Guaranteed speeds – No slowdowns from old tech
Predictable performance – Know what you'll get
Professional applications – Medical imaging, CAD work
Content creation – Uncompressed video transfers
The 6 GHz band stays fast because it stays exclusive. Your brand-new laptop won't compete with a 2010 smartphone for bandwidth.

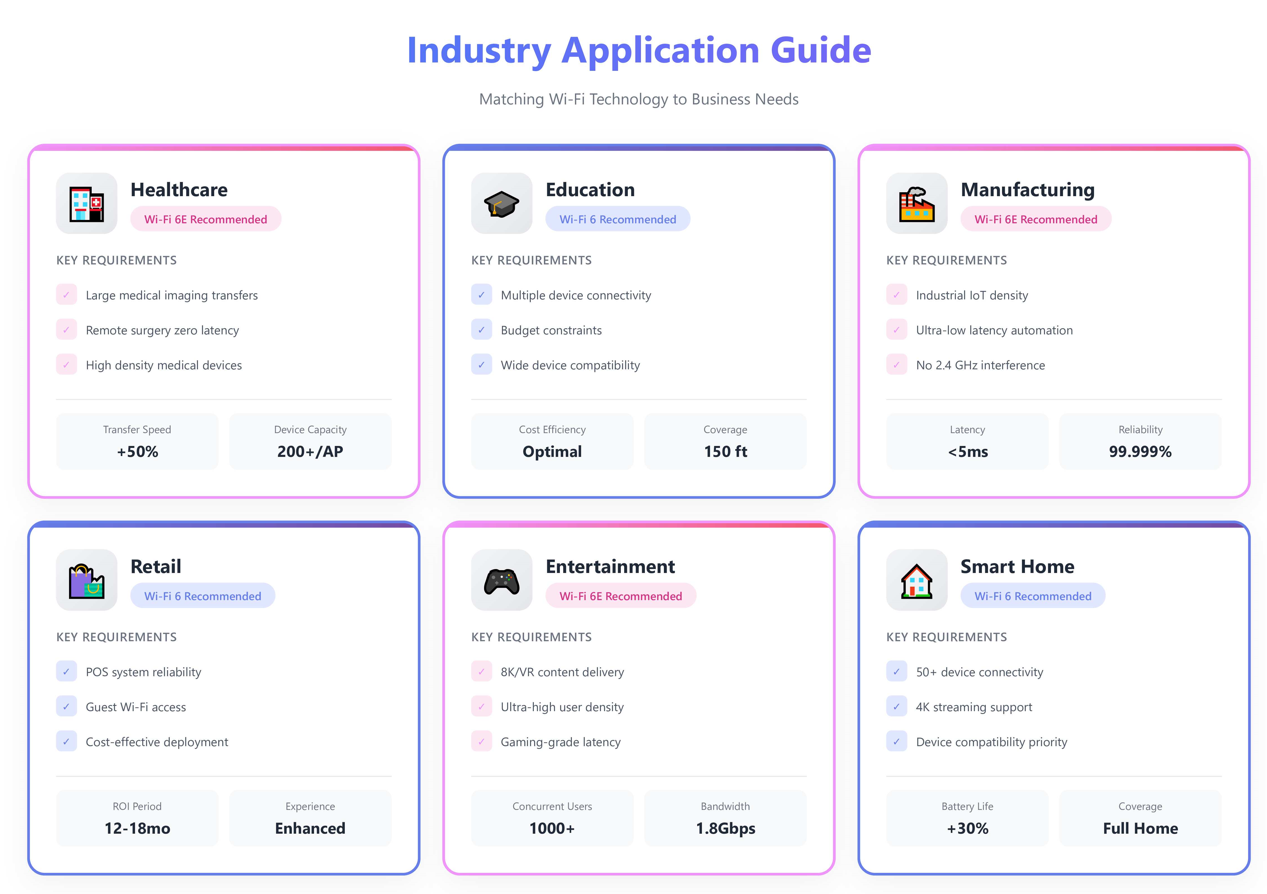

Industry Applications: Wi-Fi 6 vs 6E Use Cases
Healthcare Industry
Healthcare faces unique connectivity challenges. Lives depend on reliable networks.
Telemedicine Requirements:
HD video consultations need stable connections
Screen sharing for medical records
Real-time vital sign monitoring
Zero tolerance for dropped calls
Medical Imaging Transfers:
| File Type | Average Size | Wi-Fi 6 Transfer Time | Wi-Fi 6E Transfer Time |
| MRI Scan | 250-500 MB | 2-4 seconds | 1-2 seconds |
| CT Series | 1-2 GB | 8-16 seconds | 5-10 seconds |
| 3D Imaging | 5-10 GB | 40-80 seconds | 25-50 seconds |
IoT Medical Device Connectivity: • Heart monitors, insulin pumps, patient trackers • Wi-Fi 6 handles 100+ devices per access point • Wi-Fi 6E segregates critical from non-critical devices • Battery life matters for wearable monitors
Which Standard Suits Healthcare Better?
Wi-Fi 6E wins for hospitals. The 6 GHz band keeps life-saving devices separate from visitor phones. Large file transfers happen faster. Interference-free operation prevents critical communication failures.
Smaller clinics might prefer Wi-Fi 6. It costs less and works with existing equipment.
Education Sector
Schools pack hundreds of devices into small spaces. Every student brings at least one.
Virtual Classroom Needs:
Simultaneous video streams for 30+ students
Interactive whiteboard applications
Cloud-based learning platforms
Real-time collaboration tools
Campus-Wide Coverage Challenges:
| Area | Device Density | Best Solution |
| Classrooms | 30-40 devices | Wi-Fi 6 sufficient |
| Lecture Halls | 200+ devices | Wi-Fi 6E recommended |
| Libraries | Variable load | Either works |
| Dorms | Extreme density | Wi-Fi 6E ideal |
Student Device Considerations:
Most students have Wi-Fi 6 capable devices
Few own Wi-Fi 6E equipment yet
Schools provide many older devices
BYOD policies complicate planning
Cost-Benefit Analysis:
Wi-Fi 6 for Schools:
Lower initial investment ($50-100K for small schools)
Works with all student devices
Sufficient for most K-12 needs
Easy IT management
Wi-Fi 6E for Schools:
Higher upfront cost ($150-300K)
Future-proofs for 5+ years
Enables advanced AR/VR learning
Better for universities
Retail and Hospitality
Customer experience drives everything here. Slow Wi-Fi means lost sales.
Point-of-Sale Requirements: • Instant payment processing • Inventory system connectivity • Mobile checkout capabilities • Zero downtime tolerance
Wi-Fi 6E makes checkout lines move faster. No interference means no "system is slow" excuses.
Guest Wi-Fi Considerations:
| Scenario | Wi-Fi 6 Performance | Wi-Fi 6E Performance |
| Hotel Lobby (peak) | Congested, slow | Smooth for all |
| Restaurant dining | Adequate | Excellent |
| Conference events | Often fails | Handles 1000+ users |
| Retail browsing | Variable | Consistently fast |
Customer Experience Enhancement:
AR shopping experiences need low latency
Virtual try-on features require bandwidth
Location-based promotions must be instant
Social media sharing while shopping
ROI Comparison:
Wi-Fi 6 ROI: 12-18 months
Wi-Fi 6E ROI: 24-36 months
Premium experience justifies higher prices
Enables cutting-edge retail tech
Attracts tech-savvy customers
Manufacturing and Warehousing
These environments demand reliability above all else. Downtime costs thousands per minute.
Industrial IoT Deployment:
Wi-Fi 6E excels here. Why?
Thousands of sensors need connectivity
6 GHz band avoids 2.4 GHz industrial interference
Predictable performance for automation
Network slicing keeps systems isolated
Automation System Requirements:
Ultra-low latency for robotic controls
High reliability – 99.999% uptime
Massive device support – 500+ per access point
Security – isolated from office networks
Performance in Harsh Environments:
| Challenge | Wi-Fi 6 Solution | Wi-Fi 6E Advantage |
| Metal interference | Struggles | Better penetration |
| Equipment noise | Significant impact | Clean spectrum |
| Temperature extremes | Standard operation | Same reliability |
| Dust/moisture | Protected APs needed | Protected APs needed |
Network Segmentation Benefits: • Production lines on 6 GHz • Office work on 5 GHz
• IoT sensors on 2.4 GHz • Complete isolation between critical systems
Home and Gaming
Modern homes aren't just homes anymore. They're entertainment centers, offices, and gaming arenas.
Streaming Capabilities Compared:
| Content Type | Wi-Fi 6 Support | Wi-Fi 6E Support |
| 4K Streaming | 3-4 simultaneous | 8-10 simultaneous |
| 8K Streaming | 1-2 streams | 4-5 streams |
| Live Broadcasting | Possible | Professional quality |
| Cloud Gaming | Playable | Competition-ready |
AR/VR Gaming Requirements:
Latency under 20ms prevents motion sickness
50-100 Mbps sustained bandwidth
Rock-solid connection stability
Wi-Fi 6E delivers all three consistently
Smart Home Device Support:
Your home might have: • Smart lights, thermostats, cameras • Voice assistants in every room • Connected appliances • Entertainment systems
Wi-Fi 6 handles 50+ devices well. Wi-Fi 6E handles 100+ without breaking a sweat.
Multi-User Household Scenarios:
Typical Evening at Home:
Wi-Fi 6 might stutter. Wi-Fi 6E won't even notice the load.
Infrastructure Requirements: Wi-Fi 6 vs Wi-Fi 6E
Hardware Upgrade Needs
Upgrading to Wi-Fi 6 or 6E isn't just about buying a new router. It's a bigger project than most people think.
Router and Access Point Requirements:
| Component | Wi-Fi 6 Needs | Wi-Fi 6E Needs |
| Router Type | Dual-band (2.4/5 GHz) | Tri-band (2.4/5/6 GHz) |
| Minimum Specs | 4x4 MIMO support | 4x4 MIMO + 6 GHz radio |
| Price Range | $150-$500 | $400-$1,500 |
| Availability | Widely available | Limited selection |
Your current router probably won't cut it. Wi-Fi 6E routers need that extra radio for 6 GHz. They're essentially three routers in one box.
Switch and Network Backbone Considerations:
Think beyond the wireless part. Your wired network matters too:
• Switch Requirements:
2.5 Gbps ports minimum
10 Gbps uplinks recommended
PoE+ support for access points
Managed switches for VLANs
• Cabling Needs:
Cat 6 minimum for full speeds
Cat 6a for future-proofing
Existing Cat 5e limits performance
Fiber for backbone connections
Client Device Compatibility Check:
Here's the reality check:
| Device Category | Wi-Fi 6 Support | Wi-Fi 6E Support |
| iPhones | iPhone 11+ | iPhone 15 Pro+ |
| Samsung phones | Galaxy S10+ | Galaxy S21 Ultra+ |
| Laptops | Most 2020+ models | Select 2021+ models |
| Smart TVs | Many 2021+ models | Samsung/Vizio 2021+ |
| Gaming consoles | PS5, Xbox Series X | Not yet |
| IoT devices | Growing support | Rare |
Most of your devices probably support Wi-Fi 6. Few support 6E yet.
Cost Comparison for Upgrades:
Let's talk real numbers for different scenarios:
Small Home/Office (1-2 APs):
Medium Business (10-20 APs):
Large Enterprise (100+ APs):
Wi-Fi 6: $50,000-$150,000
Wi-Fi 6E: $150,000-$400,000
These include routers, switches, installation. Labor costs extra.
Planning Your Network Upgrade
Jumping into an upgrade without planning? That's asking for trouble.
Assessment Checklist:
Before spending a dime, answer these:
Current Network Audit
How many devices connect now?
What's your peak bandwidth usage?
Where are the dead zones?
Which applications need priority?
Future Needs Analysis
Infrastructure Readiness
User Requirements
Budget Considerations:
Smart budgeting goes beyond hardware costs:
| Budget Item | Percentage of Total | Notes |
| Hardware | 40-50% | Routers, APs, switches |
| Installation | 20-30% | Professional setup |
| Cabling | 10-20% | Often underestimated |
| Training | 5-10% | IT staff education |
| Contingency | 10-15% | Always needed |
Hidden costs people forget:
Timeline for Implementation:
Realistic timelines prevent disasters:
Small Deployments (Under 10 APs):
Planning: 2-4 weeks
Procurement: 1-2 weeks
Installation: 1 week
Testing: 1 week
Total: 5-8 weeks
Medium Deployments (10-50 APs):
Large Deployments (50+ APs):
Vendor Selection Criteria:
Choosing the right vendor makes or breaks your project:
Technical Criteria:
Product range – Full ecosystem available?
Performance specs – Real-world testing data?
Management tools – Cloud-based options?
Security features – WPA3, network segmentation?
Business Criteria: • Warranty terms (3+ years preferred) • Local support availability • Training programs offered • Upgrade paths clear • References from similar deployments
Red Flags to Avoid:
No local support presence
Unclear roadmaps for 6E
Limited enterprise features
Poor management interfaces
No migration tools
Compare at least three vendors. Get demos. Test equipment in your environment if possible.
Cost Analysis: Wi-Fi 6 vs Wi-Fi 6E Investment
Initial Investment Comparison
Money talks. Let's see what these upgrades really cost.
Equipment Costs Breakdown:
| Equipment Type | Wi-Fi 6 Cost | Wi-Fi 6E Cost | Price Difference |
| Home Router | $150-$500 | $400-$800 | 2.5x more |
| Business AP | $300-$600 | $800-$1,500 | 2.7x more |
| Enterprise Switch | $2,000-$5,000 | $3,000-$8,000 | 1.5x more |
| Network Cards | $30-$50 | $80-$150 | 3x more |
The price gap is real. Wi-Fi 6E equipment costs significantly more across the board.
Real-World Deployment Examples:
Small Office (20 users):
Wi-Fi 6: $2,500-$5,000
Wi-Fi 6E: $7,000-$12,000
Medium Business (100 users):
Large Enterprise (500+ users):
Wi-Fi 6: $75,000-$150,000
Wi-Fi 6E: $200,000-$400,000
Installation and Setup Expenses:
Installation isn't just plugging things in. Professional setup matters:
• Site Survey Costs:
• Labor Rates:
Standard installation: $150-$250/hour
6E requires 20-30% more time
Certification adds $500-$1,000 per technician
• Configuration Time:
Training Requirements:
Your IT team needs new skills:
| Training Type | Duration | Cost per Person |
| Wi-Fi 6 Basics | 2 days | $500-$1,000 |
| Wi-Fi 6E Advanced | 5 days | $2,000-$3,500 |
| Vendor Certification | 1 week | $3,000-$5,000 |
| Ongoing Education | Monthly | $100-$200/month |
Don't skip training. Improper setup wastes your investment.
Hidden Costs to Consider:
These surprises catch people off guard:
1. Infrastructure Updates
Power over Ethernet upgrades: $100-$200 per port
Cabling replacement: $150-$300 per run
Electrical capacity increases: $5,000-$15,000
2. Licensing Fees
Management software: $50-$100 per AP annually
Security subscriptions: $1,000-$5,000 yearly
Cloud management: $20-$50 per device
3. Testing Equipment
6 GHz spectrum analyzer: $15,000-$30,000
Certification tools: $5,000-$10,000
Ongoing calibration: $1,000 annually
4. Downtime Costs
Lost productivity during migration
Overtime for weekend installations
Temporary equipment rentals
Long-term ROI Considerations
Initial costs sting. But what about the payback?
Performance Improvements Value:
Quantifying performance gains in dollars:
| Improvement | Wi-Fi 6 Impact | Wi-Fi 6E Impact | Annual Value |
| Reduced Downtime | 20% less | 40% less | $10K-$50K |
| Productivity Gains | 15% boost | 25% boost | $25K-$100K |
| Customer Satisfaction | 10% increase | 20% increase | $15K-$75K |
| IT Support Reduction | 15% fewer calls | 30% fewer calls | $5K-$25K |
Real Business Impact Examples:
Hospital: 50% faster medical image transfers saves 2 hours daily
Retail: 30% faster checkout increases sales by $50K monthly
School: Better connectivity reduces help desk tickets by 40%
Future-Proofing Benefits:
Think beyond today's needs:
Wi-Fi 6 Future-Proofing (3-5 years): • Handles current device growth • Supports 4K streaming expansion • Manages IoT proliferation • Works with most upcoming devices
Wi-Fi 6E Future-Proofing (5-8 years): • Ready for 8K content • AR/VR mainstream adoption • Metaverse applications • Whatever 2030 brings
Technology Lifespan Comparison:
Wi-Fi 5 networks: Now feeling outdated (7 years old)
Wi-Fi 6 networks: Good until 2028-2030
Wi-Fi 6E networks: Viable through 2032-2035
Maintenance Cost Differences:
Long-term maintenance adds up:
| Maintenance Item | Wi-Fi 6 Annual Cost | Wi-Fi 6E Annual Cost |
| Firmware Updates | Standard complexity | More frequent updates |
| Hardware Failures | 2-3% failure rate | 2-3% failure rate (higher replacement cost) |
| Support Contracts | $100-$200 per AP | $150-$300 per AP |
| Troubleshooting Time | 20 hours/month | 15 hours/month |
Wi-Fi 6E's cleaner spectrum means fewer interference issues. IT teams spend less time chasing problems.
Energy Efficiency Comparison:
Power costs matter for large deployments:
Power Consumption: • Wi-Fi 6 AP: 15-25 watts typical • Wi-Fi 6E AP: 20-30 watts typical
Annual Energy Costs (100 APs):
Wi-Fi 6: $2,000-$3,500
Wi-Fi 6E: $2,500-$4,200
But there's more to the story:
Efficiency Features:
TWT saves 30% on client devices
Better spectrum use means lower transmission power
Smart scheduling reduces active time
6E devices finish tasks faster, then sleep
Total Cost of Ownership (5 years):
| Deployment Size | Wi-Fi 6 TCO | Wi-Fi 6E TCO | Break-even Point |
| Small (10 APs) | $15,000 | $35,000 | Never |
| Medium (50 APs) | $125,000 | $225,000 | Year 4-5 |
| Large (200 APs) | $450,000 | $750,000 | Year 3-4 |
The break-even depends on how much you value performance improvements and future readiness.

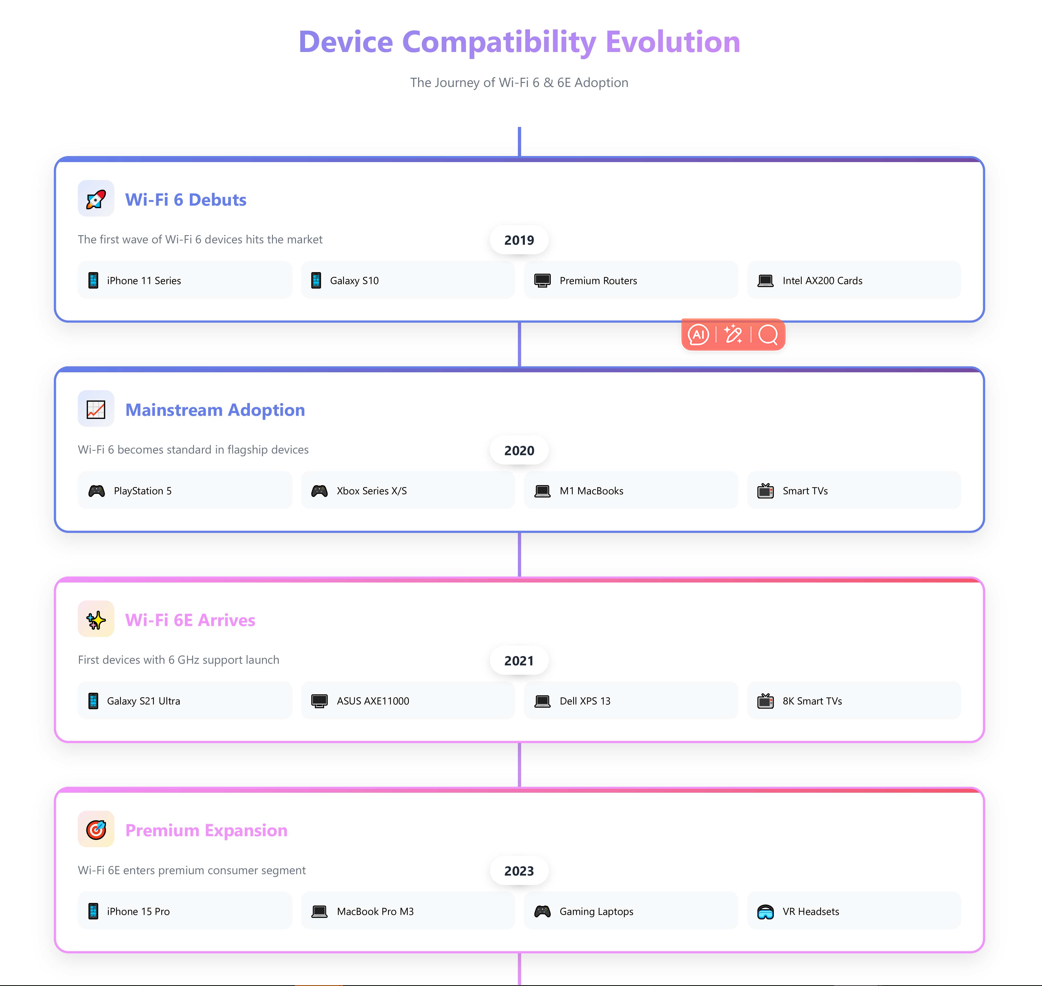

Device Compatibility and Availability
Current Wi-Fi 6 Device Ecosystem
Wi-Fi 6 has hit the mainstream. Most devices you buy today support it.
Smartphones and Tablets:
The adoption started with flagship phones. Now it's everywhere:
| Brand | Wi-Fi 6 Support Started | Current Status |
| Apple | iPhone 11 (2019) | All models since iPhone 11 |
| Samsung | Galaxy S10 (2019) | All S, Note, and A-series |
| Google | Pixel 4 (2019) | All Pixels since |
| OnePlus | OnePlus 8 (2020) | Standard on all models |
| iPad | iPad Pro 2020 | All iPads except base model |
Even budget phones now include Wi-Fi 6. You probably already own compatible devices.
Laptops and Computers:
The laptop market embraced Wi-Fi 6 quickly:
• Windows Laptops
Intel 11th gen+ CPUs include it
AMD Ryzen 4000+ series have it
Most $600+ laptops from 2020 onward
Gaming laptops adopted first
• Apple Computers
• Desktop Compatibility
Smart Home Devices:
Smart home adoption varies wildly:
| Device Category | Wi-Fi 6 Adoption | Examples |
| Smart TVs | High (70%+) | LG, Samsung 2021+ models |
| Security Cameras | Growing (40%) | Arlo Pro 4, Ring newer models |
| Smart Speakers | Limited (20%) | Some Echo and Nest models |
| Smart Bulbs | Rare (5%) | Few premium options |
| Thermostats | Minimal | Mostly use 2.4 GHz |
Most IoT devices stick to 2.4 GHz. They prioritize battery life over speed.
Gaming Consoles:
Gamers got lucky with timing:
PlayStation 5: Full Wi-Fi 6 support
Xbox Series X/S: Wi-Fi 6 built-in
Steam Deck: Wi-Fi 6 compatible
Nintendo Switch: Still on Wi-Fi 5
Cloud gaming makes Wi-Fi 6 essential. Lower latency means better gameplay.
Wi-Fi 6E Device Landscape
Wi-Fi 6E remains exclusive territory. Early adopters pay premium prices.
Early Adopter Devices:
Samsung led the charge:
Smartphones First to Market:
Samsung Galaxy S21 Ultra (January 2021)
Samsung Galaxy S22 series
Google Pixel 6 Pro
ASUS ROG Phone 6
iPhone 15 Pro/Pro Max
The pattern is clear. Only flagship phones get 6E.
Current Availability by Brand:
| Brand | Wi-Fi 6E Models | Starting Price |
| Samsung | S21 Ultra+, Z Fold 3+ | $800+ |
| Apple | iPhone 15 Pro series | $999+ |
| Google | Pixel 6 Pro, 7 Pro, 8 Pro | $699+ |
| ASUS | ROG and Zenfone flagships | $600+ |
| OnePlus | OnePlus 10 Pro+ | $700+ |
Premium Laptop Options:
Wi-Fi 6E laptops target professionals and gamers:
• Gaming Laptops
• Professional Laptops
• Creator Laptops
MacBook Pro 14"/16" (M3)
ASUS ProArt Studiobook
MSI Creator series
Smart TV Compatibility:
TV manufacturers jumped on 6E early:
Current Wi-Fi 6E TVs:
Samsung Neo QLED 8K (2021+)
Samsung QLED 4K (select 2022+ models)
Vizio M-Series and V-Series
LG OLED (2023+ flagships)
Sony Bravia XR (select models)
Why TVs? They stream massive 8K files. The 6 GHz band prevents buffering.
Expected Device Roadmap:
Here's what's coming:
2024-2025 Timeline:
| Quarter | Expected Releases |
| Q1 2024 | More Android flagships |
| Q2 2024 | Mid-range phones start adoption |
| Q3 2024 | Budget laptops under $1000 |
| Q4 2024 | Smart home devices emerge |
| 2025 | Mainstream adoption begins |
Categories to Watch:
VR/AR Headsets - Apple Vision Pro leads
Tablets - iPad Pro expected soon
Gaming Handhelds - Next-gen portables
Smart Home Hubs - Matter-compatible devices
Automotive - In-car entertainment systems
Adoption Predictions:
The pattern follows previous WiFi generations:
Year 1-2 (2021-2022): Premium devices only
Year 3-4 (2023-2024): Mid-range adoption
Year 5-6 (2025-2026): Budget devices
Year 7+ (2027+): Universal standard
We're currently in Year 3. Prices are dropping but slowly.
What's Holding Back Adoption?
Several factors slow 6E growth: • Chip costs remain high • Most users don't need 6 GHz yet • Wi-Fi 6 satisfies current needs • Limited router availability • No killer app requiring 6E
The chicken-and-egg problem continues. People won't buy 6E routers without devices. Device makers won't add 6E without router adoption.
Making the Choice: Wi-Fi 6 or Wi-Fi 6E?
Decision Factors to Consider
Choosing between Wi-Fi 6 and 6E isn't simple. Your specific situation matters most.
Current Network Congestion Levels:
Check your environment first:
| Congestion Level | Signs You'll Notice | Best Choice |
| Low | Smooth streaming, no complaints | Wi-Fi 6 |
| Medium | Occasional slowdowns at peak times | Wi-Fi 6 |
| High | Constant buffering, dropped connections | Wi-Fi 6E |
| Extreme | Network unusable during busy hours | Wi-Fi 6E |
How do you measure congestion? Use a Wi-Fi analyzer app. Count the networks you see. More than 20? You're in a congested area.
Budget Constraints:
Let's be realistic about costs:
• Tight Budget ($500-2,000)
• Moderate Budget ($2,000-10,000)
• Generous Budget ($10,000+)
Future Growth Expectations:
Think 3-5 years ahead:
| Growth Factor | Questions to Ask | Impact on Choice |
| Device Count | Doubling in 2 years? | 6E handles growth better |
| Bandwidth Needs | 4K to 8K transition? | 6E prevents bottlenecks |
| New Applications | AR/VR planned? | 6E delivers required speed |
| User Density | Adding more people? | 6E manages crowds |
Application Requirements:
Your use case drives the decision:
Wi-Fi 6 Handles Well:
Video conferencing
4K streaming
Standard office work
Most gaming needs
Smart home basics
Wi-Fi 6E Excels At:
8K content delivery
Real-time AR/VR
Massive file transfers
Ultra-low latency needs
Dense IoT deployments
Who Should Choose Wi-Fi 6?
Wi-Fi 6 makes sense for many situations. It's the practical choice.
Small to Medium Businesses:
Why Wi-Fi 6 works here:
Handles 50-200 users easily
Supports modern business apps
Costs align with SMB budgets
IT teams know the technology
Typical SMB Scenario:
Office Size: 5,000-20,000 sq ft
Users: 25-150 people
Devices: 100-500 total
Budget: Limited
Result: Wi-Fi 6 delivers everything needed
Home Users with Moderate Needs:
Perfect for families who: • Stream on multiple devices • Work from home occasionally • Play online games • Use smart home devices • Want reliable connectivity
You don't need 6E for Netflix and Zoom. Wi-Fi 6 handles typical home use perfectly.
Organizations with Legacy Device Fleets:
Large device inventories create challenges:
| Device Age | Percentage of Fleet | Wi-Fi 6 Benefit |
| 0-2 years | 30% | Full support |
| 3-5 years | 40% | Works great |
| 5+ years | 30% | Still compatible |
Wi-Fi 6's backward compatibility preserves your investment. Those old barcode scanners? They'll keep working.
Budget-Conscious Deployments:
Wi-Fi 6 delivers value:
Cost Advantages:
Equipment costs 50-70% less than 6E
Installation simpler and faster
Training requirements minimal
Proven reliability reduces support costs
ROI Timeline:
Payback period: 12-18 months
Performance improvement: 4x over Wi-Fi 5
User satisfaction: Significant increase
Future viability: 5+ years
Who Should Choose Wi-Fi 6E?
Some situations demand the best. Wi-Fi 6E delivers peak performance.
High-Density Environments:
These spaces need 6E's capacity:
• Stadiums and Arenas
Thousands of simultaneous users
Everyone streaming and posting
Clean spectrum prevents collapse
Consistent experience for all
• Convention Centers
Dense crowds with multiple devices
Exhibitors need reliable connections
Press requires fast uploads
No interference between booths
• University Campuses
Lecture halls with 500+ students
Dormitories packed with devices
Research labs with heavy data needs
Future-ready infrastructure
Mission-Critical Applications:
When failure isn't an option:
| Application | Why 6E Matters | Real Impact |
| Surgical Robotics | Zero latency tolerance | Lives depend on it |
| Financial Trading | Milliseconds = money | Faster execution |
| Live Broadcasting | No buffering allowed | Reputation on line |
| Industrial Automation | Consistent performance | Production continuity |
Future-Focused Organizations:
Forward-thinking groups choose 6E:
Technology Leaders:
Innovation Requirements:
Testing 8K workflows today
Developing AR/VR applications
Building metaverse experiences
Creating tomorrow's technology
Premium Home Installations:
Luxury homes deserve premium networks:
• Home Theater Excellence
Multiple 8K displays
Immersive audio systems
Gaming rooms with VR
Zero tolerance for lag
• Smart Home Integration
100+ connected devices
Professional automation
Security systems
Whole-home audio/video
• Home Office Requirements
These homes typically have:
Professional installation
Generous technology budgets
Early adopter mindset
Appreciation for performance
Future Outlook: Beyond Wi-Fi 6 and 6E
Wi-Fi 7 on the Horizon
Technology never stops. Wi-Fi 7 is already knocking on the door.
Expected Features and Improvements:
Wi-Fi 7 (802.11be) promises mind-blowing upgrades:
| Feature | Wi-Fi 6E Current | Wi-Fi 7 Promise | Real-World Impact |
| Maximum Speed | 9.6 Gbps | 46 Gbps | 5x faster downloads |
| Channel Width | 160 MHz | 320 MHz | Double the highway |
| Latency | 8-10ms | Under 2ms | Instant response |
| Multi-Link Operation | Single band | All bands simultaneously | No dead zones |
The biggest game-changer? Multi-Link Operation (MLO). Your device connects on all bands at once. It's like having three internet connections working together.
Key Innovations Coming: • 4K QAM - Packs more data per signal • Punctured Transmission - Uses spectrum gaps others can't • Enhanced MU-MIMO - 16 streams vs 8 today • Coordinated AP - Routers work as a team
Timeline for Availability:
The rollout follows a predictable pattern:
2024-2025 Timeline:
Q1 2024: Final specification release
Q2 2024: First chipsets announced
Q3 2024: Premium routers launch ($1,000+)
Q4 2024: Early adopter devices appear
2025: Broader device support
Device Adoption Phases:
| Phase | Timeframe | Expected Devices | Price Premium |
| Pioneer | 2024 | Flagship phones, gaming routers | 300% over Wi-Fi 6E |
| Early | 2025 | Premium laptops, TVs | 200% premium |
| Growth | 2026-2027 | Mid-range devices | 50% premium |
| Mainstream | 2028+ | Most new devices | Minimal |
How It Relates to 6 and 6E:
Wi-Fi 7 builds on existing foundations:
Compatibility Story:
Uses same bands (2.4, 5, 6 GHz)
Backward compatible with 6/6E
Enhances rather than replaces
Your 6E devices keep working
Performance Comparison:
Wi-Fi 6: Reliable workhorse
Wi-Fi 6E: Performance champion
Wi-Fi 7: Future unleashed
Think of it like cars. Wi-Fi 6 is your reliable sedan. 6E is the sports car. Wi-Fi 7? That's the hypercar.
Market Trends and Predictions
The wireless landscape is shifting fast. Here's what's coming.
Adoption Rate Forecasts:
History shows us the pattern:
| Technology | Years to 50% Adoption | Current Status |
| Wi-Fi 5 (ac) | 5 years | 85% penetration |
| Wi-Fi 6 | 3 years (faster) | 60% and growing |
| Wi-Fi 6E | 5-6 years (projected) | 5% currently |
| Wi-Fi 7 | 4-5 years (estimated) | 0% (not released) |
Market Share Predictions by 2027:
Wi-Fi 5 and older: 15%
Wi-Fi 6: 45%
Wi-Fi 6E: 25%
Wi-Fi 7: 15%
The pandemic accelerated adoption. Remote work made good Wi-Fi essential.
Price Trend Analysis:
Prices follow predictable curves:
Current Price Trends: • Wi-Fi 6 prices dropped 70% since 2019 • Wi-Fi 6E premiums shrinking slowly • Entry-level 6E routers appearing • Competition drives affordability
Price Predictions:
| Year | Wi-Fi 6 Router | Wi-Fi 6E Router | Wi-Fi 7 Router |
| 2024 | $50-200 | $300-600 | $800-1500 |
| 2025 | $40-150 | $200-400 | $500-1000 |
| 2026 | $30-120 | $150-300 | $300-700 |
| 2027 | $25-100 | $100-250 | $200-500 |
Factors Affecting Prices:
Chip production scaling up
More manufacturers entering
Previous generation clearances
Market competition intensifying
Technology Convergence Expectations:
Everything's merging together:
5G and Wi-Fi Integration:
Seamless handoffs between networks
Unified authentication systems
Combined coverage solutions
Single devices, multiple radios
IoT Evolution: • Matter standard unifying smart homes • Wi-Fi replacing proprietary protocols • Direct device-to-device communication • Energy harvesting for sensors
AI Integration:
Edge Computing Growth:
| Trend | Impact on Wi-Fi | Timeline |
| Local Processing | Reduced cloud dependence | Now |
| AR/VR Computing | Demands ultra-low latency | 2024-2025 |
| AI Workloads | Needs consistent bandwidth | 2025-2026 |
| Metaverse Apps | Requires 6E/7 speeds | 2026+ |
Industry Convergence Points:
Watch these developments:
2024-2025:
Smartphones become primary computers
TVs merge with gaming systems
Cars become rolling hotspots
Homes get smarter, not just connected
2026-2027:
Augmented reality goes mainstream
Work and play boundaries blur
Physical and digital merge
Connectivity becomes invisible
The future isn't about choosing between technologies. It's about them working together seamlessly.
Frequently Asked Questions About Wi-Fi 6 vs 6E
Technical FAQs
Can Wi-Fi 6 devices use Wi-Fi 6E networks?
Yes and no. It's complicated but not really.
Wi-Fi 6 devices can connect to Wi-Fi 6E routers. But they can't access the 6 GHz band. They'll use the 2.4 GHz and 5 GHz bands instead.
Think of it like this:
Wi-Fi 6E router = Three-lane highway (2.4, 5, and 6 GHz)
Wi-Fi 6 device = Can only use two lanes
Still gets full Wi-Fi 6 speeds on those lanes
| Device Type | Router Type | What Happens |
| Wi-Fi 6 device | Wi-Fi 6E router | Uses 2.4/5 GHz only |
| Wi-Fi 6E device | Wi-Fi 6E router | Uses all three bands |
| Wi-Fi 6E device | Wi-Fi 6 router | Works as Wi-Fi 6 device |
| Old device | Either router | Uses 2.4/5 GHz with older standard |
Do I need new cables for Wi-Fi 6E?
Your existing cables probably work fine. But there's a catch.
Cable Requirements: • Cat 5e - Works but limits you to 1 Gbps • Cat 6 - Handles 2.5 Gbps, good for most • Cat 6a - Supports 10 Gbps, future-proof • Cat 7/8 - Overkill for most situations
The real question: Can your cables handle the speeds?
When to Upgrade Cables:
Running 2.5 Gbps or faster internet
Distances over 55 meters
Heavy interference areas
Installing new runs anyway
What's the actual range difference?
Higher frequencies mean shorter range. Physics wins every time.
| Frequency | Typical Indoor Range | Through Walls |
| 2.4 GHz | 150-200 feet | 2-3 walls |
| 5 GHz | 100-150 feet | 1-2 walls |
| 6 GHz | 80-120 feet | 1 wall |
Real-World Impact:
6 GHz won't reach your backyard
Apartment dwellers might not care
Large homes need more access points
Mesh systems become more important
Speed vs range trade-off exists. You can't have both.
How many devices can each support?
Both standards handle crowds well. Here's the breakdown:
Theoretical Limits:
Wi-Fi 6: 1,024 devices per access point
Wi-Fi 6E: 1,024 devices per access point
Practical Reality:
| Environment | Wi-Fi 6 Realistic | Wi-Fi 6E Realistic |
| Home Use | 50-75 devices | 100+ devices |
| Small Office | 75-100 devices | 150+ devices |
| Enterprise | 100-150 devices | 200+ devices |
Why does 6E handle more? The 6 GHz band spreads devices across more spectrum. Less crowding means better performance for everyone.
Practical FAQs
Is Wi-Fi 6E worth the extra cost?
Depends on your situation. Let's break it down:
Wi-Fi 6E is worth it if: • You live in an apartment building • Your neighborhood has Wi-Fi congestion • You stream 8K or do VR gaming • Money isn't a major concern • You keep routers 5+ years
Wi-Fi 6E isn't worth it if: • You live in a rural area • Your internet is under 500 Mbps • You're happy with current speeds • Budget is tight • Few devices support 6E
Cost vs Benefit Analysis:
| Factor | Wi-Fi 6 | Wi-Fi 6E | Winner |
| Initial Cost | $150-300 | $400-800 | Wi-Fi 6 |
| Performance | Great | Amazing | Wi-Fi 6E |
| Device Support | Excellent | Limited | Wi-Fi 6 |
| Future-Proofing | 3-5 years | 5-8 years | Wi-Fi 6E |
When should I upgrade from Wi-Fi 6 to 6E?
Don't rush. Wi-Fi 6 still rocks.
Upgrade Timeline Indicators:
Now - Experiencing severe congestion
1-2 years - Half your devices support 6E
2-3 years - Prices drop significantly
3-4 years - Wi-Fi 6 feels limiting
Never - If Wi-Fi 6 meets all needs
Signs You're Ready: • Constant buffering despite good internet • Network unusable during peak hours • Neighbors' networks interfering • New devices support 6E • Found a great deal
Will my ISP speed benefit from Wi-Fi 6E?
Maybe. Your internet speed and Wi-Fi speed aren't the same thing.
When ISP Speed Benefits:
| ISP Speed | Wi-Fi 6 Sufficient? | 6E Advantage? |
| Under 500 Mbps | Yes, easily | No real benefit |
| 500 Mbps - 1 Gbps | Yes, mostly | Slight improvement |
| 1-2 Gbps | Sometimes struggles | Clear advantage |
| 2+ Gbps | Often bottlenecks | Essential |
The Real Benefits:
Less congestion from neighbors
Better performance with multiple users
Lower latency for gaming
Cleaner spectrum for streaming
It's not just about matching ISP speeds. It's about consistent performance.
Can I mix Wi-Fi 6 and 6E access points?
Absolutely. Mixed deployments work great.
Smart Mixing Strategies:
• High-Traffic Areas - Use Wi-Fi 6E
• General Coverage - Wi-Fi 6 is fine
Bedrooms
Hallways
Guest areas
How It Works:
Devices roam between APs automatically
6E devices prefer 6E access points
Older devices use whatever's available
Single network name (SSID) for all
Business Deployment Example:
| Location | Access Point Type | Reason |
| Conference Rooms | Wi-Fi 6E | Dense device usage |
| Open Office | Wi-Fi 6E | High user count |
| Warehouse | Wi-Fi 6 | IoT devices only |
| Break Room | Wi-Fi 6 | Light usage |
This approach saves money. You get performance where needed without overspending.
Conclusion: Making the Right Choice Between Wi-Fi 6 and Wi-Fi 6E
Wi-Fi 6 and Wi-Fi 6E both offer impressive upgrades. But they serve different needs.
Wi-Fi 6 brings faster speeds, better device handling, and improved battery life. It works with everything you own. Wi-Fi 6E adds the pristine 6 GHz band, delivering blazing speeds and zero interference. But it costs more and needs compatible devices.
Your choice depends on three factors: budget, environment, and future plans. Live in a crowded apartment? Wi-Fi 6E stops neighbor interference. Running a small business? Wi-Fi 6 handles most needs perfectly. Building a smart home? Consider how many devices you'll add.
For most people, Wi-Fi 6 delivers plenty of performance at reasonable prices. Choose Wi-Fi 6E if you need cutting-edge speeds, face severe congestion, or want to future-proof for 5+ years.
Your Next Steps:
Take 5 minutes to assess your situation:
Count your connected devices
Check for network congestion
Test current speeds during peak hours
List your must-have applications
Set a realistic budget
The right choice becomes clear when you understand your actual needs.
