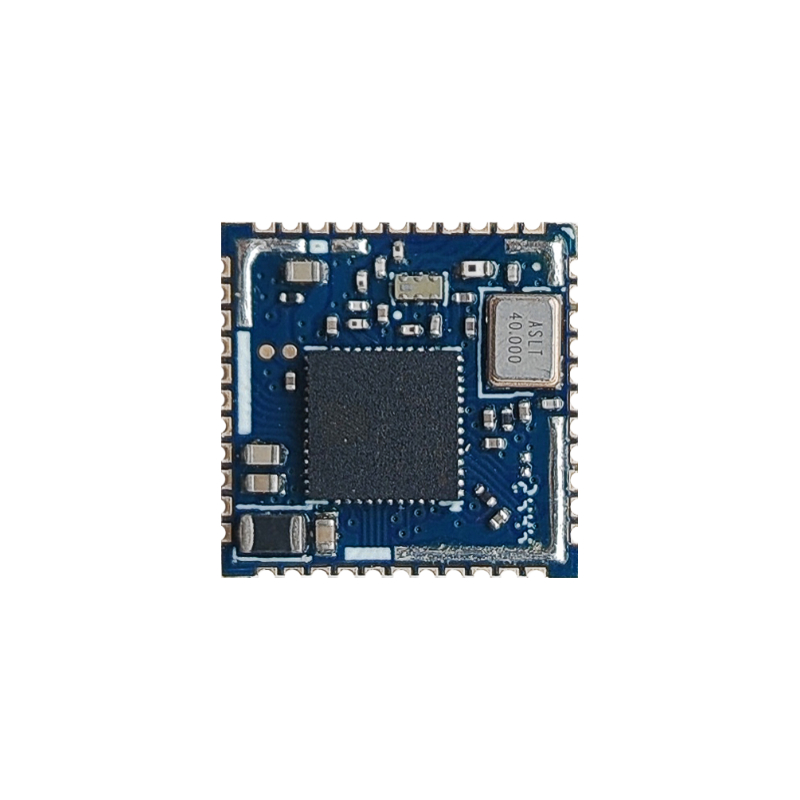

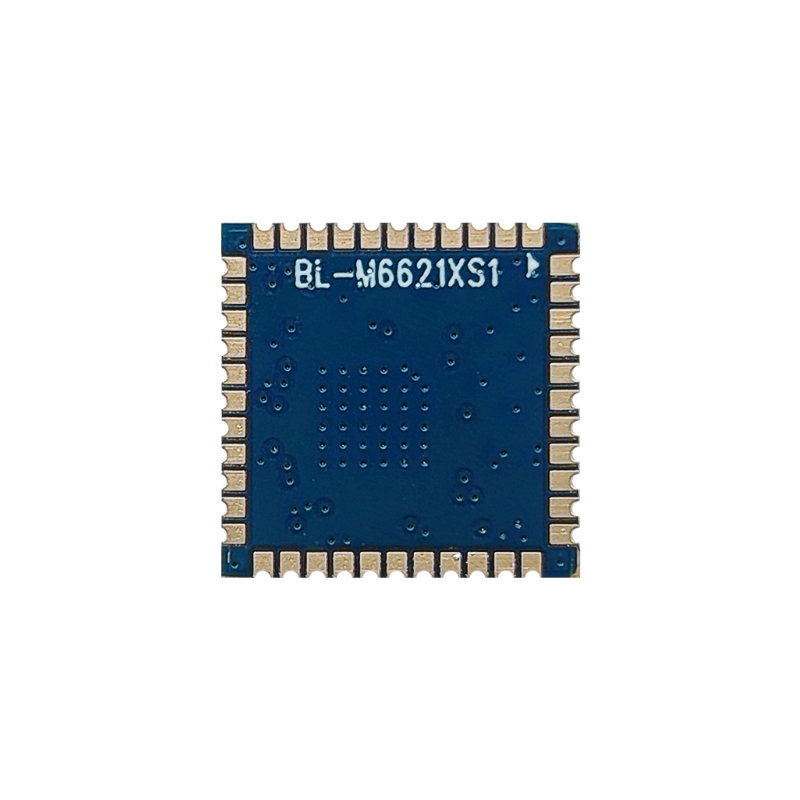

BL-M6621XS1
LB-LINK
V5.4
1T1R
SDIO Interface
Introduction
BL-M6621XS1 is a highly integrated Dual-band WLAN+ B v5.4 Combo module. It combines a 1T1R Dual-band WLAN subsystem and a B v5.4 subsystem. This module compatible IEEE 802.11 a/b/g/n/ac/ax standard and provides the maximum PHY rate up to 287Mbps, it supports B/B dual mode with B v5.4/v4.2/v3.0/v2.1 compliant, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective, high throughput from an extended distance.
Features
Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz
Wireless PHY rate can reach up to 287Mbps with 20/40MHz bandwidth
Host Interfaces are SDIO3.0 or USB2.0,the two interfaces are optional and cannot be used together
Support STA, AP, WLAN Direct modes concurrently
Block Diagram
General Specifications
Module Name | BL-M6621XS1 |
Chipset | SWT6621-SH |
WLAN Standards | IEEE802.11a/b/g/n/ac/ax |
BT Specification | B Core Specification v5.4/v4.2/v3.0/v2.1 |
Host Interface | SDIO for WLAN & UART for B or USB for WLAN + B |
Antenna | |
Dimension | 12.0*12.0*1.7mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H) |
Power Supply | 3.3V±0.3V main power supply @1A (Max) 3.3V±0.3V or 1.8V±0.2V I/O power supply |
Operation Temperature | -20℃ to +70℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |
Product Dimension
Module dimension: 12.0*12.0*1.7mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
Package Dimensions
Package specification:
1. 1,000 modules per roll and 5,000 modules per box.
2. Outer box size: 37.5*36*29cm.
3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 28mm (with a width of 24mm carrying belt).
4. Put 1 package of dry agent (20g) and 1 humidity card in each anti-static vacuum bag.
5. Each carton is packed with 5 boxes.
Introduction
BL-M6621XS1 is a highly integrated Dual-band WLAN+ B v5.4 Combo module. It combines a 1T1R Dual-band WLAN subsystem and a B v5.4 subsystem. This module compatible IEEE 802.11 a/b/g/n/ac/ax standard and provides the maximum PHY rate up to 287Mbps, it supports B/B dual mode with B v5.4/v4.2/v3.0/v2.1 compliant, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective, high throughput from an extended distance.
Features
Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz
Wireless PHY rate can reach up to 287Mbps with 20/40MHz bandwidth
Host Interfaces are SDIO3.0 or USB2.0,the two interfaces are optional and cannot be used together
Support STA, AP, WLAN Direct modes concurrently

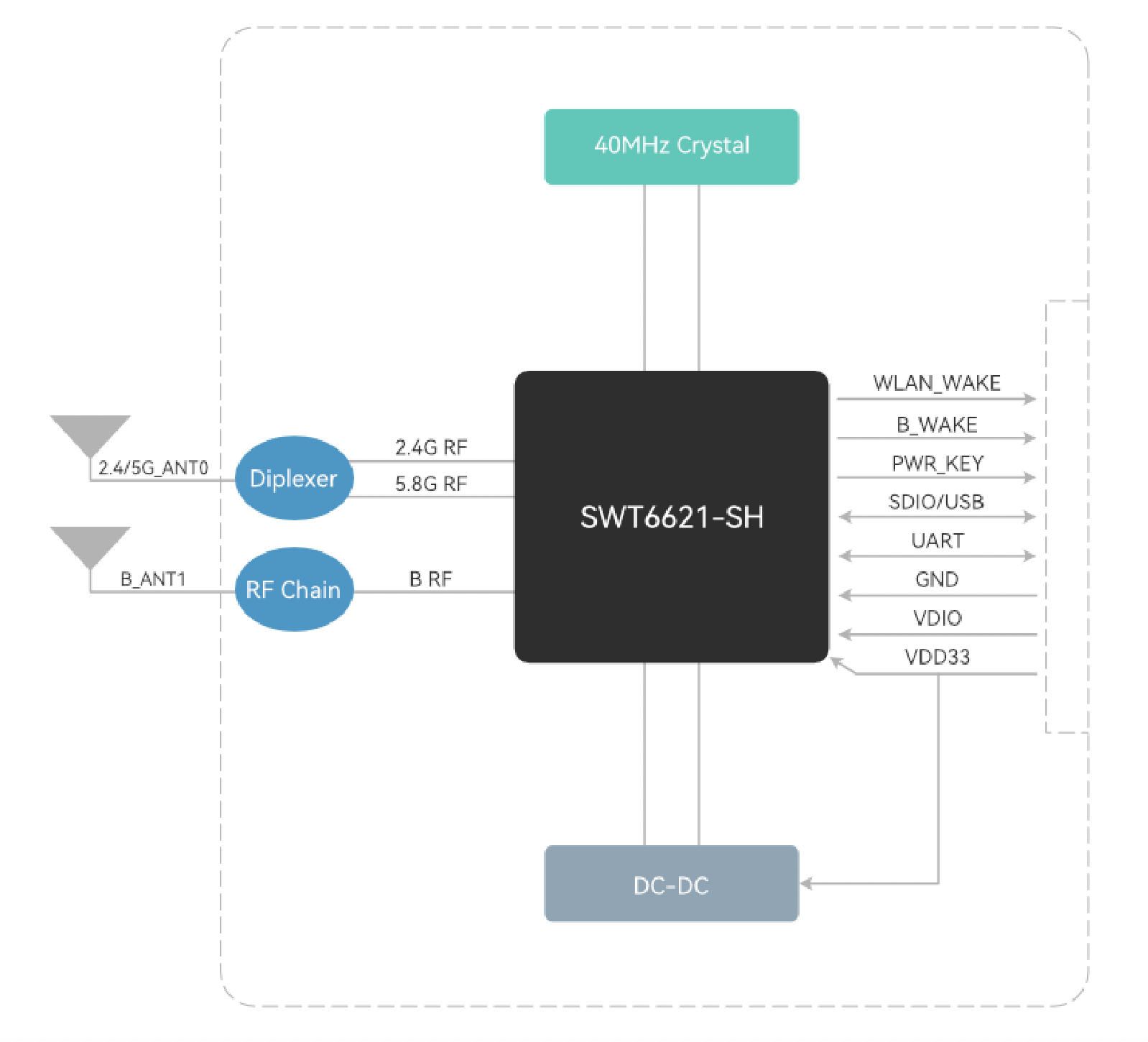

Block Diagram
General Specifications
Module Name | BL-M6621XS1 |
Chipset | SWT6621-SH |
WLAN Standards | IEEE802.11a/b/g/n/ac/ax |
BT Specification | B Core Specification v5.4/v4.2/v3.0/v2.1 |
Host Interface | SDIO for WLAN & UART for B or USB for WLAN + B |
Antenna | |
Dimension | 12.0*12.0*1.7mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H) |
Power Supply | 3.3V±0.3V main power supply @1A (Max) 3.3V±0.3V or 1.8V±0.2V I/O power supply |
Operation Temperature | -20℃ to +70℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |

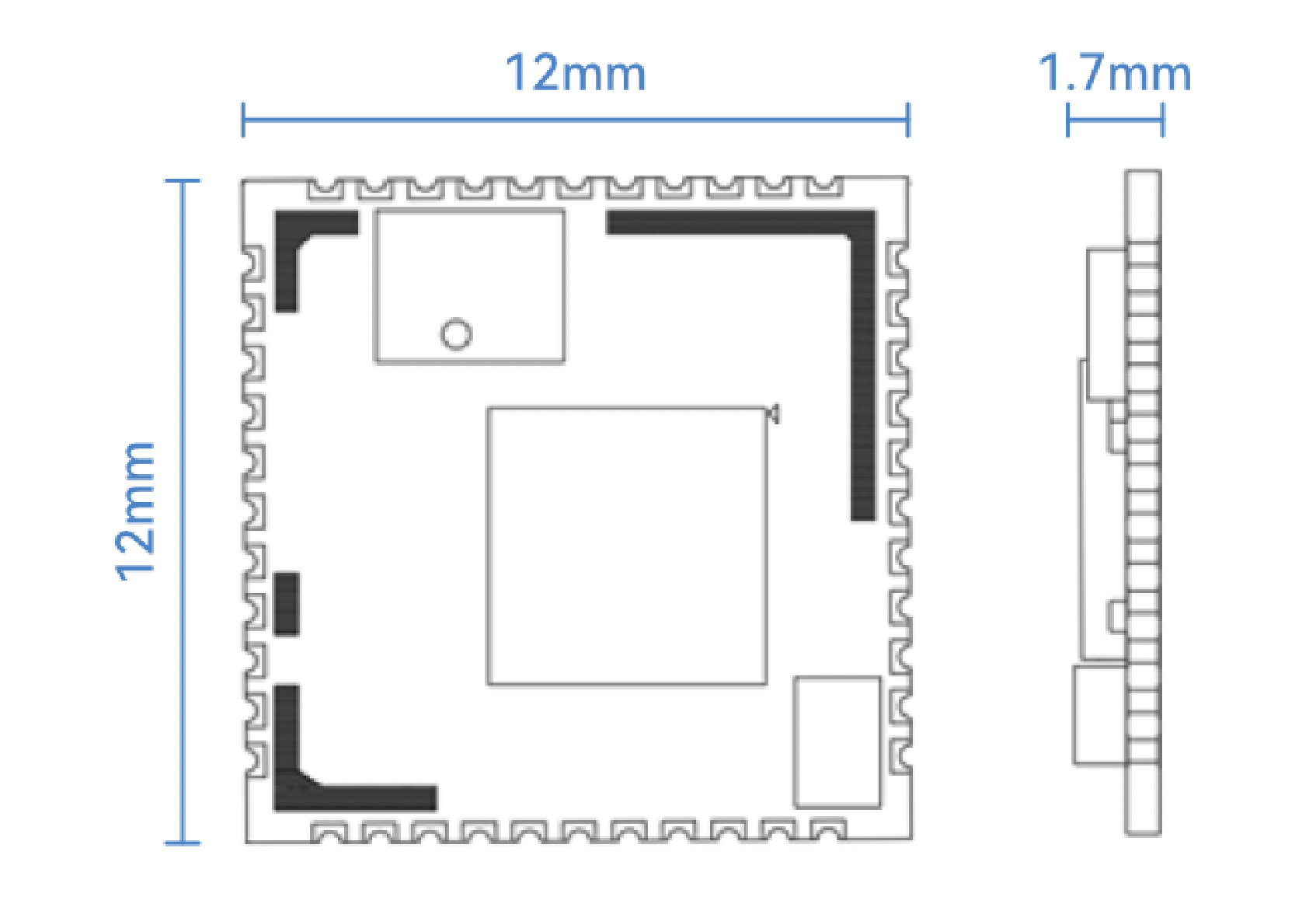

Product Dimension
Module dimension: 12.0*12.0*1.7mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
Package Dimensions

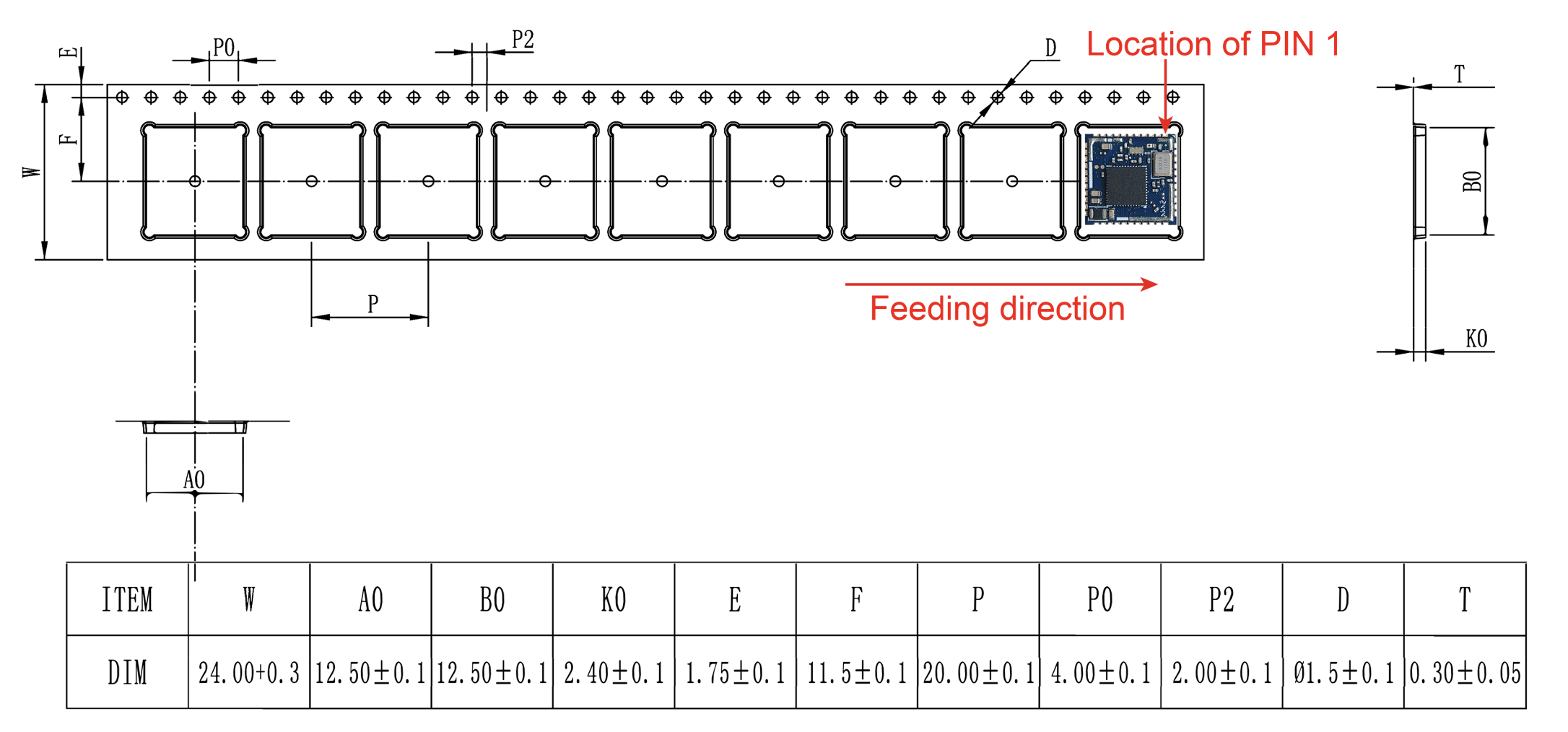

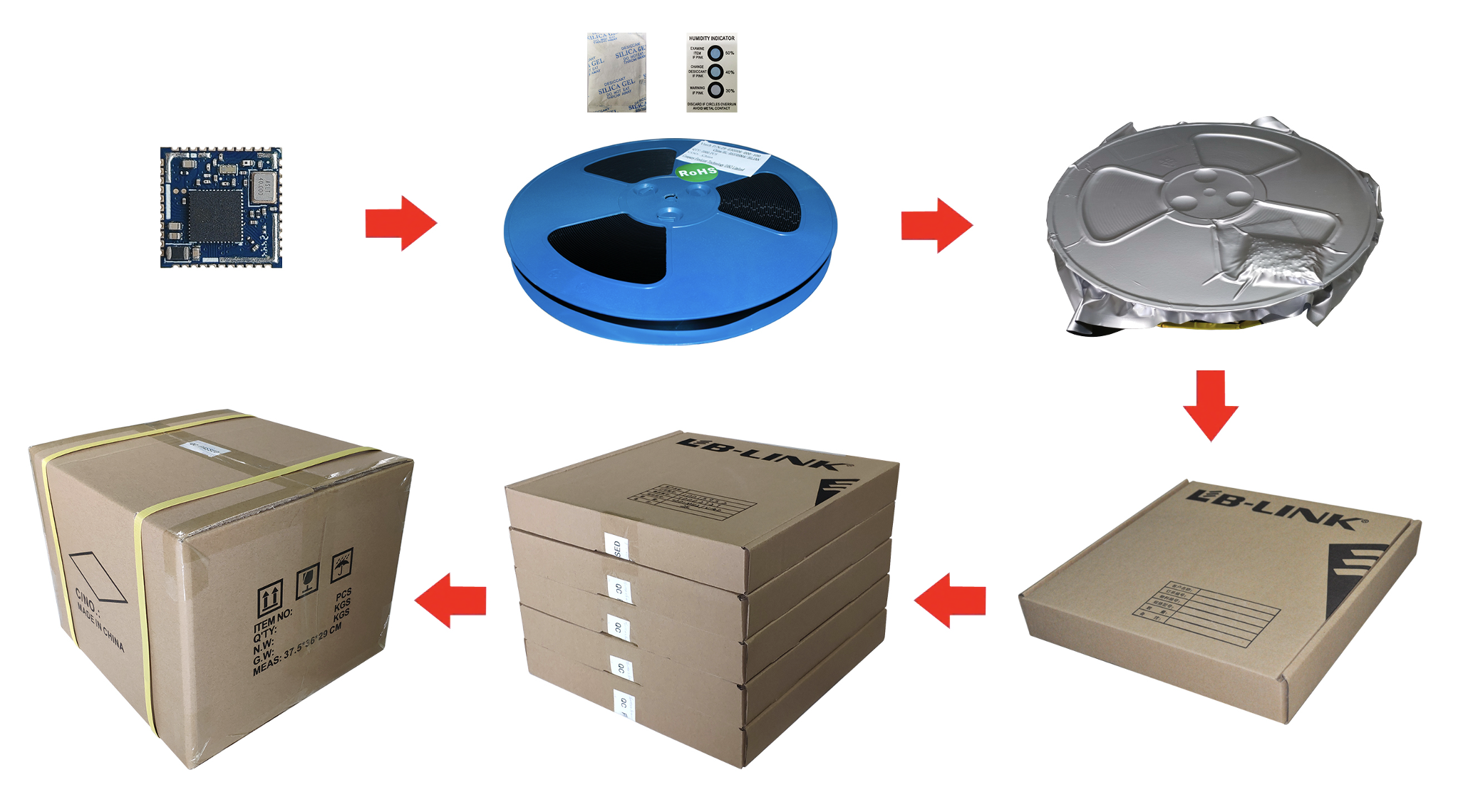

Package specification:
1. 1,000 modules per roll and 5,000 modules per box.
2. Outer box size: 37.5*36*29cm.
3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 28mm (with a width of 24mm carrying belt).
4. Put 1 package of dry agent (20g) and 1 humidity card in each anti-static vacuum bag.
5. Each carton is packed with 5 boxes.
