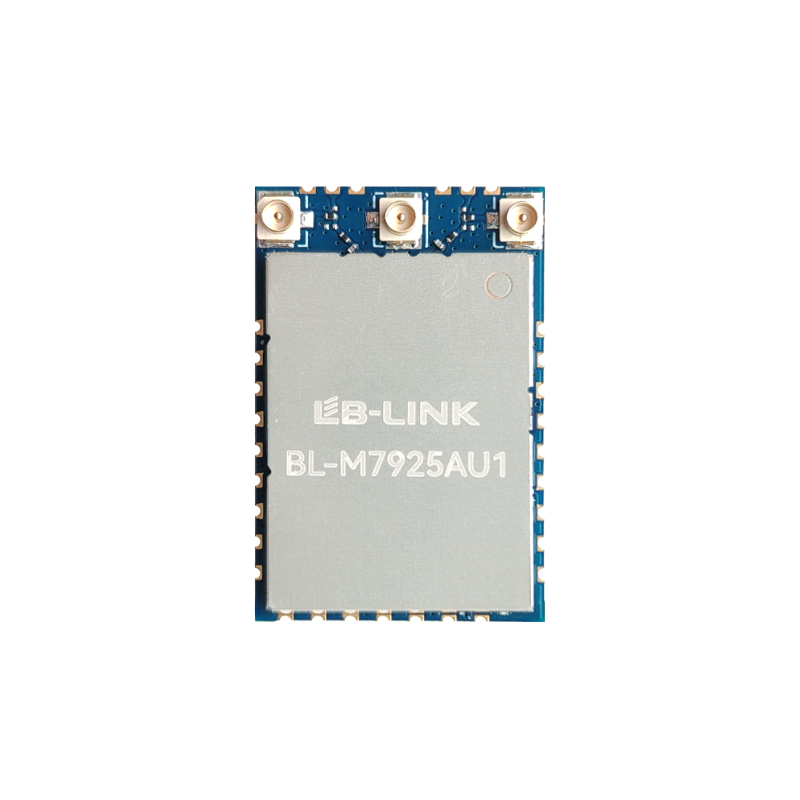

BL-M7925AU1 is a highly integrated Triple-band WLAN + B v5.4 Combo module. It integrates a 2T2R Triple-band WLAN subsystem and a B v5.4 subsystem. Compliant with IEEE 802.11 a/b/g/n/ac/ax/be standards, the module reaches a maximum PHY rate of 2882Mbps. It supports dual-mode B and is compatible with B v5.4/v4.2/v2.1. It delivers feature-rich, high-standard wireless connectivity, with stable, cost-effective throughput over long transmission distances.
Features
Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz / 5.925~7.125GHz
Support 2.4GHz, 5GHz, 6GHz Triple-band channels
Support Triple-band 2T2R mode with 20/40/80/160MHz bandwidth
Wireless PHY rate can reach up to 2882Mbps
Support MU-MIMO RX
DC 3.3V±0.2V main power supply

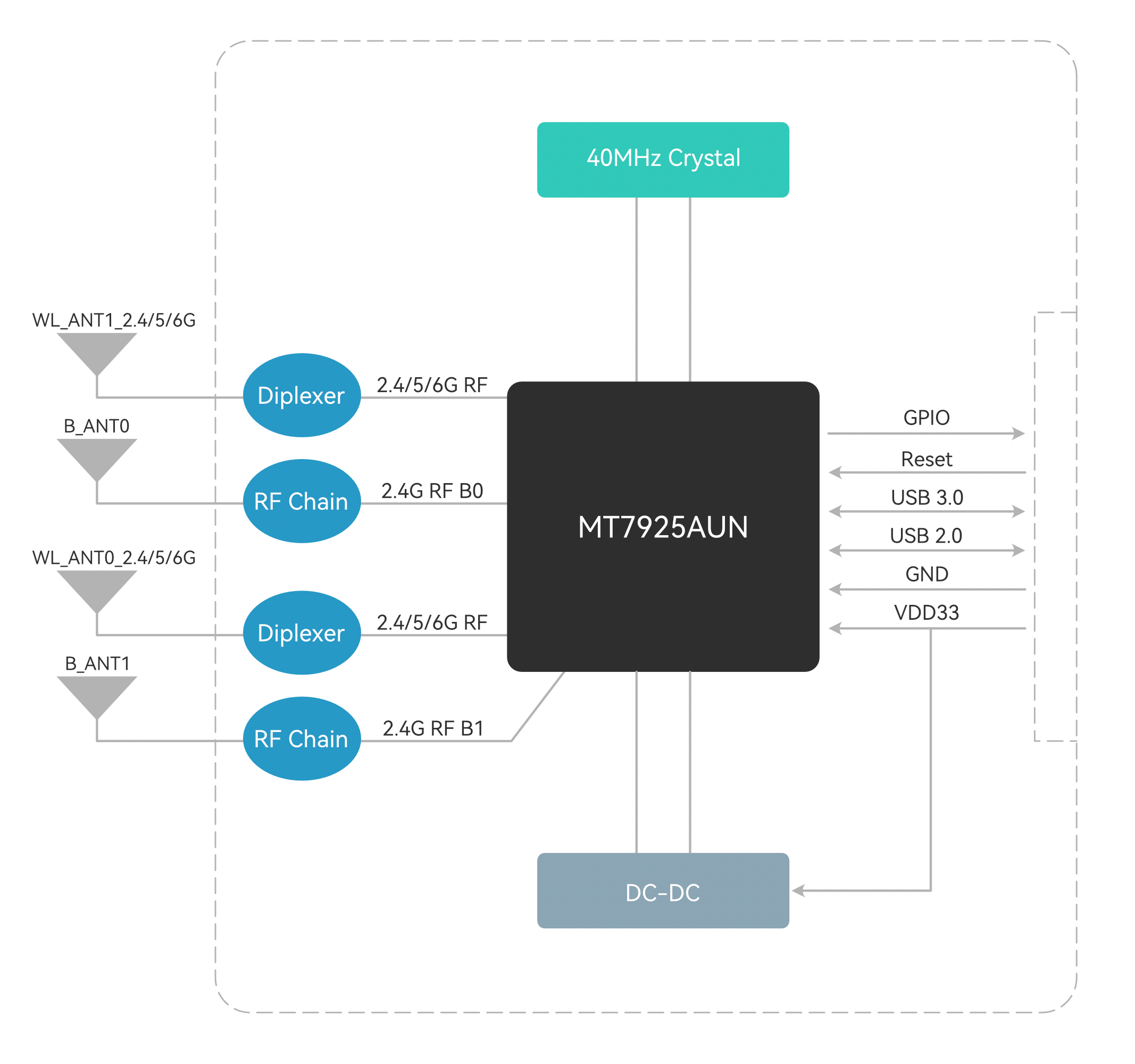

Block Diagram

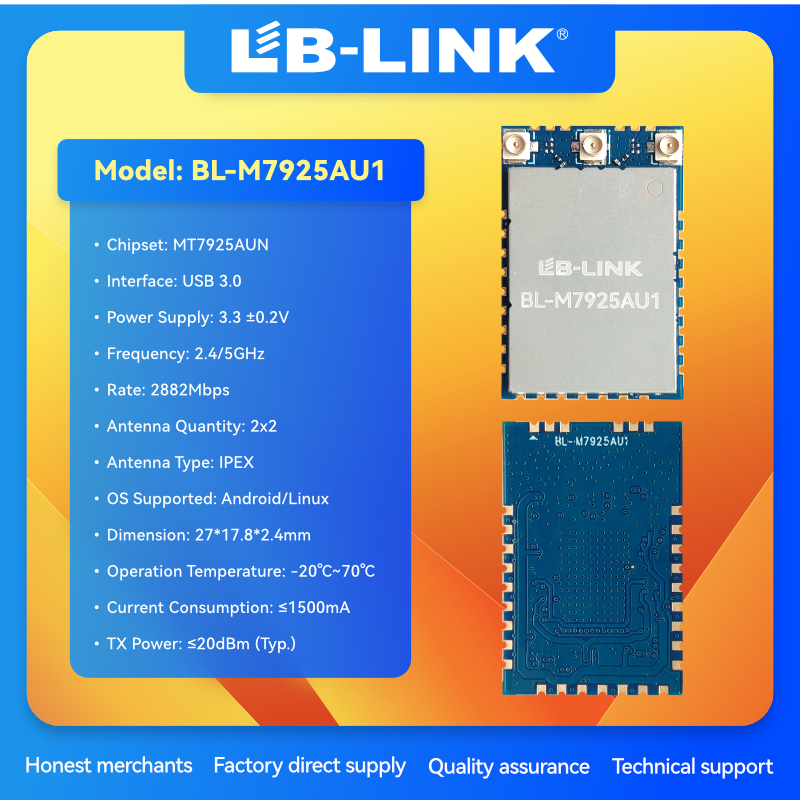

General Specifications
Card Name
BL-M7925AU1
Chipset
MT7925AUN
WLAN Standards
IEEE802.11a/b/g/n/ac/ax/be
Host Interface
USB3.0/USB2.0 for WLAN & Bluetooth
Antenna
Connect to the external antennas through IPEX connectors
Half hole PADs for external BT antenna ( IPEX connector for BT）

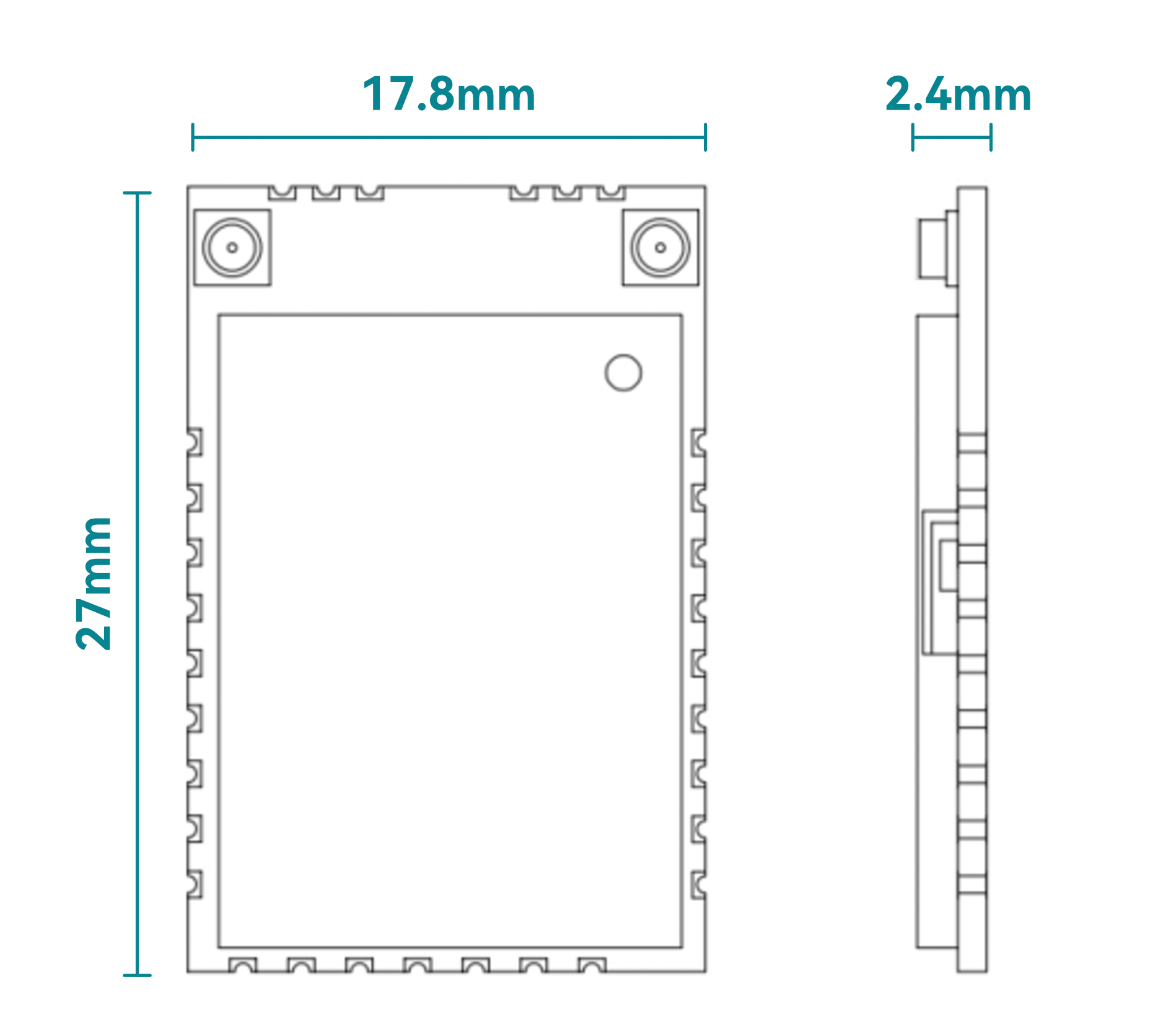

Dimension
27.0*17.8*2.4mm (L*W*H)
Power Supply
DC 3.3V±0.2V@1.5A (Max)
Operation Temperature
-20℃ to +70℃
Operation Humidity
10% to 95% RH (Non-Condensing)

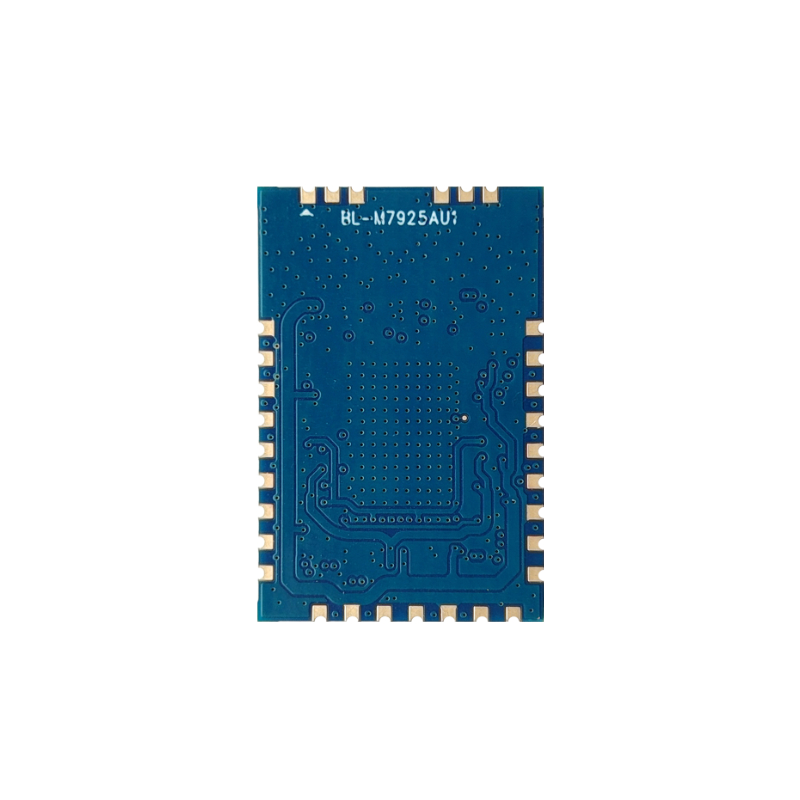

Product Dimension

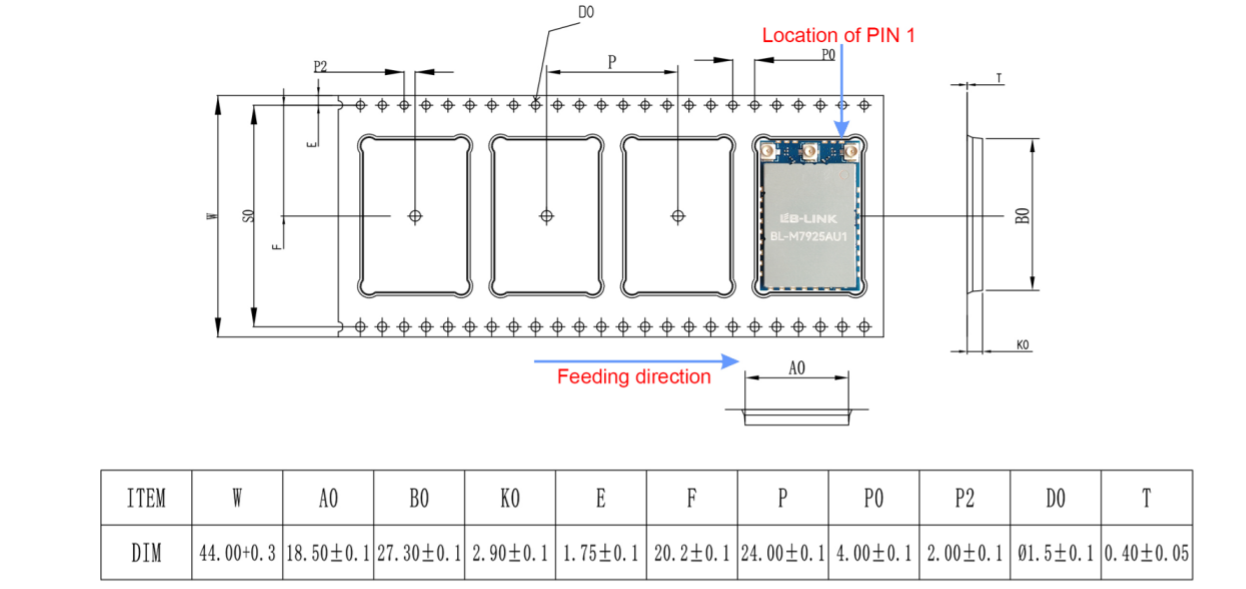

Package Dimensions

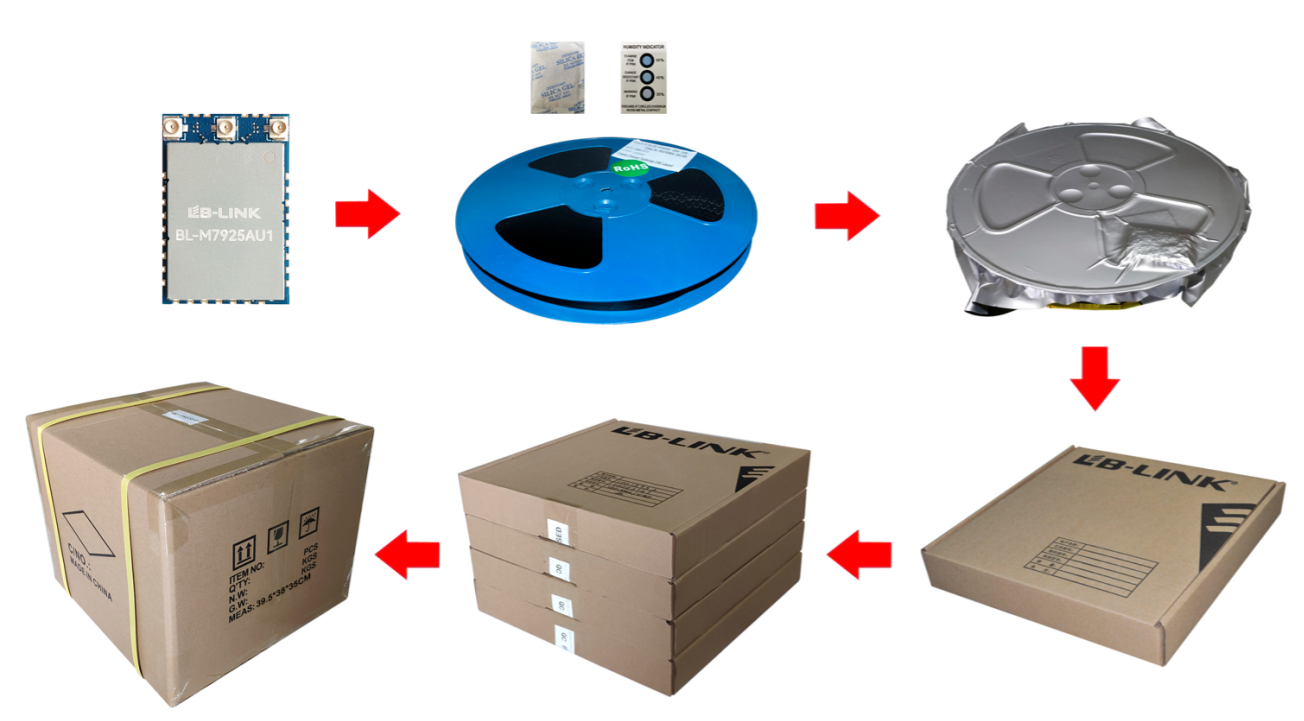

Package specification:
1. 900 modules per roll and 3,600 modules per box.
2. Outer box size: 39.5*38*35cm.
3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 48mm (with a width of 44mm carrying belt).
4. Put 1 package of dry agent (20g) and humidity card in each anti-static vacuum bag.
