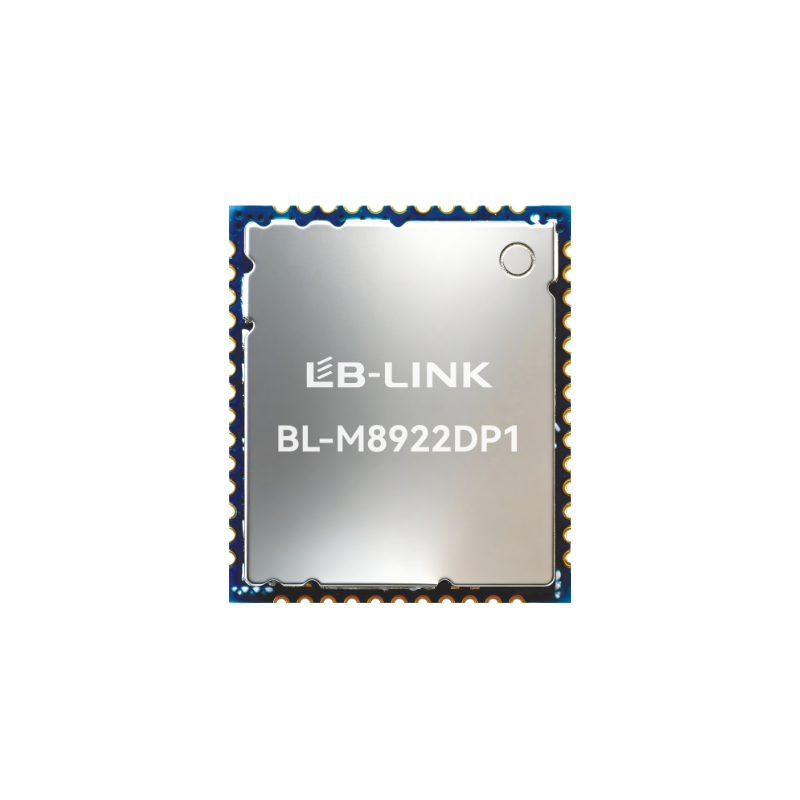

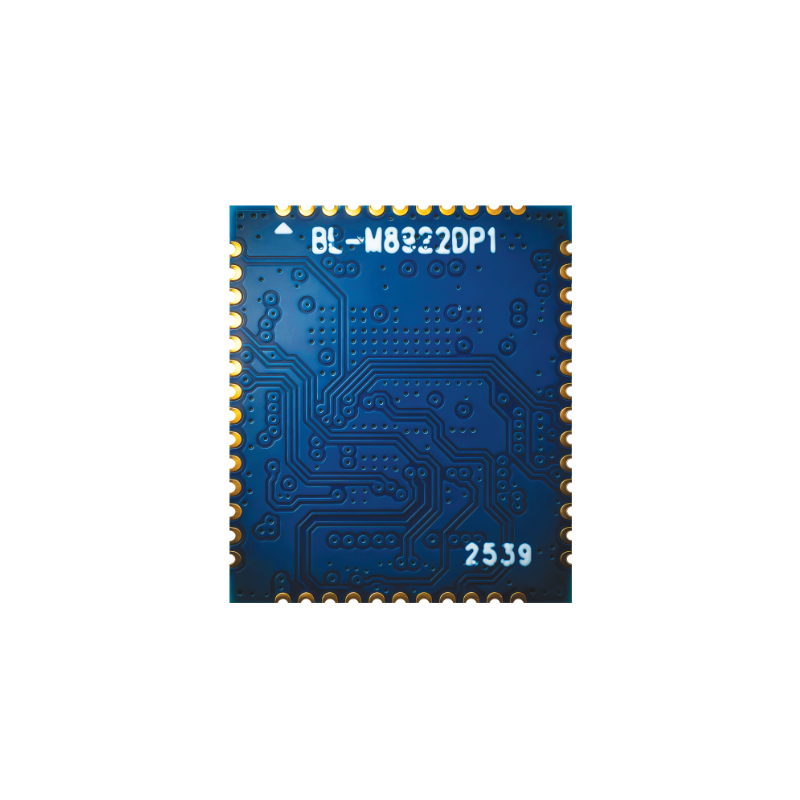

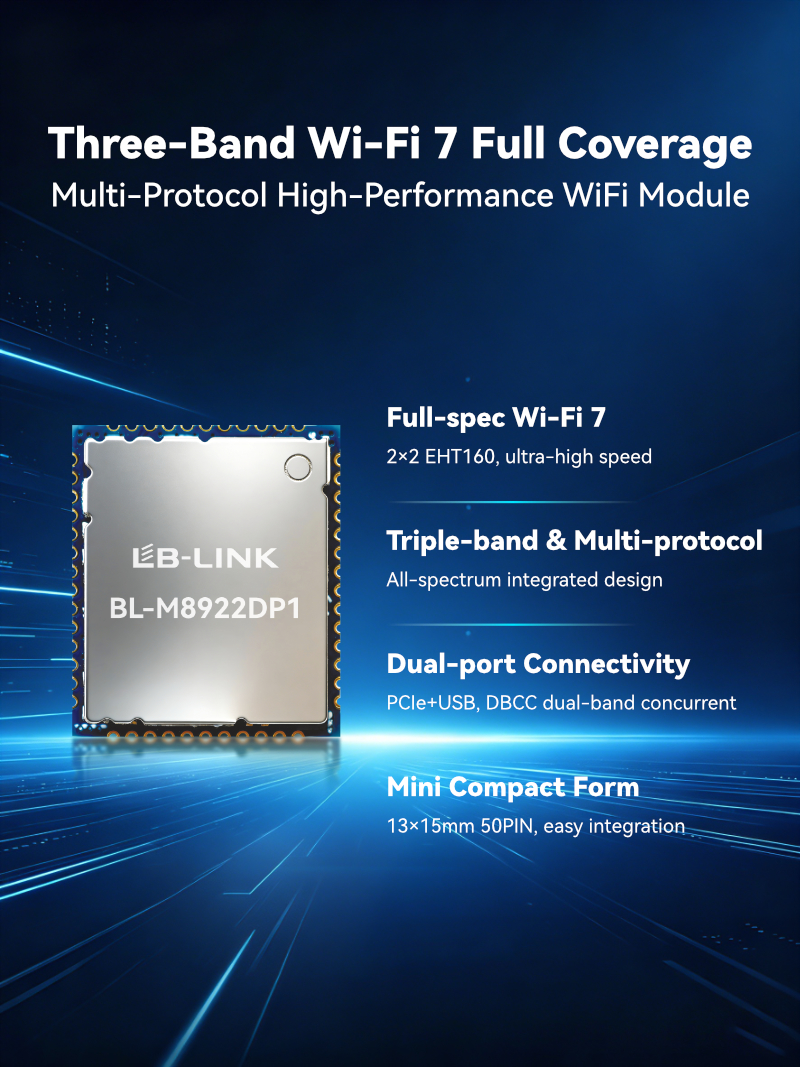

The BL-M8922DP1 is a triple-band WiFi 7 module with 2T2R configuration, supporting 802.11be (WiFi 7), Bluetooth 5.4, Zigbee 3.0, and Thread 1.3. Compact, industrial-grade, and ready for OEM/bulk supply, it’s the ideal multi-protocol solution for IoT and smart devices.
BL-M8922DP1 is a highly integrated triple-band WLAN + B Combo PCI-E Module. It integrates a 2T2R triple-band WLAN subsystem with PCI Express interface controllers, alongside a B v5.4 subsystem equipped with a USB interface controller. Compliant with IEEE 802.11 a/b/g/n/ac/ax/be standards, the module delivers a maximum PHY rate of 2402 Mbps. It supports dual-mode B and is compatible with B v5.4, v4.2 and v2.1 specifications. Additionally, it features IEEE 802.15.4, Zigbee 3.0 and Thread 1.3 protocols. This all-in-one module serves as a complete solution for high-performance wireless integrated devices including OTT boxes, set-top boxes, HD cameras and more.
Features
Support 2.4GHz, 5GHz, 6GHz Triple-band channels
Support Dual band concurrent (2.4G 1T1R+5G/6GHz 1T1R) and Multi-Link Operation
Operating Frequencies: 2.4~2.4835GHz and 5.15~5.85GHz / 5.925~7.125GHz
Support Triple-band 2T2R mode with 20/40/80/160MHz bandwidth
Support 802.11be with OFDMA and MU/RU/SU decision path by firmware
Support 802.15.4 Zigbee3.0/Thread1.3
Connect to external antenna through half hole pads connectors

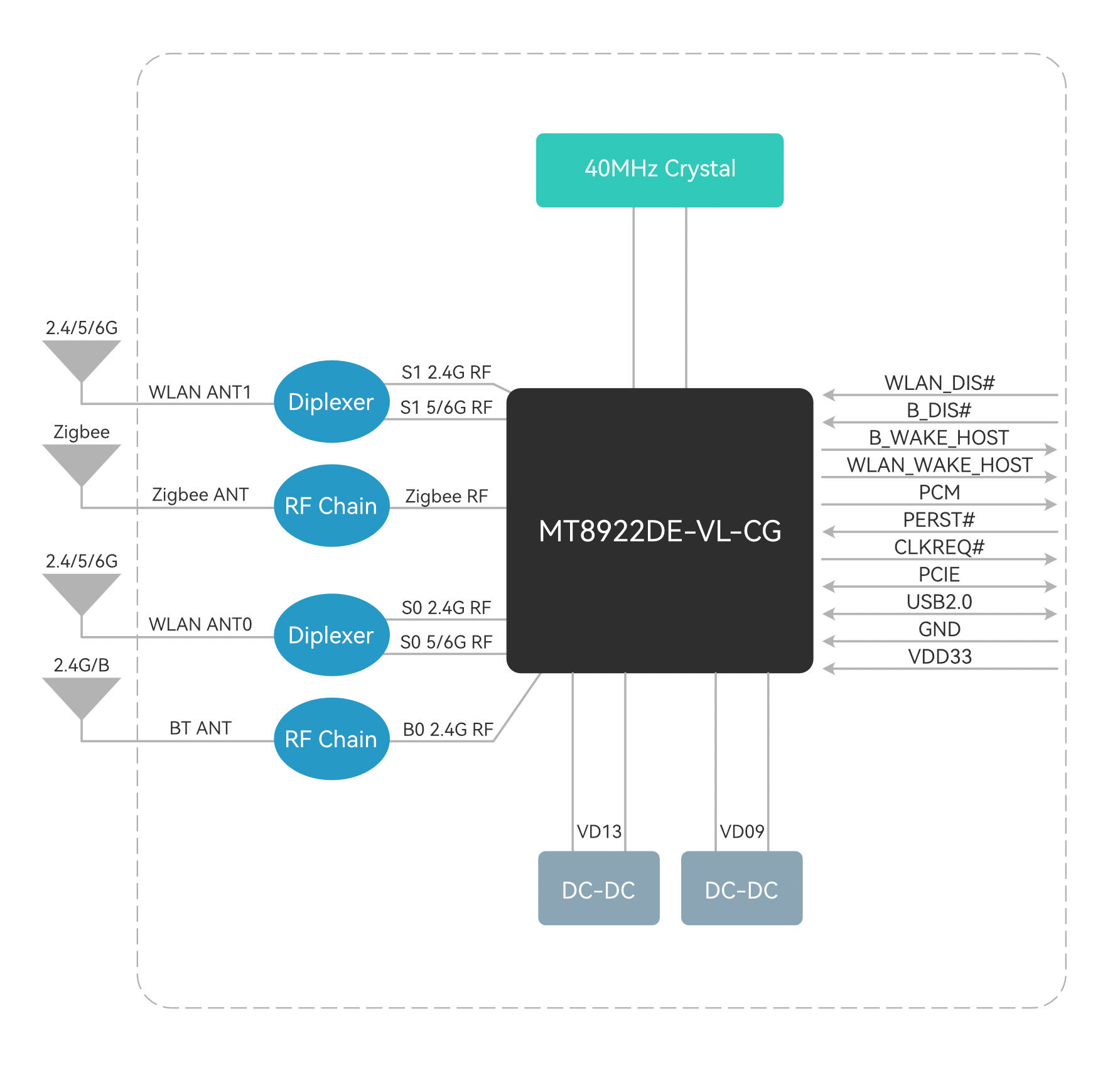

Block Diagram
General Specifications
Card Name
BL-M8922DP1
Chipset
RTL8922DE-VL-CG
WLAN Standards
IEEE802.11a/b/g/n/ac/ax/be
IEEE 802.15.4 Standards
Zigbee3.0/Thread1.3
Host Interface
PCI Express Gen2 1Lane for WLAN & USB2.0 FS for Bluetooth，Zigbee
Antenna
Connect to the external antenna through half hole pads connectors
Dimension
15.1*13.1*2.4mm (L*W*H)
Power Supply
DC 3.3V±0.2V@1.5A (Max)
VDDIO=3.3V±0.2V / 1.8V±0.1V
Operation Temperature
-20℃ to +70℃
Operation Humidity
10% to 95% RH (Non-Condensing)

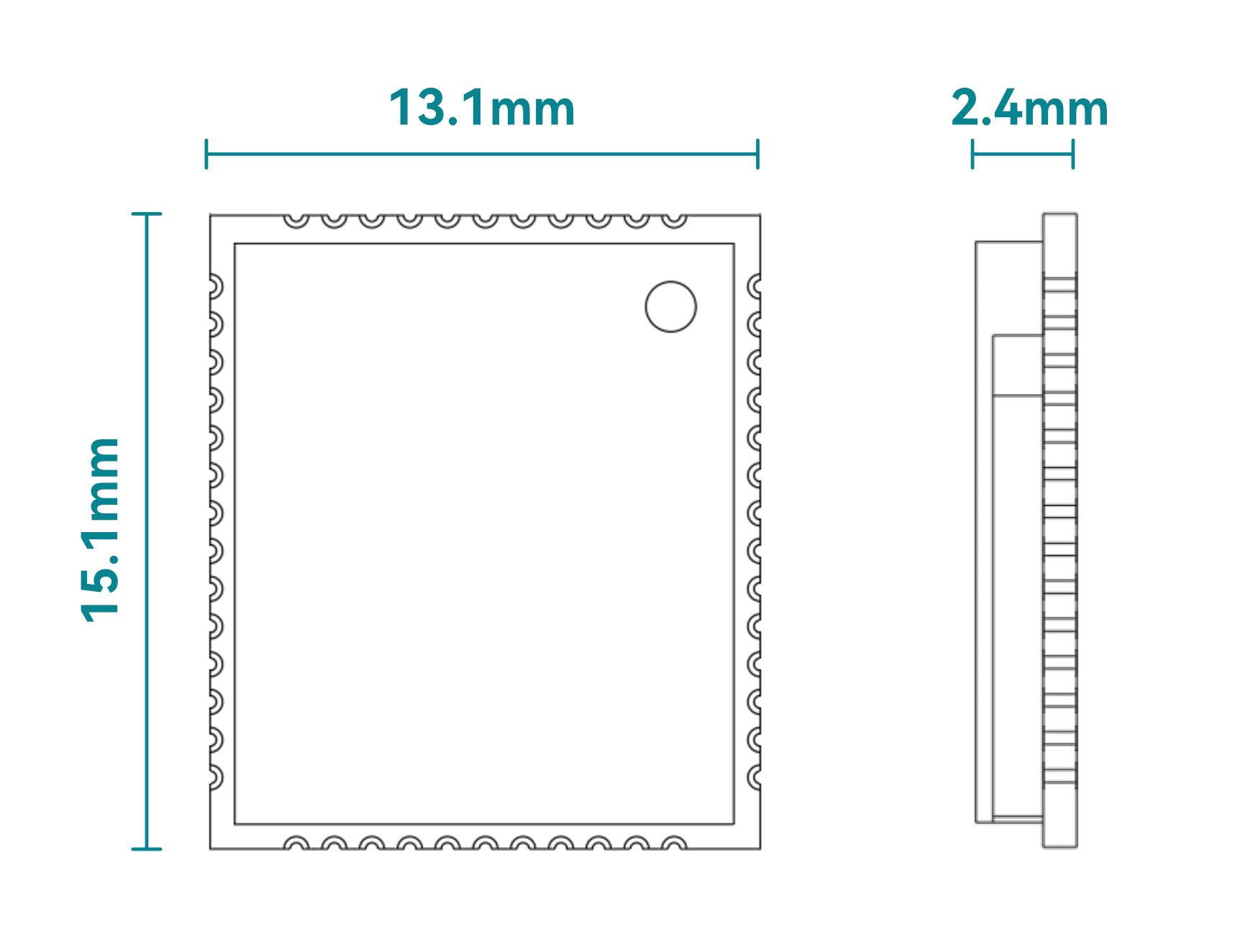

Product Dimension

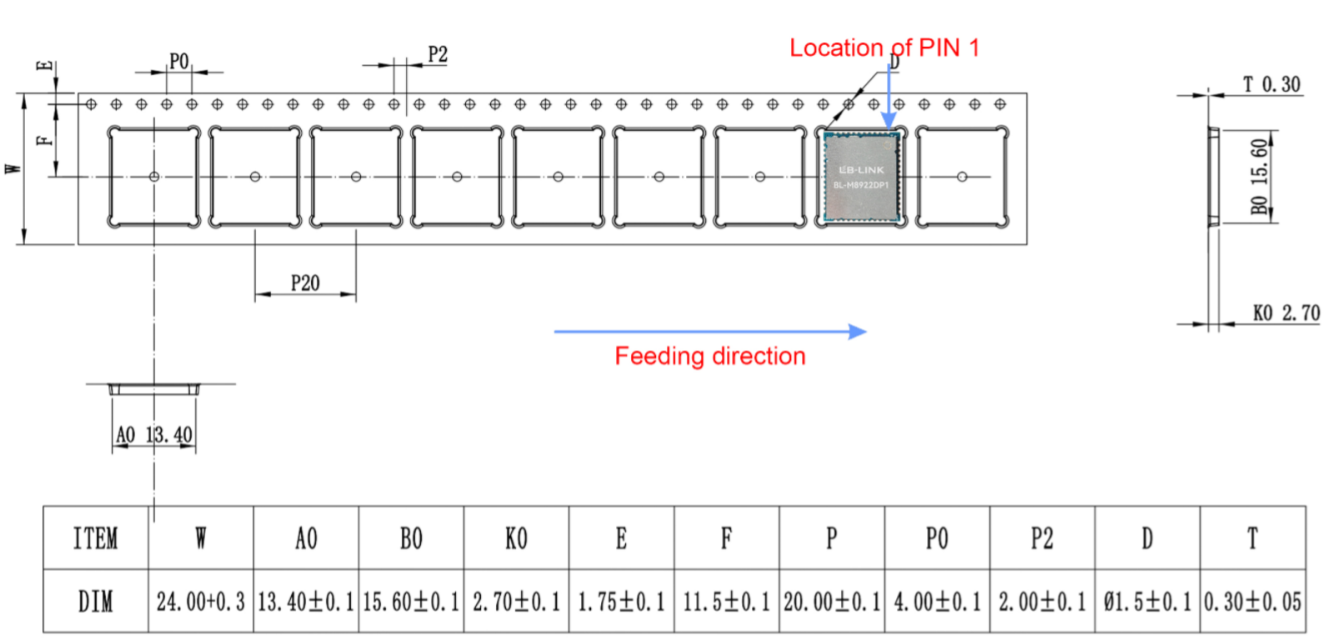

Package Dimensions

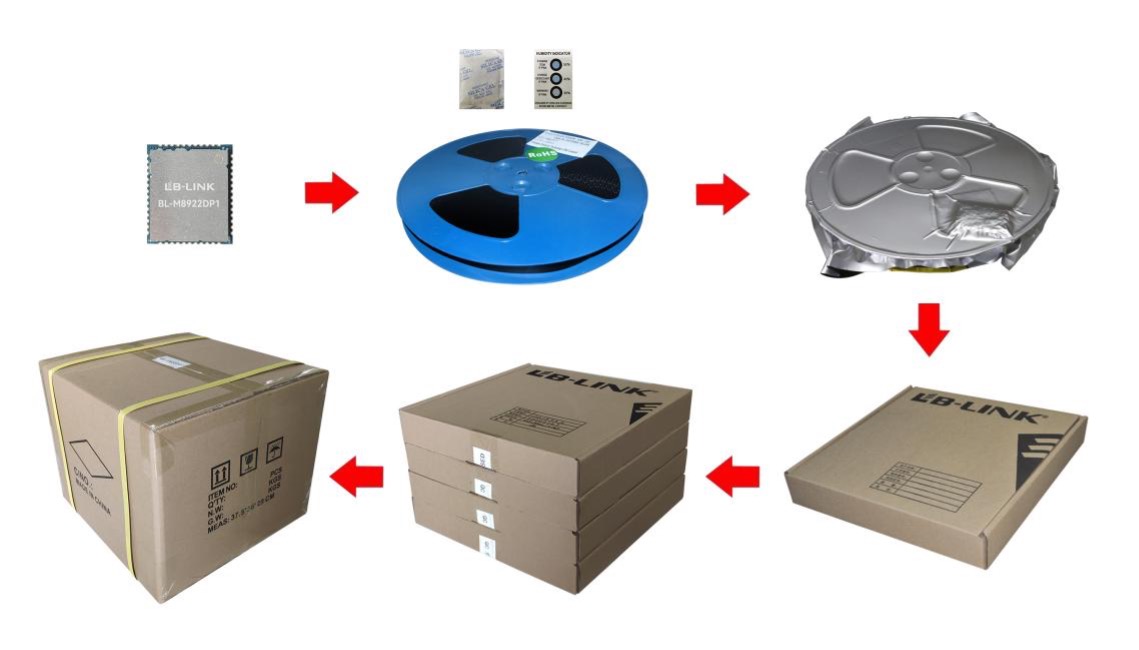

Package specification:
1. 1000 modules per roll and 4,000 modules per box.
2. Outer box size: 37.5*36*29cm.
3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 28mm (with a width of 24mm carrying belt).
4. Put 1 package of dry agent (20g) and 1 humidity card in each anti-static vacuum bag.
