Introduction

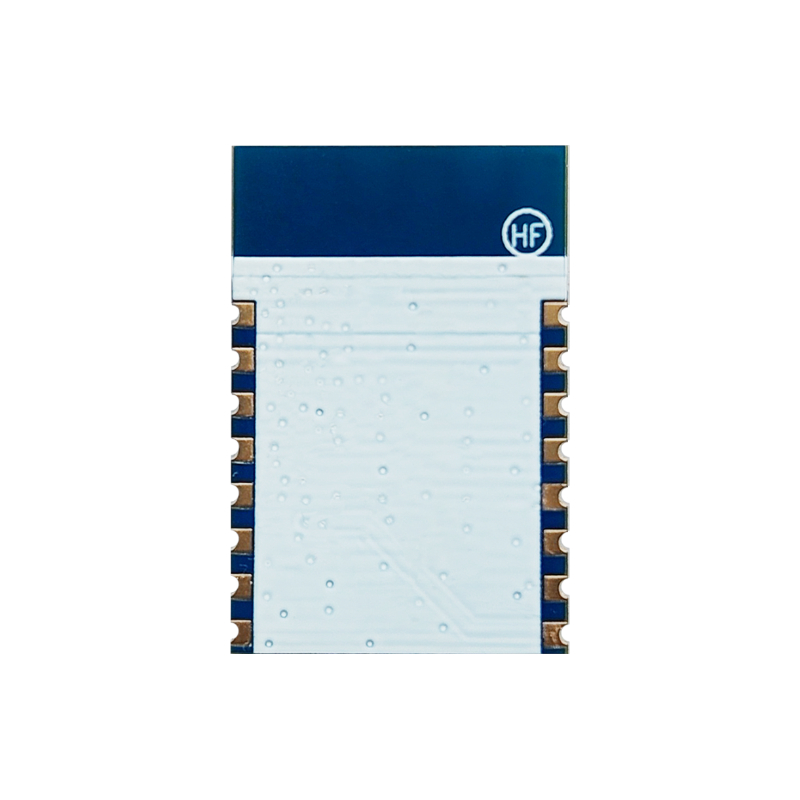

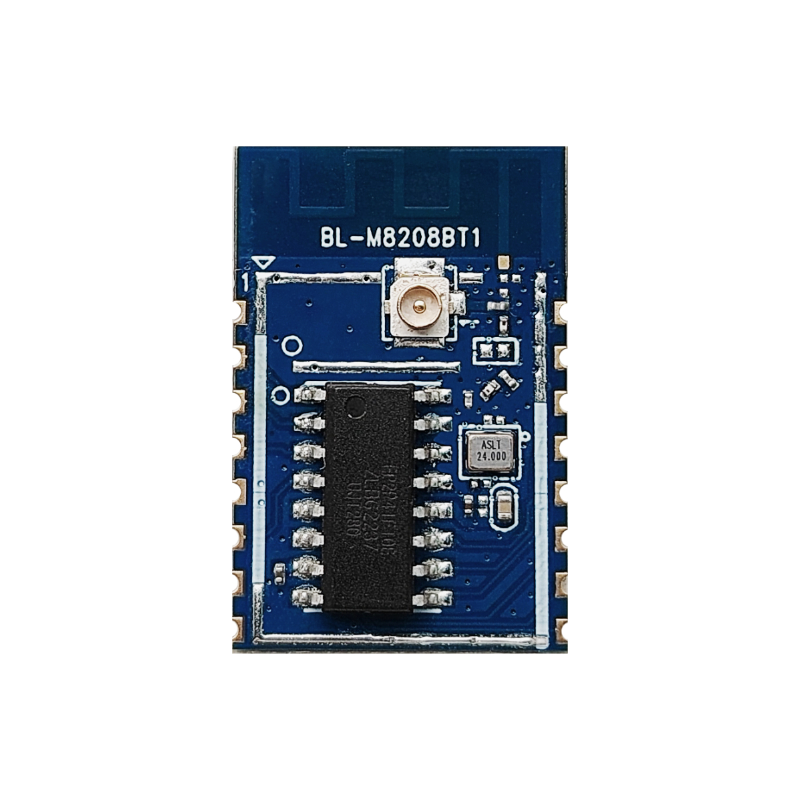

BL-M8208BT1 is a cost-effective, low-power Bluetooth-compatible Low Energy (BLE) module based on Telink EP2P41F10EE SOC. It supports transparent UART data service of BLE with master devices such as mobile phones and tablets, eliminating the need for firmware development and shortening your time to market.
This module is applicable to IoT (Internet of Things) applications including Bluetooth-compatible LE smart devices and home automation devices. Typical applications cover, but are not limited to:• ESL (Electronic Shelf Label) devices• Smart lighting, smart home devices• Bluetooth-compatible remote control• Sports and fitness tracking
Features
Operating Frequency Range: 2.4~2.4835GHz (2.4GHz ISM Band)Bluetooth-compatible v5.3 compliant, supports BLE 1Mbps, 2Mbps, Long Range 125kbps and 500kbpsEmbedded 32-bit RISC MCU with maximum operating speed up to 48 MHzInternal 128KB Flash memoryInternal 16 KB retention SRAMHost Interfaces: UART

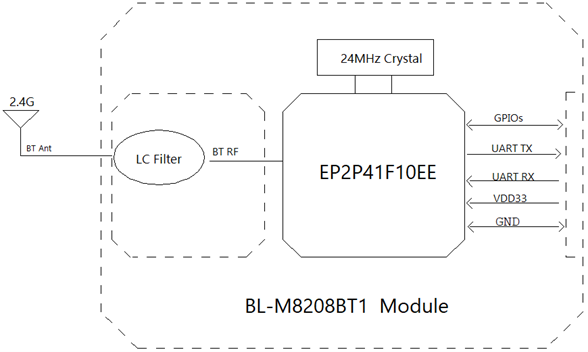

Block Diagram
![1]()

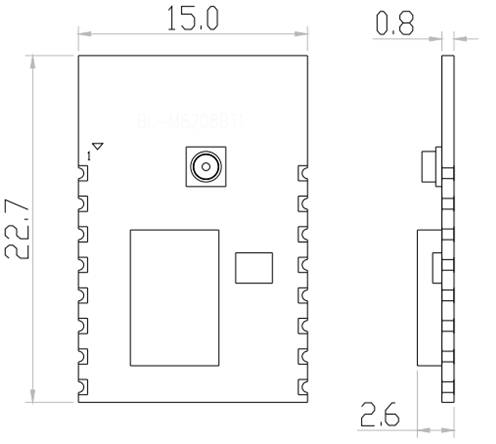

Product Dimension
![2]()
Module dimension: 22.7*15*2.6mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
IPEX-1 connector dimension: 2.6*3.0*1.2mm (L*W*H, Ø2.0mm)

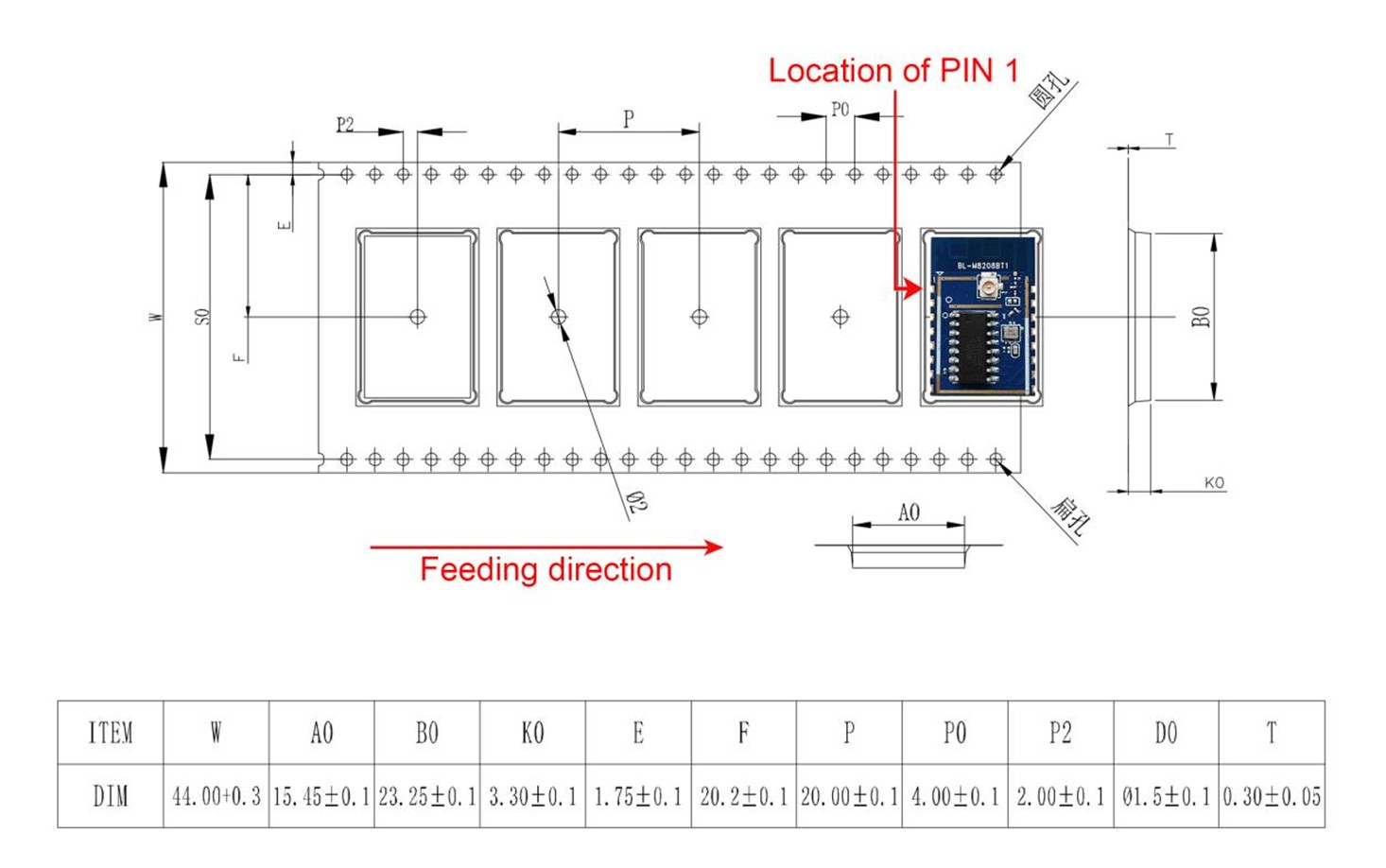

Package Dimensions
![3]()
![4]()

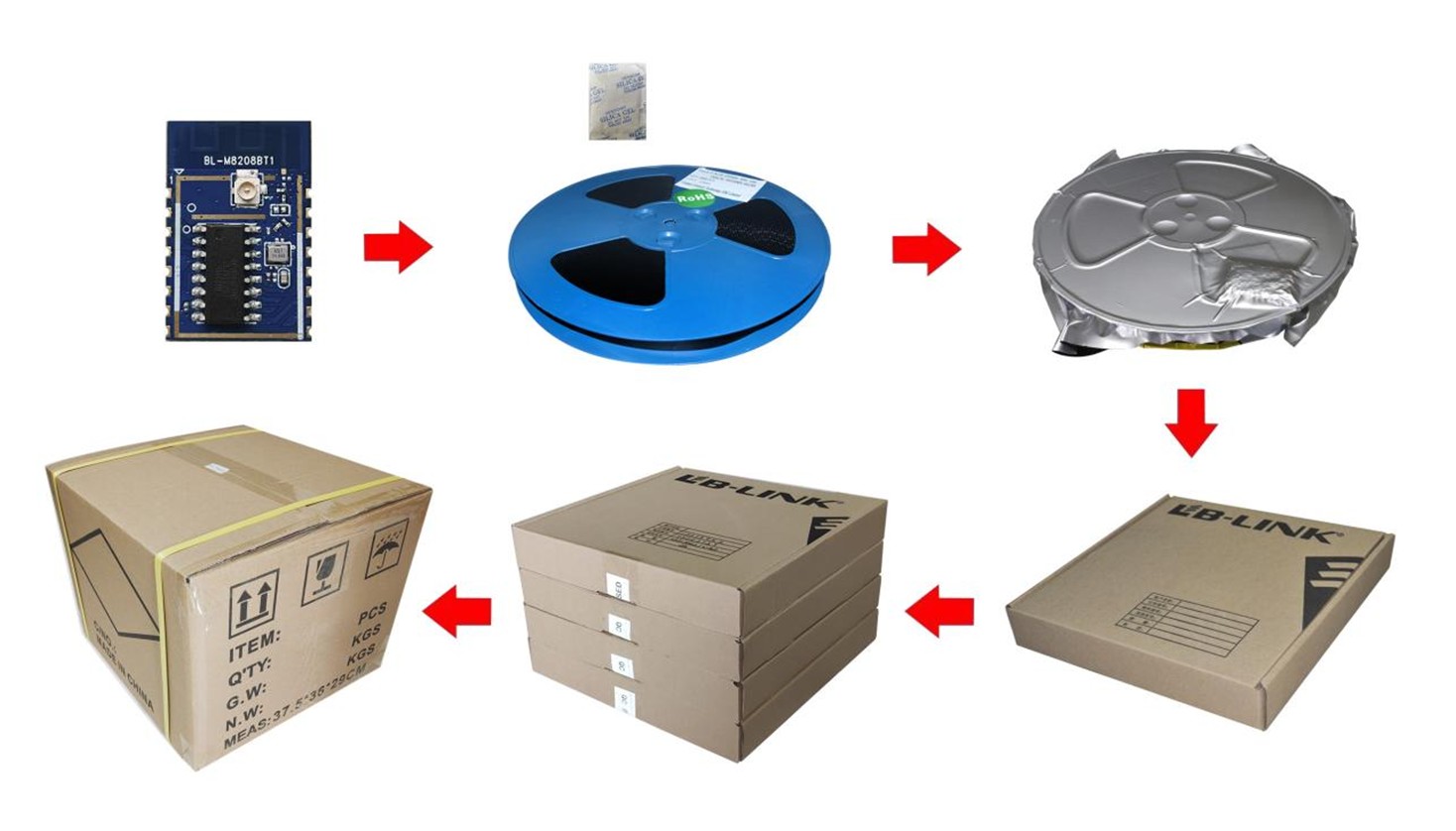

Package specification:
1. 900 modules per roll and 3,600 modules per box.
2. Outer box size: 37.5*36*29cm.
3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 48mm (with a width of 44mm carrying belt).
4. Put 1 package of dry agent (20g) in each anti-static vacuum bag.
5. Each carton is packed with 4 boxes.
