A high-power wireless module is often considered when an ordinary radio link loses stability before the device reaches its required operating distance. Output power ratings such as 27dBm, 29dBm, and 30dBm can sound like small numerical differences, but they materially affect the RF link budget. Still, transmit power alone does not guarantee a specific range. Frequency, antenna design, receiver sensitivity, channel width, obstructions, interference, installation height, and local regulations all shape the result. This guide explains what 27–30dBm means, where a long-range high-power wireless module fits, and how to evaluate it realistically.
27dBm is about 0.5W, while 30dBm is 1W; a 3dB increase represents roughly twice the RF output power.
A high transmit power up to 27-30dBm can increase link margin, but it does not create a fixed transmission distance by itself.
Antenna selection, receiver sensitivity, channel bandwidth, installation conditions, and interference often determine whether higher transmit power produces a reliable gain in the field.
Output power and EIRP are different measurements. Compliance decisions must consider antenna gain and RF losses, not just the module’s conducted power.
For long-range video, UAV, security, and industrial point-to-point applications, select the complete RF system rather than comparing modules by dBm alone.
dBm expresses power relative to one milliwatt on a logarithmic scale. In practical terms:
Conducted transmit power | Approximate power | What it means |
|---|---|---|
20dBm | 100mW | Common output level for many compact wireless devices |
24dBm | 250mW | Increased power for a stronger link budget |
27dBm | 500mW | A substantial step up for long-range designs |
29dBm | 800mW | High-power operation where thermal and regulatory design matter |
30dBm | 1W | Twice the output power of 27dBm |
The useful comparison is not simply the wattage. RF systems are normally assessed in dB because gains and losses can be added and subtracted directly. Moving from 27dBm to 30dBm adds 3dB to the transmit side of the link budget. Under otherwise identical conditions, that 3dB may help preserve a connection at the edge of coverage, improve resilience to fading, or support a more demanding data rate. It should not be interpreted as a guaranteed doubling of operating range.

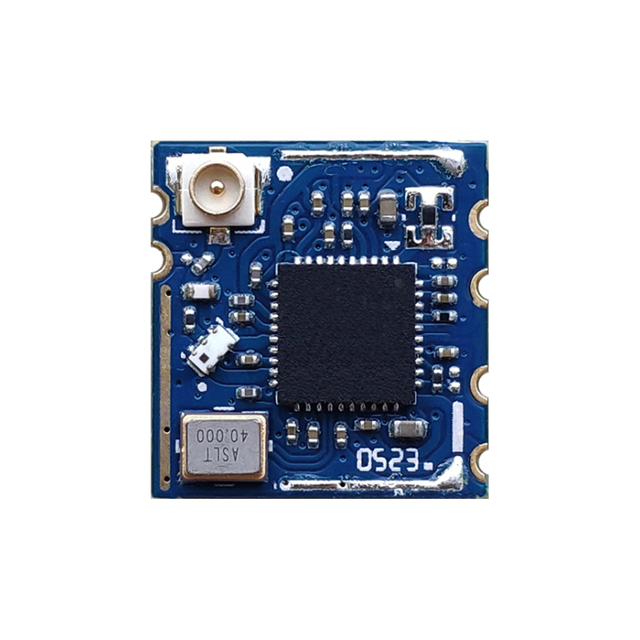

A high-power wireless module may include a front-end module (FEM), power amplifier, low-noise amplifier, RF switches, filtering, and supporting control circuitry. The exact implementation matters. A design with a well-integrated RF chain, appropriate thermal handling, and suitable antenna matching is usually more valuable than a headline output-power figure without the supporting RF details.
Wireless range is governed by the strength of the received signal relative to the receiver’s minimum usable level. A simplified link-budget relationship is:
P_{RX} = P_{TX} + G_{TX} - L_{TX} - L_{PATH} + G_{RX} - L_{RX}
Where (P_{RX}) is received power, (P_{TX}) is module transmit power, (G) represents antenna gain, and (L) represents cable, connector, and propagation losses.
Higher transmit power raises the starting point. If every other factor remains the same, moving from 27dBm to 30dBm raises received power by 3dB. That extra margin can be useful when the radio path includes foliage, movement, multipath reflections, moderate interference, or weather-related fading.
For example, a long-range high-power wireless module used in an airborne video platform may need to maintain a stable link while the orientation of the aircraft changes and the path travels through a noisy RF environment. The additional output power can help, but the receiving side must still have sufficient sensitivity and the antennas must remain appropriate for the flight profile.
A module’s highest output rating also needs context. Maximum power may be specified for a particular frequency, modulation, data rate, channel bandwidth, supply condition, or temperature. Engineers should use the power value associated with their actual operating mode rather than assuming one maximum rating applies to every configuration.
A common mistake is to convert a power increase directly into a distance increase. Radio propagation does not work that way. In free-space conditions, a 6dB increase in link budget can approximately double distance; a 3dB increase is meaningful, but usually less dramatic. Real deployments are even more variable.
Walls, metal surfaces, vegetation, people, vehicles, ground reflections, antenna polarization mismatch, and other nearby radios can have a larger effect than a few dB of added transmitter power. A system installed with a poorly matched antenna or a lossy cable can give away much of the benefit before the signal even reaches the air.
The target throughput also changes the answer. A low-rate telemetry connection can often work at a weaker received signal than a high-definition video link. A system may therefore gain range by reducing channel width, lowering the data rate, changing modulation settings, improving antenna placement, or choosing a more suitable frequency band. Higher power is one lever among several.
This is why range claims should be treated as deployment-specific. A reported distance may depend on clear line of sight, particular antennas, a selected channel width, fixed endpoint height, and a defined data rate. Before adopting a high transmit power up to 27-30dBm, define the actual success criterion: control-link continuity, packet-error rate, video latency, sustained throughput, or a required receive-signal margin.
Module output power is normally conducted power: the RF power available at the module’s antenna port. The radiated system level is often assessed as effective isotropic radiated power (EIRP). Antenna gain increases EIRP, while cable and connector losses reduce it.
That distinction is essential. A 27dBm module with a directional 10dBi antenna has a very different RF profile from a 27dBm module connected to a small omnidirectional antenna. Directional antennas can extend a point-to-point link by concentrating energy, but they require alignment and may be unsuitable for mobile equipment. Omnidirectional antennas simplify coverage around a device but spread energy more broadly.
Antenna gain also changes compliance obligations. Local requirements can limit allowable EIRP, restrict particular bands, or impose conditions on outdoor and indoor use. Product teams should validate the applicable rules for the final country, frequency range, antenna, enclosure, and intended use. Do not assume that a legally compliant module remains compliant after changing its antenna or RF configuration.
For this reason, the right question is not “Can the module transmit at 30dBm?” It is “What is the permitted EIRP for this radio system, and can the product meet that limit while delivering the required link margin?”
A useful selection process begins with a simple, conservative link-budget model. It should include the radio’s actual transmit power, antenna gains, RF losses, expected path loss, receiver sensitivity for the chosen operating mode, and a reserve for real-world fading.
Start by defining the intended environment. A clear line-of-sight outdoor route is not comparable to an industrial site with machinery, reflective surfaces, and moving equipment. Likewise, a drone-to-ground link has different geometry and antenna-orientation challenges than a fixed camera-to-gateway link.
Next, choose the operating data rate and bandwidth. Narrower channels can reduce noise and may help a link operate at a lower received signal level, although they also limit throughput. This trade-off is particularly relevant to image transmission: a system that needs low-latency HD video must balance bandwidth, encoding, RF robustness, and regulatory limits.
Then reserve margin. A link that only works in a stationary laboratory test is not ready for deployment. Margin allows the system to absorb normal variation in antenna orientation, local interference, temperature, and propagation conditions. If the link-budget calculation shows only a narrow margin, improve the RF architecture before relying on a field range claim.
Finally, test the finished hardware. Enclosure material, PCB placement, cable routing, grounding, and nearby electronics can change antenna performance significantly. A prototype should be measured in a representative installation, not only as an exposed evaluation board.
The best high-power wireless module depends on the application’s operating band, throughput target, host interface, power availability, thermal envelope, physical size, and certification strategy.
For a compact camera or industrial terminal, a USB or SDIO module may be the practical interface. For a custom embedded system, the design team may prioritize Linux driver support, host-processor compatibility, and mechanical integration. For mobile platforms, current consumption and heat dissipation deserve particular attention because high output power can raise power demand during active transmission.

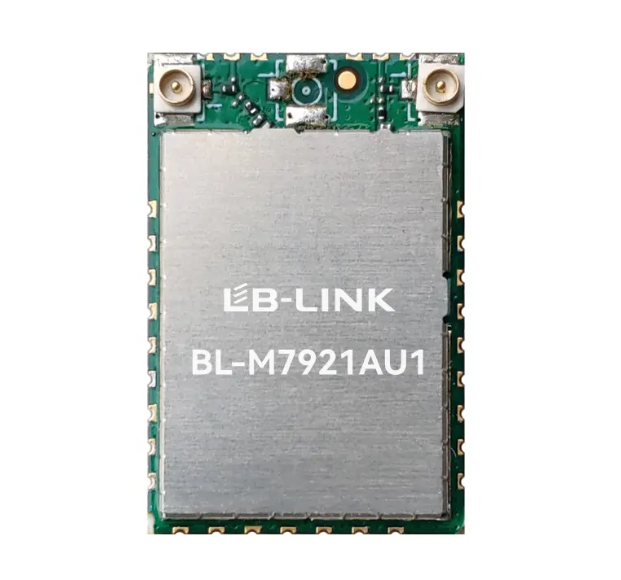

LB-LINK’s Wi-Fi module portfolio spans multiple wireless categories, while its site also identifies high-power Wi-Fi solutions for long-range video and security-oriented connectivity. This makes product selection a matter of matching the module to the complete device requirement rather than treating power as the only specification.
For a 5GHz long-range video design, assess these points before choosing a module:
Confirm the legal operating band and EIRP limit for each target market.
Identify the required video resolution, frame rate, latency, and sustained throughput.
Compare conducted output power at the required channel width and modulation, not only a peak number.
Verify receive sensitivity, antenna connectors, antenna type, and RF-layout requirements.
Budget for continuous transmit current and thermal behavior in the final enclosure.
Validate firmware, host interfaces, and the production test process before committing to mass production.
Long-range wireless does not always mean low-rate telemetry. Some applications need both distance and high throughput, which is where high-power Wi-Fi architectures become relevant.
In UAV image transmission, the system may need a stable control or video path across a changing outdoor route. Here, antenna placement and platform orientation are as important as the module’s power rating. LB-LINK describes its HP-H09-01 UAV image-transmission module as incorporating a 5GHz high-power FEM with maximum 29dBm transmit power, illustrating the type of configuration intended for long-distance wireless video use.
Security and inspection equipment can have similar requirements. A remote camera, mobile inspection platform, or temporary site network may need to carry video where wired infrastructure is difficult or expensive to install. In these cases, high gain directional antennas and carefully planned endpoint locations may contribute more to dependable performance than simply selecting the highest power module.
Industrial systems are another fit when equipment needs connectivity across an open yard, production floor, warehouse zone, or mobile work area. However, metal structures and electromagnetic noise make site testing essential. A high-power module can help recover margin, but channel planning and interference management remain necessary.
LB-LINK also presents long-range drone video-transmission solutions that pair module selection with operating-band and bandwidth considerations. That system-level view is the appropriate model for any long-range deployment.
High power comes with design consequences. A radio transmitting near 27–30dBm can draw significantly more current than a conventional low-power module. Supply droop, inadequate decoupling, and poor PCB grounding can reduce RF output or cause unstable operation. The host device therefore needs a power rail designed for transmission peaks rather than only average consumption.
Thermal design is equally important. A compact sealed enclosure can retain heat, and high ambient temperature may limit sustained performance. Use the module supplier’s layout recommendations, retain the required ground area, avoid blocking RF clearance zones, and plan for heat flow through the final mechanical assembly.
Do not overlook the antenna feed. Trace impedance, connector quality, flex-cable routing, and enclosure proximity can affect matching and radiated efficiency. A 30dBm transmitter paired with an inefficient antenna system can underperform a lower-power radio with a carefully engineered RF path.
A credible range claim identifies the conditions behind it. State the frequency band, bandwidth, transmit power, antennas, endpoint heights, environment, payload type, and whether the path had clear line of sight. If the result is based on a particular module configuration, do not generalize it to all products or all regions.
For procurement and engineering teams, the most useful evidence is a repeatable field test: defined endpoints, measured signal level, packet loss, throughput, latency, and failure behavior. Use a route that reflects the end-use environment, then test with representative enclosures and antennas.
Shenzhen Bilian Electronic Co., Ltd. can support wireless-module and solution evaluation, but the final product team should still validate its own installed system. That disciplined approach avoids overpromising range and makes it easier to identify whether the next improvement should be transmit power, receiver sensitivity, antenna design, channel settings, or installation geometry.
A 27–30dBm rating indicates a serious RF capability, not a guaranteed distance. A high-power wireless module can improve link margin and make long-range connectivity more resilient, especially for video, UAV, security, and industrial applications. The best result comes from treating the module as part of a complete RF system: legal EIRP, antenna design, receiver performance, bandwidth, thermal design, and real-world testing must all work together. For suitable applications, LB-LINK’s high-power wireless options provide a starting point for that system-level evaluation.
Yes, approximately. A 3dB increase represents about twice the RF output power, so 30dBm is about 1W and 27dBm is about 0.5W. That does not mean the radio range will double.
It can be, provided the complete system supports the required throughput, receiver sensitivity, antennas, channel width, and thermal conditions. Long-range video also needs enough link margin to remain stable during motion and interference.
Transmit power is the power delivered by the module at its RF port. EIRP includes the effect of antenna gain and RF losses, representing the radiated system level used in many regulatory requirements.
It can improve the desired signal level, but it cannot eliminate interference. Channel selection, antenna placement, filtering, bandwidth selection, and receiver performance are also important.
Use an omnidirectional antenna when coverage around a moving or variably located device is needed. Use a directional antenna when endpoints are fixed and alignment is practical; it can improve link budget by concentrating RF energy.
Often, yes. A narrower channel can reduce the noise bandwidth and may support more robust operation at a given received signal level. The trade-off is reduced available throughput.
Test conducted output power in the chosen mode, current consumption, enclosure temperature, antenna matching, receive performance, EIRP compliance, throughput, latency, packet loss, and performance in the intended environment.
