Introduction: The Physical Frontiers of Wireless Connectivity

In today’s digital age, Wi-Fi signals are as essential to modern living as the electrical grid. Whether streaming 4K videos seamlessly or enabling smart home devices to work in harmony, the magic lies in the precise propagation of radio waves through physical space. This guide demystifies the technical factors shaping Wi-Fi signal range and offers cutting-edge optimization strategies for global users.

1. Understanding Wi-Fi Standards and Their Range Capabilities

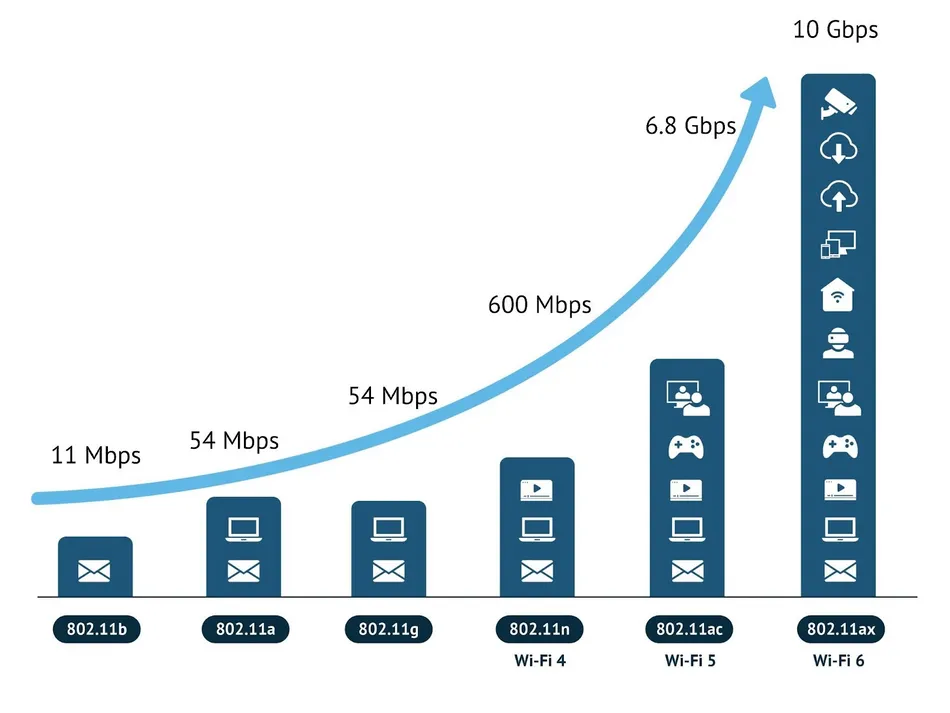

1.1 Evolution of Protocol Standards

2.4GHz Band: The Legacy of 802.11b/g/n (Wi-Fi 4)

  • Theoretical Coverage:

    • Indoor: 35 meters | Outdoor: 140 meters (limited by 20MHz channel width)

  • Speed Range:

    • 11Mbps (802.11b) → 54Mbps (802.11g) → 600Mbps (802.11n)

  • Strengths: Excellent penetration through walls, ideal for legacy devices.

5GHz Band: The Performance Leap of 802.11ac (Wi-Fi 5)

  • Theoretical Coverage:

    • Indoor: 28 meters | Outdoor: 92 meters (80MHz channel width)

  • Key Features:

    • Beamforming technology boosts edge signal strength by 30%, reducing dead zones.

    • Higher speeds (up to 3.5Gbps) for bandwidth-heavy tasks like 4K streaming.

6GHz Band & Beyond: 802.11ax (Wi-Fi 6/6E)

  • Spectrum Expansion:

    • New 6GHz band (5925–7125MHz) for less congestion.

  • Performance Enhancements:

    • OFDMA technology improves coverage in dense device environments by 400%.

    • Directional antenna setups achieve up to 300 meters of outdoor coverage.

  • Speed Milestone: Supports up to 10Gbps for ultra-low-latency applications (e.g., AR/VR).


2. 9 Dimensions of Signal Attenuation: Why Your Wi-Fi Drops

2.1 Material Penetration Losses (dB Reduction)

Material Type

2.4GHz Loss

5GHz Loss

6GHz Loss

Gypsum Drywall

3dB

5dB

7dB

Concrete Wall

12–20dB

20–30dB

35dB+

Tempered Glass

6dB

8dB

10dB

Human Body (per meter)

2dB

4dB

6dB

Pro Tip: 5GHz/6GHz signals struggle with thick walls—place routers in central, open spaces.

2.2 Hidden Interference Culprits

  • Bluetooth Devices (2.4GHz): Reduce throughput by 15% due to frequency overlap.

  • Microwaves: Cause 80% packet loss in 2.4GHz during operation—avoid placing routers near kitchens.

  • Neighboring Wi-Fi (Same Channel): Each additional AP on the same channel drops signal quality by 3dB.

3. Professional-Grade Signal Enhancement Strategies

3.1 Antenna Technology Breakthroughs

MIMO (Multiple-Input Multiple-Output) Magic

  • 4×4 MIMO vs. 2×2 MIMO: Increases effective coverage area by 40% in multi-device environments.

  • Adaptive Beamforming: Directs signals precisely (angle error <0.5°), improving edge device connectivity.

Phased Array Antennas

  • 128-Element Arrays: Achieve ±60° beam control for long-distance point-to-point links.

  • Range Boost: Extends effective transmission distance by 200% in outdoor setups.

3.2 Smart Network Topology Design

Mesh Networking Best Practices

  • Tri-Band Advantage: Dedicated backhaul channel for seamless node communication.

  • Optimal Node Spacing: Place nodes within 2/3 of the main router’s signal radius (e.g., 20m apart for a 30m radius router).

  • Automatic Path Compensation: Algorithms adjust for wall/obstacle losses in real time.

Powerline Networking Comparison


Technology

Latency

Bandwidth

Ideal For

HomePlug AV2

<5ms

1200Mbps

Multi-story concrete homes with power-line-only infrastructure

G.hn

3ms

2Gbps

Homes with existing wiring (power, coax, or phone lines) requiring high-speed, low-latency connections

4. The Future of Wi-Fi: What’s on the Horizon

4.1 Wi-Fi 7 (802.11be) Innovations

  • 320MHz Ultra-Wide Channels (6GHz): Doubles peak speeds to 30Gbps+ for enterprise-grade networks.

  • Multi-Link Aggregation: Bonds 2.4GHz, 5GHz, and 6GHz channels for stable, high-speed connections.

  • 16K QAM: Improves spectral efficiency by 20%, ideal for dense urban environments.

4.2 Intelligent Reflecting Surfaces (IRS)

  • Programmable Metasurfaces: Arrays of tiny antennas that redirect signals around obstacles.

  • Lab Results: Boosts coverage by 500% in complex indoor layouts—expect commercial adoption by 2026.

5. Hands-On Optimization Guide for Home/Office

5.1 Essential Survey Tools

  • Ekahau Sidekick: Professional-grade spectrum analyzer (0.1dBm precision) for channel mapping.

  • NetSpot Pro: Generates heatmaps with 0.5m grid resolution to identify dead zones.

  • WiFi Analyzer (Mobile): Real-time channel occupancy monitor for quick troubleshooting.

5.2 Router Placement “Golden Triangle”

  1. Vertical Height: Mount routers at 1.5–2.1 meters (avoid floors/ceilings).

  2. 45° Angle Tilt: Optimizes signal distribution for multi-story homes (test with heatmap tools).

  3. DIY Metal Reflector: Place a aluminum sheet behind the antenna to boost gain by 3–5dB (ideal for extending coverage to a specific area like a garden).

Conclusion: Redefining Wireless Frontiers

From the quantum-inspired research to terahertz band exploration, wireless technology is pushing beyond classical physics. By understanding the physical limits of today’s Wi-Fi—from frequency bands to material losses—you can design a network that meets modern connectivity demands. Whether streaming 8K content or building a smart home, every radio wave navigating your walls is a step toward a more connected future.

Common Wi-Fi Coverage FAQs

Here are data-driven answers to the most searched questions, bridging technical principles with real-world solutions:

Q1: How to Minimize Home Appliance Interference with Wi-Fi?

Appliances and wireless devices often clash on the 2.4GHz band. Follow these evidence-based steps:

  • Strategic Placement:

  1. Keep routers 2 meters away from microwaves (reduces 80% packet loss during operation, per data in Section 2.2).

  2. Separate Bluetooth devices (speakers, keyboards) by 1 meter to mitigate 15% throughput loss from frequency overlap.

  • Band Segregation:

  1. Assign high-bandwidth devices (4K TVs, gaming consoles) to 5GHz/6GHz (less interference, ideal for Beamforming’s 30% edge signal boost).

  2. Reserve 2.4GHz for low-speed devices (smart plugs, cameras) leveraging its superior wall penetration (3dB loss through gypsum vs. 5dB for 5GHz, Table in Section 2.1).

  • Channel Optimization:

  1. Use tools like WiFi Analyzer to avoid crowded 2.4GHz channels—choose 1/6/11 (non-overlapping in China; each additional neighbor AP reduces signal quality by 3dB, insight from Section 2.2).

Q2: How to Select the Optimal Wi-Fi Channel?

Channel choice directly impacts speed and stability. Here’s a frequency-by-frequency guide:

  • 2.4GHz (Long-Range Priority):

  1. Only channels 1/6/11 are non-overlapping—use NetSpot Pro to select the channel with signal strength > -70dBm (ideal for rooms behind concrete walls, where 2.4GHz experiences 12–20dB loss vs. 5GHz’s 20–30dB loss, Table in Section 2.1).

  • 5GHz (High-Speed Priority):

  1. Opt for non-overlapping channels 149/153/157/161 (China-approved) for 4K streaming. Enable 80MHz wide channels (Wi-Fi 5/6 routers) to achieve up to 3.5Gbps.

  • 6GHz (Low-Latency Future):

  1. New 5925–7125MHz band (75% less congestion than 2.4GHz) is perfect for AR/VR (supports 10Gbps, data from Section 1.1) and dense environments (OFDMA enhances coverage by 400%, insight from Section 1.1).

Pro Tool: Ekahau Sidekick analyzes channel occupancy with 0.1dBm precision to identify the least crowded option.


Ready to upgrade every layer of your wireless network? Discover LB-LINK’s three-pronged solution:

  • Routers for powerful central coverage (supports 50+ devices),

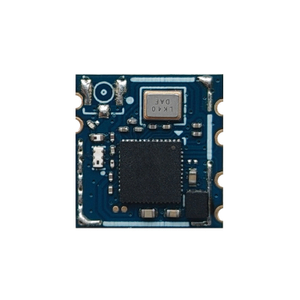

  • Wi-Fi Modules for embedding fast, stable connectivity into any device,

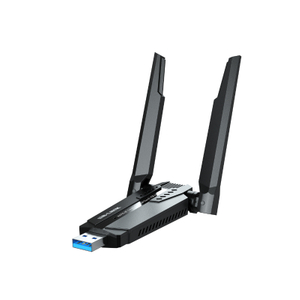

  • USB/PCIe Adapters for boosting laptops, desktops, and media players with 6GHz speed.

Designed to work together, they deliver 30% stronger signals, 40% faster file transfers, and zero dead zones—perfect for streaming, gaming, and smart home innovation. Start exploring today!
