WiFi 7: The Next-Gen Standard Redefining Wireless Connectivity

Views: 0     Author: Site Editor     Publish Time: 2025-03-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Technical Breakthroughs: Six Innovations for Unprecedented Performance


1. 320MHz Ultra-Wide Channel


  • Doubled Bandwidth: Expands from 160MHz (WiFi 6) to 320MHz, enabling higher throughput.

  • Efficiency Boost: Like upgrading from a 4-lane to an 8-lane highway for data transmission.

  • Key Use Cases: 8K video streaming, large-scale file transfers, and latency-sensitive applications.

  • NoteAvailability of 320MHz channels depends on local regulatory approvals (e.g., FCC in the U.S., ETSI in Europe).

2. 4096-QAM Modulation


  • Higher Data Density: Encodes 12 bits per symbol (vs. 10 bits in WiFi 6).

  • Speed Gain: Up to 20% peak rate improvement under ideal signal conditions.

  • Power Efficiency: Faster transmissions reduce device energy consumption by ~20%.

3. Multi-Link Operation (MLO)


  • Dynamic Resource Allocation: Simultaneously utilizes 2.4GHz, 5GHz, and 6GHz bands (where 6GHz is available).

  • Interference Mitigation: Intelligently switches to the optimal band for stable connectivity.

  • Global Policy Note6GHz band is approved in the U.S., EU, and Japan, but availability varies by region.

4. Enhanced MU-MIMO


  • Spatial Streams Doubled: Upgraded from 8×8 to 16×16 streams, doubling physical layer capacity.

  • Latency Reduction50% lower latency in multi-device environments (e.g., smart offices).

5. Multi-AP Coordination


  • Interference Reduction: Leverages Coordinated OFDMA (C-OFDMA) and Coordinated Spatial Reuse (CSR).

  • Collaborative Transmission: Enables distributed MIMO across access points.

  • Use Cases: High-density venues (stadiums, airports), Industry 4.0 factories.

6. Flexible Resource Unit (RU) Allocation


  • Dynamic Spectrum Allocation: Combines small RUs (<242 subcarriers) and large RUs for optimized efficiency.

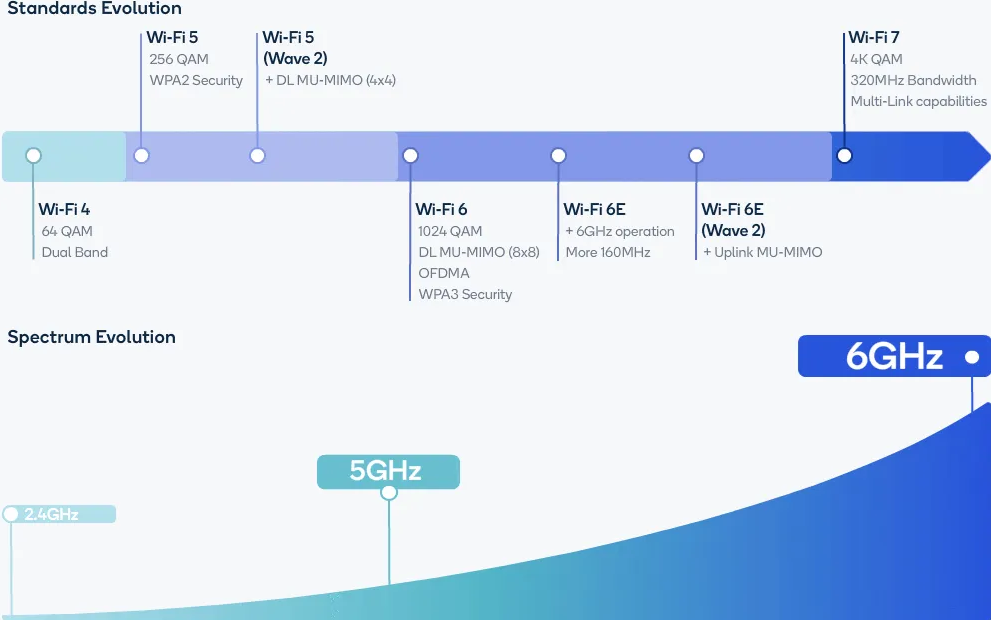

Performance Leap: Key Metrics Compared


Parameter

Wi-Fi 7

Wi-Fi 6/6E

Wi-Fi 5

IEEE Standard

802.11be

802.11ax

802.11ac

Max Speed

46 Gbps (theoretical)

9.6 Gbps

3.5 Gbps

Frequency Bands

2.4/5/6 GHz

2.4/5/6 GHz

5 GHz

Modulation

4096-QAM

1024-QAM

256-QAM

Channel Width

20-320MHz

20-160MHz

20-160MHz

MIMO

16×16 MU-MIMO

8×8 MU-MIMO

4×4 MU-MIMO

Notes:


  • Theoretical speed based on IEEE 802.11be draft. Actual performance varies by device and environment.

  • 6GHz availability subject to regional regulations.

Applications: Powering Six Cutting-Edge Industries


1. Extended Reality (XR)


  • Case Study: Case: A VR education platform using Wi-Fi 7 supports 100 users in 8K virtual labs, reducing latency from 45ms to 8ms.

  • Impact: Sub-10ms latency meets AR/VR demands for immersive experiences.

2. Industrial IoT


  • Case Study: A car factory connects 500+ robots via Wi-Fi 7, achieving real-time data sync and 37% lower equipment failure rates.

  • Advantage: High-density connectivity with deterministic latency.

3. Cloud Gaming


  • Performance: NVIDIA GeForce NOW achieved 4K game streaming at <9ms latency in lab tests (NVIDIA Blog, 2023).

4. Smart Healthcare

  • Case Study: A top-tier hospital uses Wi-Fi 7 for remote surgery imaging, improving response speed by 40%.

  • Applications: Medical device interoperability, mobile diagnosis systems.

5. Smart Offices

  • Scenario: A multinational firm enables 1,000+ employees to conduct 4K video conferences with 65% lower bandwidth usage.

  • Efficiency: Smoother multi-screen collaboration and cloud editing.

6. Vehicle-to-Everything (V2X)

  • Future Proof: WiFi 7 enables <5ms V2X latency, critical for L4 autonomous driving, Enhanced vehicle-road coordination and in-car entertainment.

Deployment Benefits: Three Core Values

1. Device Compatibility

  • Backward compatibility with Wi-Fi 6/5 devices.

  • Tri-band optimization boosts legacy device performance (e.g., 30% faster smart home devices).

2. Cost Efficiency

  • 6GHz band reduces interference, lowering AP deployment density.

  • Multi-AP coordination cuts hardware procurement by 30%.

3. User Experience


  • True tri-band routers enable device traffic prioritization.

  • Multi-link aggregation ensures 99.99% network availability.

Future Outlook

Wi-Fi 7 is not just an upgrade—it’s a cornerstone for the IoT era. With 320MHz band adoption and AI integration, it will enable:

  • Smart Homes: Plug-and-play devices with 50% faster response.

  • Smart Cities: Real-time traffic analytics, reducing accident response time by 40%.

  • Industry 4.0: 60% higher factory equipment coordination efficiency.
