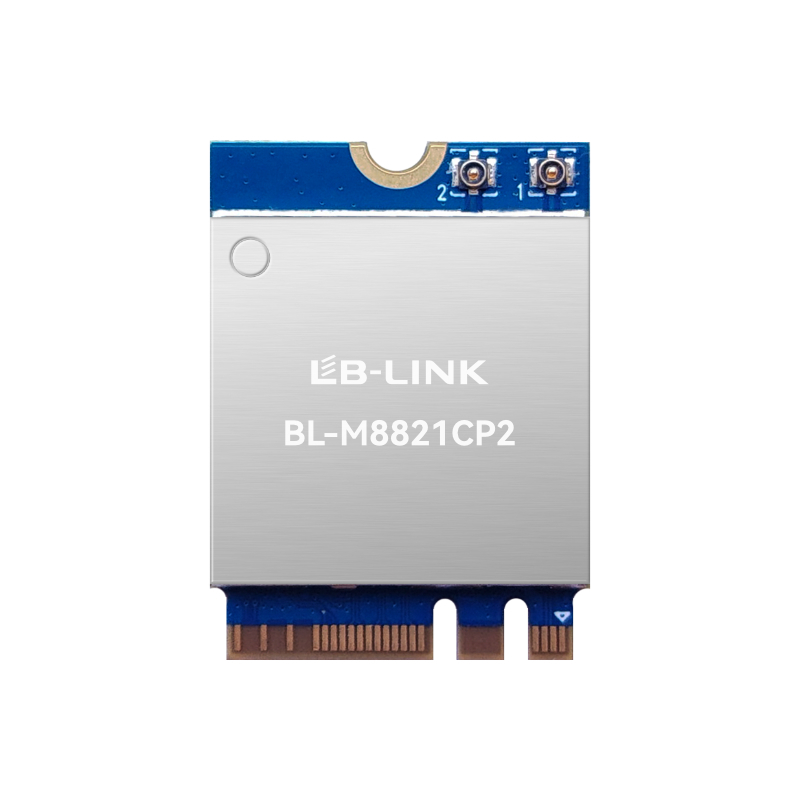

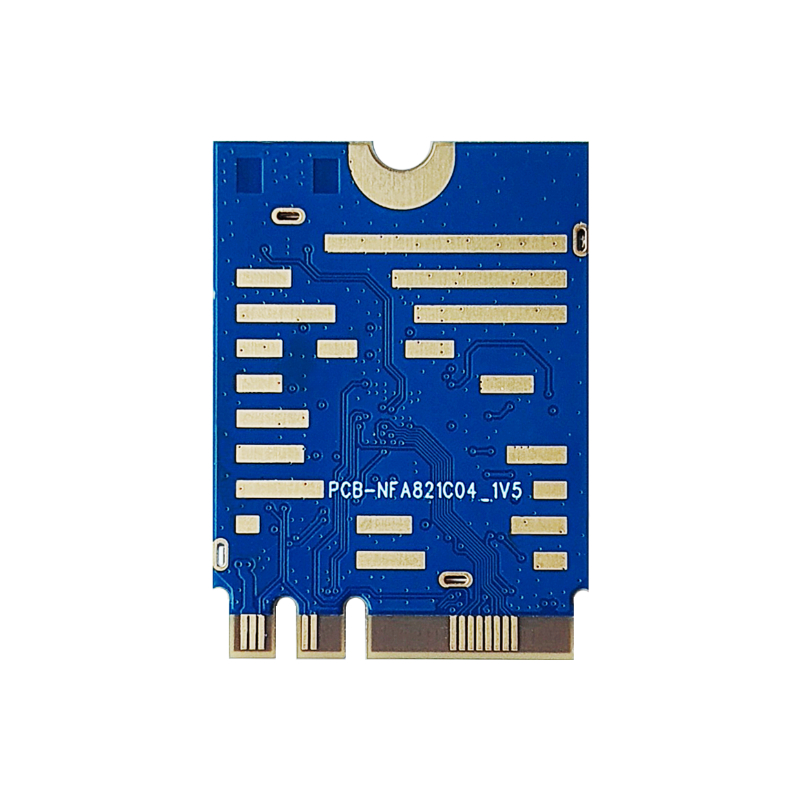

BL-M8821CP2
LB-LINK
V5.0
REALTEK
1T1R
Wi-Fi:PCIe BT:USB
Introduction
BL-M8821CP2 is a highly integrated Dual-band WLAN+Bluetooth Combo M.2 Card. It combines a 1T1R Dual-band WLAN subsystem with PCI Express interface controllers and a B v5.0 subsystem with USB interface controller. This card compatible IEEE 802.11a/b/g/n/ac standard and provides the maximum PHY rate up to 433Mbps, it supports B dual mode with v5.0/v4.2/v2.1 compliant. The card provides a complete solution for high-performance integrated wireless and B devices such as laptops, set-top boxes, smart TVs, etc.
Features
Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz
IEEE Standards: IEEE 802.11a/b/g/n/ac
Form factor: M.2 2230 generic A key or E key
Wireless PHY rate can reach up to 433Mbps
Connect to external antenna through MHF4 connectors
Power Supply: DC3.3V±0.2V power supply

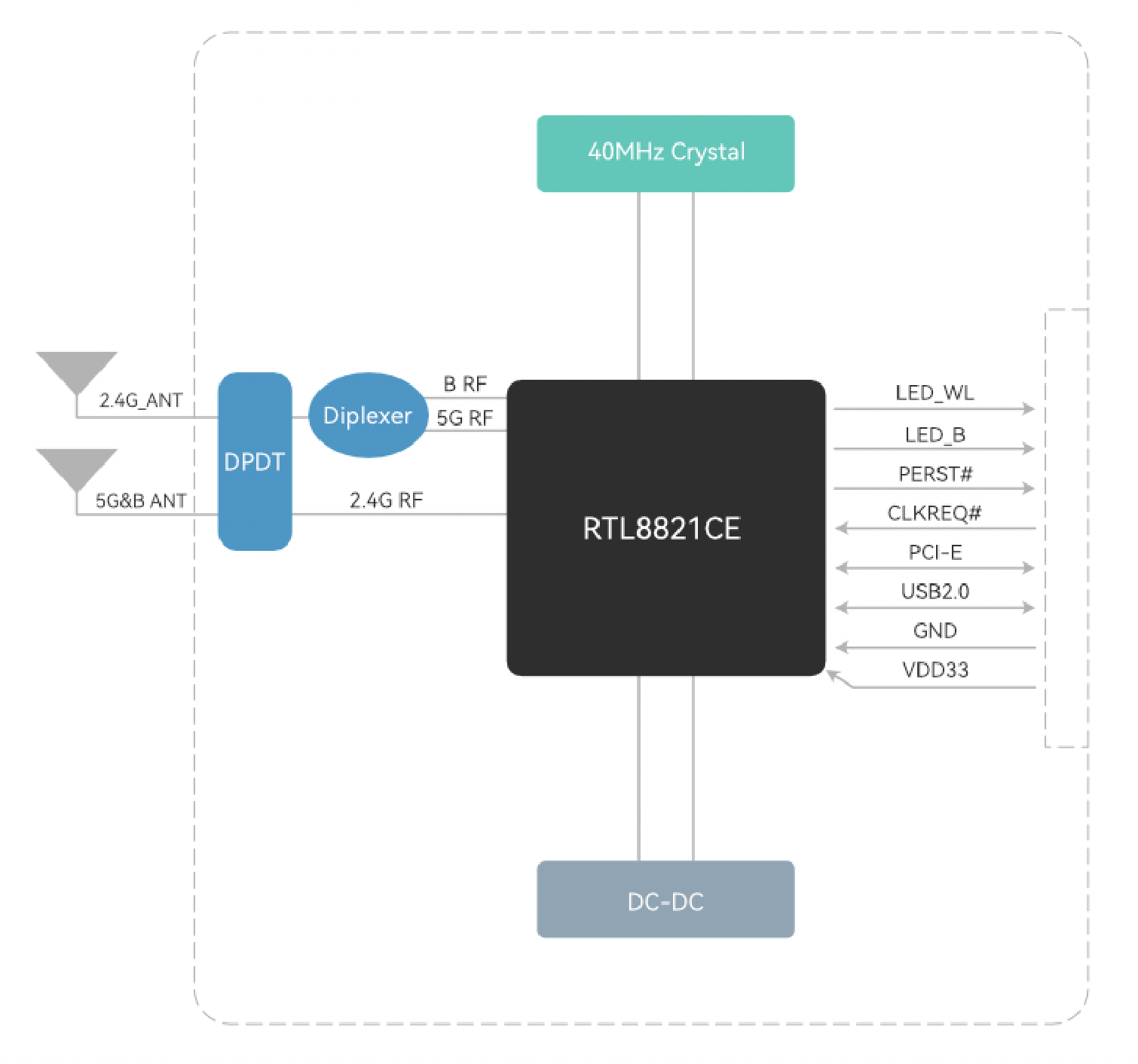

Block Diagram
General Specifications
Card Name | BL-M8821CP2 |
Chipset | RTL8821CE-VC-CG |
WLAN Standards | IEEE802.11a/b/g/n/ac |
B Core Specification v5.0/4.2/2.1 | |
Host Interface | PCI Express 1.1 for WLAN & USB2.0 FS for B |
Antenna | |
Dimension | M.2, 30*22*2.15mm (L*W*H) |
Power Supply | DC 3.3V±0.2V@1000mA (Max) |
Operation Temperature | -20℃ to +70℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |

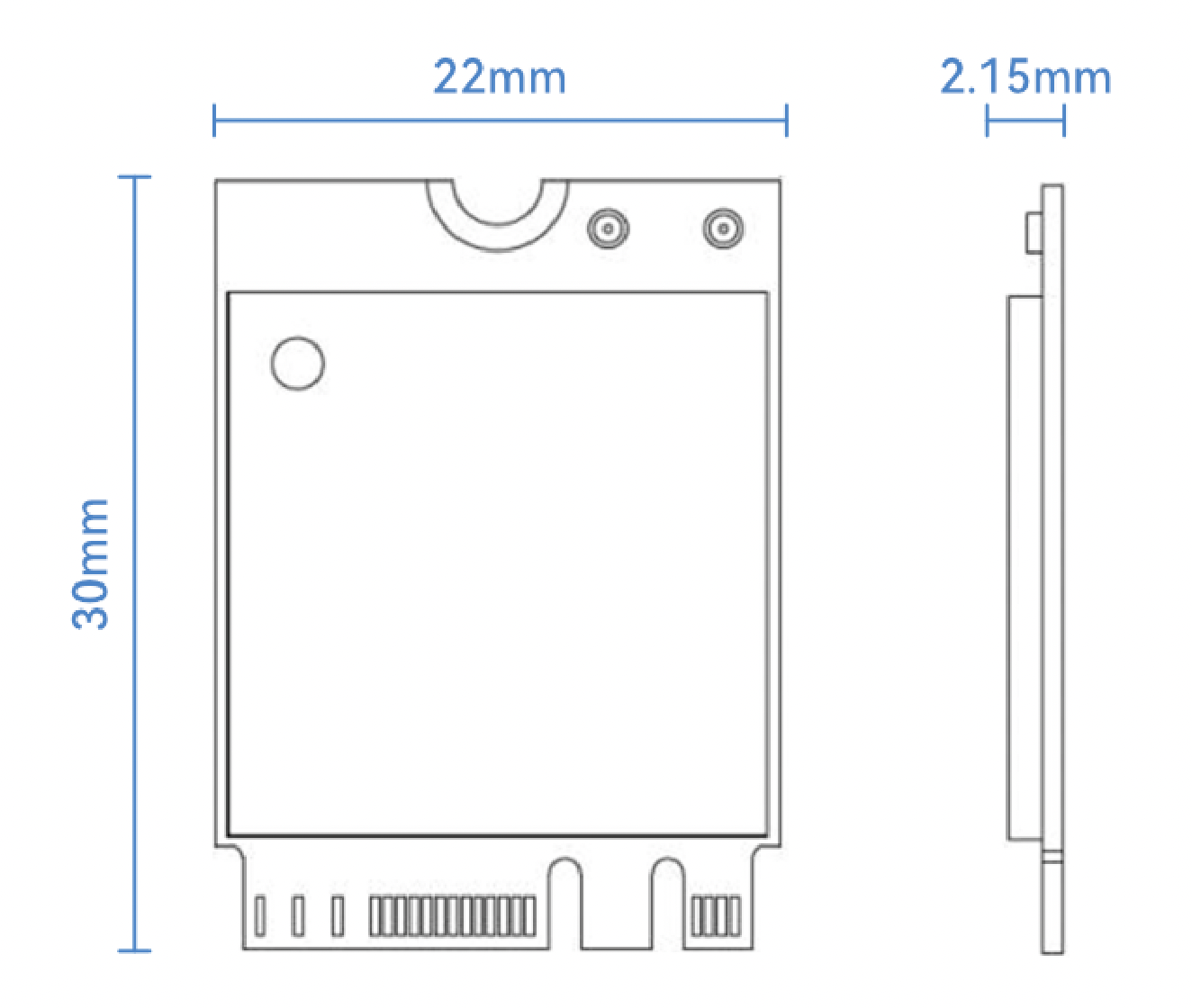

Product Dimension
Card dimension: 30.0*22.0*2.15mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
IPEX / MHF-4 connector dimension: 2.0*2.0*0.6mm (L*W*H, Ø1.5mm)
Package Dimensions

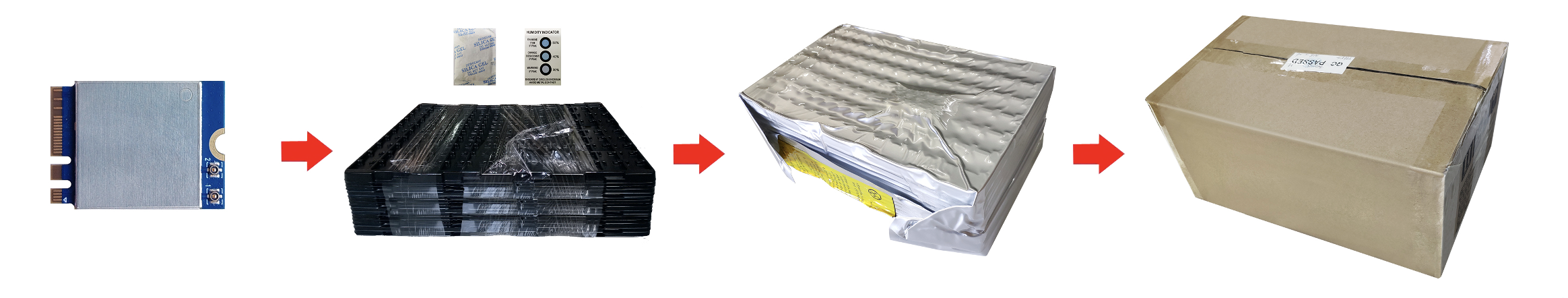

Package specification:
1. 35 modules per blister plate and 700 modules per box.
2. The blister is bound with wire membrane and put into anti-static vacuum bag.
3. Put 1 bag of dry beads (20g) and 1 humidity card in each anti-static vacuum bag.
4. The outer box size is 35.2*21.5*15.5cm.
Introduction
BL-M8821CP2 is a highly integrated Dual-band WLAN+Bluetooth Combo M.2 Card. It combines a 1T1R Dual-band WLAN subsystem with PCI Express interface controllers and a B v5.0 subsystem with USB interface controller. This card compatible IEEE 802.11a/b/g/n/ac standard and provides the maximum PHY rate up to 433Mbps, it supports B dual mode with v5.0/v4.2/v2.1 compliant. The card provides a complete solution for high-performance integrated wireless and B devices such as laptops, set-top boxes, smart TVs, etc.
Features
Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz
IEEE Standards: IEEE 802.11a/b/g/n/ac
Form factor: M.2 2230 generic A key or E key
Wireless PHY rate can reach up to 433Mbps
Connect to external antenna through MHF4 connectors
Power Supply: DC3.3V±0.2V power supply
Block Diagram
General Specifications
Card Name | BL-M8821CP2 |
Chipset | RTL8821CE-VC-CG |
WLAN Standards | IEEE802.11a/b/g/n/ac |
B Core Specification v5.0/4.2/2.1 | |
Host Interface | PCI Express 1.1 for WLAN & USB2.0 FS for B |
Antenna | |
Dimension | M.2, 30*22*2.15mm (L*W*H) |
Power Supply | DC 3.3V±0.2V@1000mA (Max) |
Operation Temperature | -20℃ to +70℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |
Product Dimension
Card dimension: 30.0*22.0*2.15mm (L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
IPEX / MHF-4 connector dimension: 2.0*2.0*0.6mm (L*W*H, Ø1.5mm)
Package Dimensions
Package specification:
1. 35 modules per blister plate and 700 modules per box.
2. The blister is bound with wire membrane and put into anti-static vacuum bag.
3. Put 1 bag of dry beads (20g) and 1 humidity card in each anti-static vacuum bag.
4. The outer box size is 35.2*21.5*15.5cm.
