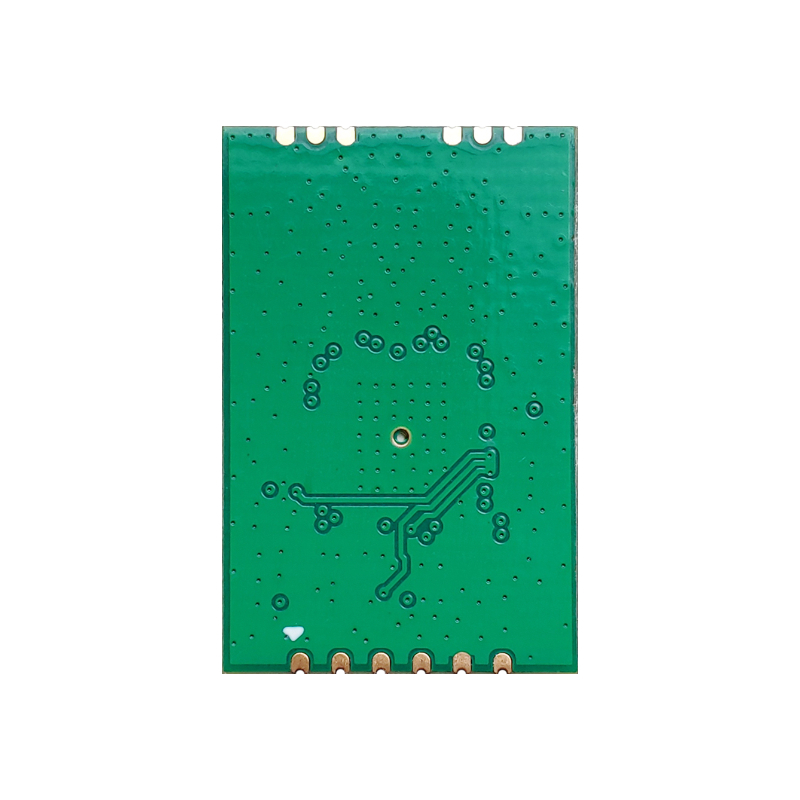

Introduction
BL-M8812CU3 is a highly integrated module that was built in a 2*2 dual-band wireless LAN radio. It combines a WLAN MAC, a 2T2R capable WLAN base band. It supports IEEE 802.11a/b/g/n/ac standard and provides the highest PHY rate up to 867Mbps, It can offer feature-rich wireless connectivity and reliable throughput from an extended distance.
Features
Operating Frequencies: 2.4~2.4835GHz and5.15~5.85GHz
IEEE Standards: IEEE 802.11a/b/g/n/ac
Wireless PHY rate can reach up to 867Mbps
Connect to external antennas through IPEX connectors
Host Interface is USB2.0
Power Supply: DC 3.3V±0.2V main power supply
Block Diagram
![屏幕截图 2025-12-30 144112]()
General Specifications
Module Name | BL-M8812CU3 |
Chipset | RTL8812CU-CG |
WLAN Standards | IEEE802.11a/b/g/n/ac |
Host Interface | USB2.0 for WLAN |
Antenna | Connect to the external antennas through IPEX connectors |
Dimension | 27.0*17.8*3.1mm (L*W*H) |
Power Supply | DC 3.3V±0.2V @850mA (Max) |
Operation Temperature | -20℃ to +70℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |
Product Dimension
![屏幕截图 2025-12-30 144124]()

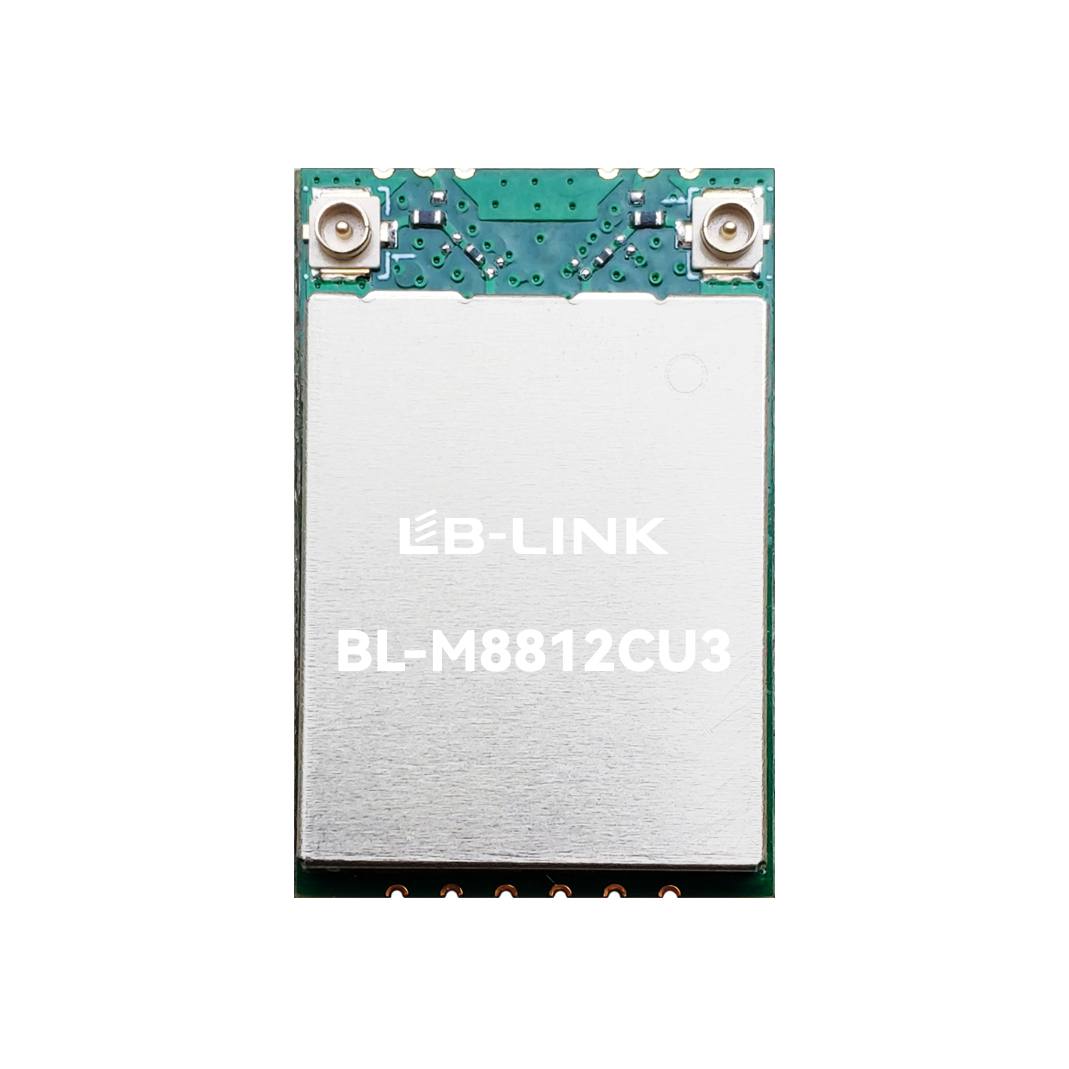

Module dimension: 27.0mm*17.8mm*3.1mm （L*W*H ; Tolerance: ±0.15mm）
IPEX / MHF-1 connector dimension: 3.0*2.6*1.2mm (L*W*H, Ø2.0mm)
Package Dimensions
![图片1]()
![图片2]()
Package specification:
1. 700 modules per roll and 2,800 modules per box.
2. Outer box size: 37.5*36*29cm.
3. The diameter of the blue environment-friendly rubber plate is 13 inches, with a total thickness of 48mm (with a width of 44mm carrying belt).
4. Put 1 package of dry agent (20g) and humidity card in each anti-static vacuum bag.
5. Each carton is packed with 4 boxes.
