A high-power wireless module can help a UAV sustain a usable FPV video link when distance, platform movement, and local RF noise make ordinary Wi-Fi hardware unreliable. But transmit power alone does not create a dependable downlink. The final result depends on radio architecture, channel width, receive sensitivity, antennas, thermal design, host integration, and the operating environment. This guide explains how engineering teams should evaluate a module for an UAV drone FPV video downlink, where the goal is not a headline range figure but predictable video and control awareness for the intended mission.
A high-power wireless module improves link budget, but antenna placement, receiver performance, channel selection, and line of sight still determine real-world usability.
For FPV video, evaluate throughput, latency, packet recovery, and video quality together; a fast PHY-rate figure is not an end-to-end video guarantee.
Narrower channels can improve receiver robustness and range margin, but they reduce the throughput available to the video encoder and other traffic.
Heat, power supply stability, and electromagnetic compatibility are integration requirements, not afterthoughts on a compact airframe.
Select hardware against a tested mission profile and comply with the radio rules that apply to the country, band, and airborne installation.
An FPV downlink is an air-to-ground radio system that carries a live view from the aircraft to an operator or ground station. Depending on the platform, it may also coexist with telemetry, IP traffic, payload information, or command-related data. The operator notices the system only when something goes wrong: the picture freezes during a turn, latency grows near structures, or the link loses margin as the aircraft moves away from the ground antenna.
That is why a high-power wireless module should be assessed as part of a link, not as an isolated component. The aircraft-side radio, ground-side receiver, antennas, feeders, video encoder, host processor, battery, and physical installation all influence the outcome. A module with higher conducted output can provide useful margin, yet poor antenna polarization or an obstructed antenna can consume that margin quickly.
Frequency also changes the trade-off. In general, lower-frequency systems can be more forgiving of some obstructions but offer less bandwidth, while 2.4 GHz and 5 GHz systems are commonly considered where higher video throughput is needed. At higher frequencies, path loss, antenna directionality, airframe shadowing, and crowded spectrum deserve closer attention. A design team should therefore decide first what the link must deliver: a clear live picture in open terrain, a low-delay maneuvering view, a long-distance survey feed, or a robust feed in a noisy industrial site.
“High power” is often used loosely. In engineering terms, it should lead to questions about conducted transmit power, the complete RF front-end, receiver sensitivity, modulation mode, and permitted effective radiated power. It does not mean that every installation will achieve the same distance.
A module may include a power amplifier and front-end components that raise transmit capability, but range is still shaped by the entire link budget. The ground station’s receive antenna can be as influential as the aircraft transmitter. A better-positioned directional ground antenna, correct polarization, and low-loss RF path may produce a more useful improvement than simply increasing aircraft-side output.
For product teams comparing options, use a repeatable evaluation sheet rather than judging from output power alone. The following framework keeps the important variables visible.
Evaluation item | Why it matters for FPV video | What to verify during design |
|---|---|---|
Conducted RF output | Adds transmit-side link margin when it is legal and properly integrated | Power setting, test method, applicable local limits, and power stability |
Receiver sensitivity | Helps the link remain usable as signals weaken | Sensitivity under the intended channel width and data mode |
RF architecture | Affects diversity, spatial streams, and resilience to fading | Antenna count, 1T1R or 2T2R design, and host compatibility |
Channel width | Trades capacity for range margin and interference tolerance | Video bitrate requirement, 10 MHz or wider-channel support, and local spectrum use |
Antenna system | Determines how effectively the radio energy is launched and received | Polarization match, airframe clearance, coax loss, and ground-station antenna choice |
Thermal and power design | High output and sustained video load produce heat and current demand | Temperature testing, voltage sag, regulator headroom, and airflow in flight |
Software and host interface | Determines whether the module works cleanly with the video system | USB or other interface, driver support, operating system, and video pipeline |
An industrial high-power wireless module is therefore not automatically the right choice because it has a larger number on a specification sheet. The right module is the one that maintains the required video service within the aircraft’s size, weight, power, cooling, integration, and regulatory constraints.
Radio links weaken with distance and can also be impaired by terrain, buildings, vegetation, the aircraft battery, carbon-fiber structures, and other RF devices. In FPV use, motion makes these conditions change continuously. A small roll angle can place an antenna in an unfavorable orientation; a turn can introduce airframe shadowing; and a busy site can add interference that was absent during bench testing.
Think of link budget as a margin account. Transmit power contributes to it, while path loss, connector loss, fading, interference, and receiver requirements withdraw from it. Antenna gain and receiver performance add to it. When the remaining margin becomes too small, the visible symptom might be dropped frames, reduced video quality, increased latency, or a disconnection.
This view leads to practical priorities. First, make the antenna system correct before changing output power. Use matched polarization at both ends, keep aircraft antennas clear of conductive material where possible, and separate them from high-noise electronics. Second, test the actual ground station, because the receiver side often determines operational coverage. Third, run the test with the intended payload, encoder setting, and flight attitude rather than a static bench setup.
Higher output also creates responsibilities. It can increase current demand and heat, and it may place the installation outside license-free limits in a given jurisdiction. Legal requirements differ by location and by the exact band, device approval, antenna, and use case. Treat regulatory review as a design gate, not a final documentation task.
FPV video is sensitive to the relationship between radio capacity and encoder demand. A high-resolution or high-frame-rate stream needs sufficient throughput, but reserving the widest possible RF channel is not always beneficial. Wider channels can offer more capacity, while narrower channels can help concentrate the available energy and may provide more range margin in a suitable design. The cost is reduced headroom for video and concurrent data.
Start with the image quality that the operator truly needs. A pilot avoiding obstacles may prioritize short delay and motion clarity. An inspection workflow may need enough detail for a human decision but can accept a less aggressive frame rate. A mapping or recording task may keep the master footage onboard and use the downlink mainly for framing and situational awareness. These are different radio requirements even when all are described as HD video.
Set the encoder bitrate below the measured sustainable throughput rather than the advertised peak PHY rate. Leave capacity for retransmissions, protocol overhead, changing modulation, and any telemetry or payload traffic. Then verify the experience at the edge of the intended coverage area, not just next to the ground station. If video quality collapses abruptly, consider encoder adaptation, channel planning, antenna changes, or a lower bandwidth mode before concluding that more transmit power is the answer.

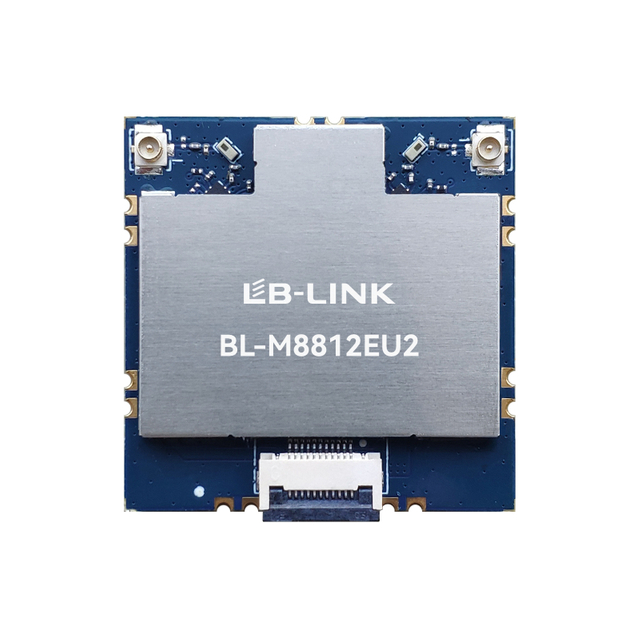

LB-LINK lists a BL-M8812EU2 5 GHz Wi-Fi module built around a 2T2R 802.11a/n/ac architecture with USB 2.0, support for 10 MHz narrow bandwidth, and a stated maximum PHY rate of up to 867 Mbps. Those specifications make it a useful example of the questions to ask: can the host provide a stable USB path, does the software support the selected channel mode, and does the chosen video bitrate leave enough operational margin? The PHY rate should be treated as a radio capability, not as a promised live-video bitrate.
An antenna is not an accessory in a UAV video downlink. It is part of the radio system. A high-power transmitter coupled to an incorrectly installed antenna can perform worse than a lower-power design with a clean RF layout.
Begin by matching polarization. If the aircraft and ground antennas use incompatible polarization, signal loss can be severe. Next, examine physical placement. Batteries, carbon fiber, wiring harnesses, cameras, and metal fasteners can all alter the antenna environment. Place antennas where the airframe is least likely to block the path to the ground station through the flight attitudes that matter most.
Diversity and multi-antenna designs can improve resilience when the signal path changes, but they must be implemented as a system. Give antennas meaningful spatial separation and orientation diversity where the platform permits it. Route coaxial cables carefully, minimize unnecessary loss, and secure connectors against vibration. On the ground, a directional antenna can extend useful coverage in a planned sector, while an omnidirectional antenna can be more appropriate when the aircraft’s direction is unpredictable. Some deployments use a complementary combination, but it must be tested with the actual receiver and operating pattern.
The same discipline applies to interference. Scan the intended operating area where possible and avoid treating an empty channel during a site survey as permanently clean. Industrial Wi-Fi, other drones, temporary production equipment, and nearby buildings can change the RF environment. A robust design has a channel plan and a recovery procedure, not just a high-power setting.
High-power radio operation and sustained video transmission create heat. In a flying aircraft, airflow can help, but enclosed avionics bays, hot weather, solar load, and low-speed flight can remove that advantage. Do not validate thermal performance only on a cool bench or only after a short flight.
The module, power amplifier, host processor, and voltage regulator should be considered together. Measure input voltage at the radio under peak video load, rather than relying on the nominal battery voltage. A sagging supply can reduce RF performance or cause resets that look like a radio problem. Select a regulator with appropriate headroom and consider the effect of motors, ESCs, and switching power supplies on conducted and radiated noise.
Mechanical details matter as well. A small module may simplify packaging, yet it still needs appropriate mounting, strain relief for cables, and a thermal path that follows the supplier’s integration guidance. If a thermal pad, shield, or conductive path is part of the intended design, changing it can change both reliability and RF behavior. Flight vibration can loosen connectors or damage unsupported coax, so qualification should include the complete assembled airframe.

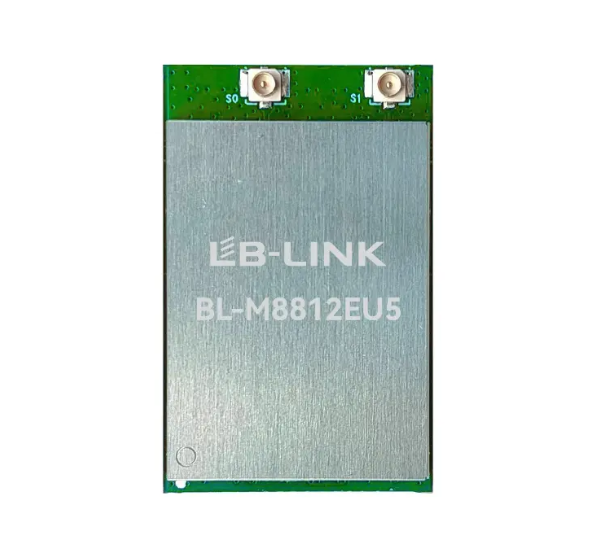

For teams exploring a high-power architecture, the manufacturer’s long-range drone video transmission solution shows that module selection is tied to antenna interfaces, thermal measures, bandwidth mode, and the intended range class. That system perspective is more valuable than copying a single module specification into a bill of materials.
The most efficient buying decision begins with mission criteria. Define the maximum intended operating distance, flight environment, acceptable live-view delay, video quality threshold, airframe power budget, operating temperature, ground-station configuration, and applicable radio rules. Then shortlist modules whose interface, radio band, RF architecture, and support model fit the host platform.
Build a representative pair of aircraft-side and ground-side systems early. Use the actual camera, encoder, processor, antennas, enclosure, battery, and firmware configuration. A development kit can prove basic compatibility, but it cannot reveal all the losses and interference created by the finished aircraft.
Test progressively. Begin with a bench check for startup, interface stability, and thermal behavior. Continue with short-range outdoor video tests, then evaluate distance, different flight attitudes, interference, and warm conditions. Record not only whether the video remains visible, but also latency behavior, packet loss, resolution changes, reconnect time, supply voltage, and component temperature. Repeating the test route makes comparisons meaningful.
Use the results to make a balanced decision. If the link is robust but the electronics run hot, improve cooling or reduce the required RF operating point. If the signal fails only during turns, revisit antenna placement and polarization. If video becomes blocky before the radio loses association, tune the encoder and bitrate. If the entire link degrades in a crowded area, revisit channel selection and system architecture. This process turns “long range” from a marketing phrase into a documented design target.
An industrial high-power wireless module is most relevant where the aircraft must send a useful live view across an open but changing environment and where ordinary consumer Wi-Fi integration does not provide sufficient margin. Typical examples include infrastructure observation, perimeter monitoring, agricultural operations, remote imaging, and specialized UAV platforms that need a video feed for situational awareness.
The correct solution varies by mission. A compact FPV craft may favor low latency and careful antenna placement over a heavy radio subsystem. A larger inspection platform may have more room for a higher-capability module, better thermal management, and a directional ground station. A multi-aircraft or obstructed environment may require a different network architecture rather than simply more RF output. In each case, the design objective is consistent service, not maximum bench-test distance.
When sourcing a module, ask for documentation that supports the intended integration: interface information, supported modes, antenna guidance, thermal recommendations, driver or software information, and test conditions behind published performance data. Shenzhen Bilian Electronic Co., Ltd. develops wireless modules and system solutions under the LB-LINK brand; that is useful context when a project needs both a component and engineering discussion around its integration. Confirm the final product configuration directly with the supplier before locking an airborne design.
A high-power wireless module can be a strong building block for a UAV drone FPV video downlink, but the module is only one element of a dependable air-to-ground link. Choose it by balancing radio capability with receiver performance, channel width, video bitrate, antenna design, thermal management, power quality, and compliance. Validate the complete system in the operating conditions that matter to the mission.
For OEMs and integrators, LB-LINK provides relevant 5 GHz module and drone-transmission resources that can support an evidence-based starting point. The best outcome comes from converting the requirement into measurable tests and selecting the radio configuration that maintains usable video margin—not simply the one with the highest stated transmit power.
It is a radio module designed to provide more RF link margin than a typical low-power wireless component. For UAV use, it may support live video, IP data, or related communications, but suitability depends on the radio band, interface, antenna system, host software, cooling, and local operating rules.
No. Higher power can add margin, but it does not overcome poor antenna placement, mismatched polarization, excessive coax loss, terrain blockage, interference, or weak ground-side reception. It can also increase heat and power demand. Improve the full link before raising output power.
A narrower channel can reduce the bandwidth available to the video system, but it may improve range margin and robustness in an appropriately engineered link. Whether it is the right choice depends on the required video bitrate, encoder behavior, interference environment, and local spectrum plan.
Not automatically, but a 2T2R design can provide more antenna and spatial-stream options than a 1T1R design. The benefit depends on compatible equipment at both ends, antenna separation, the radio mode, and the installation. A well-integrated 1T1R system can still outperform a poorly implemented 2T2R system.
Test the finished aircraft and ground station, not just the module. Include the intended camera, encoder, antennas, battery, enclosure, and software. Measure video usability, latency, reconnect behavior, supply voltage, and temperature across representative distances, flight attitudes, and RF conditions.
Rules vary by country, frequency band, output level, antenna, certification status, and use case. Requirements may affect the allowed radio settings or whether a license or other authorization is needed. Check the applicable regulations and installation requirements before operating or selling the finished UAV.
