Introduction

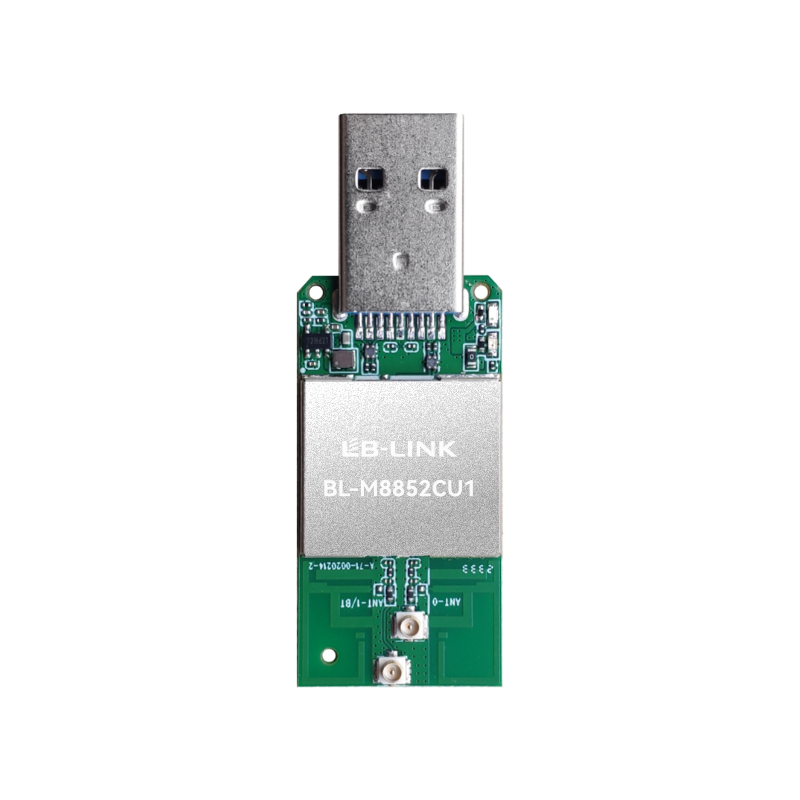

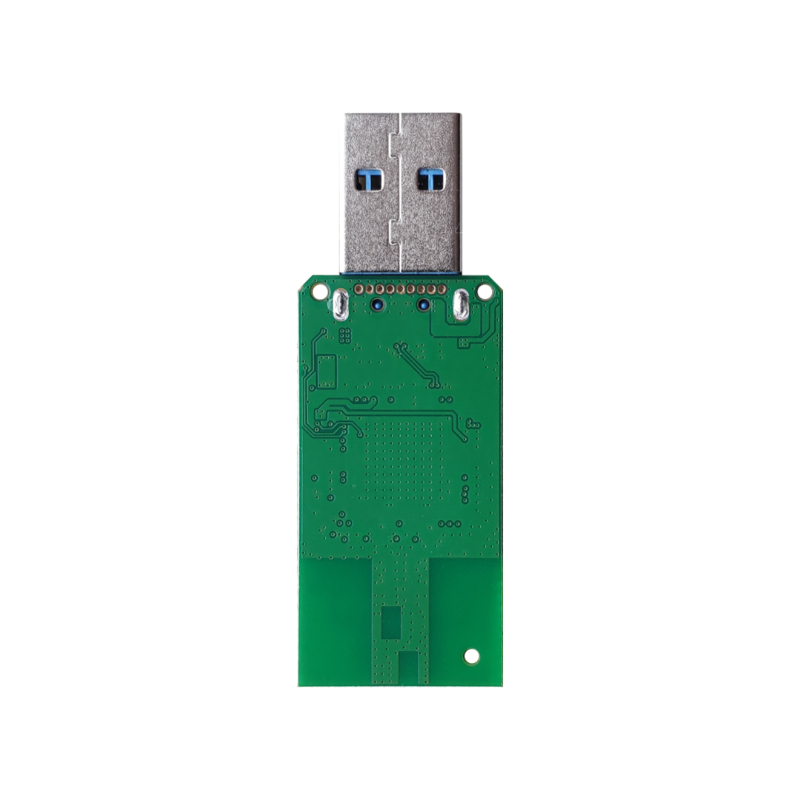

BL-M8852CU1 is a highly integrated Tri-band WLAN+B Combo Card. It combines a 2T2R Tri-band WLAN subsystem and a B v5.3 subsystem with USB interface controller. The Card compatible IEEE 802.11a/b/g/n/ac/ax standard and provides the maximum PHY rate up to 2402Mbps, it supports B dual mode with v5.3/v4.2/v2.1 compliant. The Card provides a complete solution for high-performance integrated WLAN and B devices such as OTT Boxes, Set-top Boxes, HD Cameras, etc.
Features
54.9*2.0*4.7mm small profile including USB3.0 Type-A plug
Compatible with USB2.0 for WLAN and B controller
Compatible with USB3.0 for WLAN only mode
Operating Frequencies: 2.4~2.4835GHz or 5.15~5.835GHz or 5.925~7.125GHz
Support Tri-band 2T2R mode with 20/40/80/160MHz bandwidth
Support 802.11ax with OFDMA and MU-MIMO
Support Dual band concurrent ( 2.4G 1T1R+ 5G/6GHz 1T1R )
Connect to external antennas through IPEX-1 / MHF-1 connector
Block Diagram
General Specifications
Card Name | BL-M8852CU1 |
Chipset | RTL8852CU-CG |
WLAN Standards | IEEE802.11a/b/g/n/ac/ax |
B Specification | B Core Specification v5.3/v4.2/v2.1 |
Host Interface | USB3.0 for WLAN / USB2.0 for WLAN and BT |
Antenna | Connect to the external antennas through IPEX-1 / MHF-1 connector( Two antennas ) |
Dimension | 54.9*20.0*4.7mm (L*W*H) |
Power Supply | DC 4.75V~5.5V@0.9A (Max RMS Current) |
Operation Temperature | -20℃ to +50℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |
Product Dimension
Card dimension: 54.9*20.0*4.7mm(L*W*H; Tolerance: ±0.3mm_L/W, ±0.2mm_H)
Card Net Weight：5.09 g（Tolerance: ±0.5g）
IPEX -1/ MHF-1 connector dimension: 2.6*3.0*1.2mm (L*W*H, Ø2.0mm)
Package Dimensions
Package specification:
1. 30 Cards per blister plate and 510 Cards per box.
2. The blister is bound with wire membrane and put into anti-static vacuum bag.
3. Put 1 bag of dry beads (20g) and 1 humidity card in each anti-static vacuum bag.
4. The outer box size is 35.2*21.5*15.5cm.
