M8723DP2 1T1R 802.11b/g/n WiFi+B4.2 Module

High-Speed ​​2.4G Wi-FI OMNIBUS AP+STA et STM32 pro Laptop et PC

Introductio

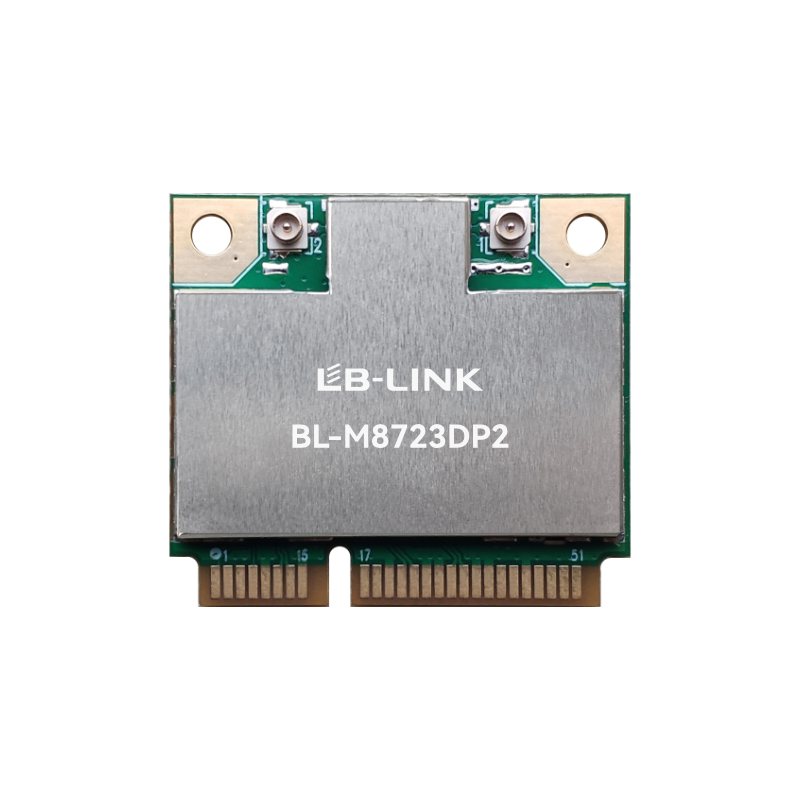

BL-M8723DP2 valde integrata est WLAN+Bluetooth Combo PCI Mini Card Express, WLAN subsystem cum PCI Express interfaciei moderatoris continet et subsystem subsystem cum USB interfaciei moderatoris. Haec card compatibilis IEEE802.11b/g/n vexillum et maximum ratem PHY usque ad 150Mbps praebet, Bluetooth modum duplicem cum BT v4.2 obsequentem sustinet, pluma-ditas connectivitas offerens et certissima perputium ab longinquo distans.

Features

• Forma factor: PCI Express Half-Mini Card cum fundo-parte arce foris

• Frequentia operans: 2.4~2.4835GHz

• IEEE Signa: IEEE 802.11b/g/n

• Wireless PHY rate potest pervenire ad 150Mbps

• Support BT Classic / BT Low Energy modus dualis

• Antenna externa connectere per IPEX connectors




Obstructionum Diagram

Specificationes generales

Nomen Card	BL-M8723DP2
Chipset	RTL8723DE-VB-CG
WLAN Signa	IEEE802.11b/g/n
BT Specification	Bluetooth Core Specification v4.2/2.1
Hospes Interface	PCIE pro WLAN & USB ad BT
Antenna	Antenna externa connectere per IPEX connexiones
Dimension	30.0*26.8*3.1mm (L*W*H)
Potestas Supple	DC 3.3V±0.2V @ 500 mA (Max)
Operatio Temperature	-20℃ ad +70℃
operatio Umor	X% ad XCV% RH (Non-Condensing)

Product Dimension

Card dimensio: 30.0*26.8*3.1mm (L*W*H; Tolerantia: ±0.3mm_L/W, ±0.2mm_H)

IPEX / MHF-1 dimensionis connector: 3.0*2.6*1.2mm (L*W*H, Ø2.0mm)

Sarcina Dimensiones

Specificatio sarcina:

1. 45 modulorum per pustula et 900 modulorum in arca.

2. Pustula membrana filo alligata atque in sacculo vacuo anti-statico immittitur.

3. Pone 1 sacculum globuli aridae (20g) et 1 humiditatis chartae in singulis sacculis anti-staticis vacuum.

4. Arca exterior magnitudo est 35.2*21.5*15.5cm.
