Introduction
BL-M7922AP1 is a highly integrated Tri-band WLAN+Bluetooth Combo M.2 Card. It combines a 2T2R Tri-band WLAN subsystem with PCI-Express interface controllers and a Bluetooth v5.4 subsystem with USB interface controller. This card compatible IEEE 802.11 a/b/g/n/ac/ax standard and provides the maximum PHY rate up to 2402Mbps, it supports Bluetooth dual mode with v5.4/v4.2/v2.1 compliant. The card provides a complete solution for high-performance integrated wireless and Bluetooth devices such as laptops, set-top boxes, smart TVs, etc.
Features
M.2 Type 2230 S2 Key A+E Card
Support 2.4GHz，5GHz，6GHz Tri-band channels
Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz or 5.925~7.125GHz
Support Tri-band 2T2R mode with 20/40/80/160MHz bandwidth
Support uplink MU-OFDMA TX and downlink MU-OFDMA RX
Dual Mode Bluetooth support : Simultaneous LE and BR / EDR
Connect to external antenna through MHF4/IPEX4 connectors

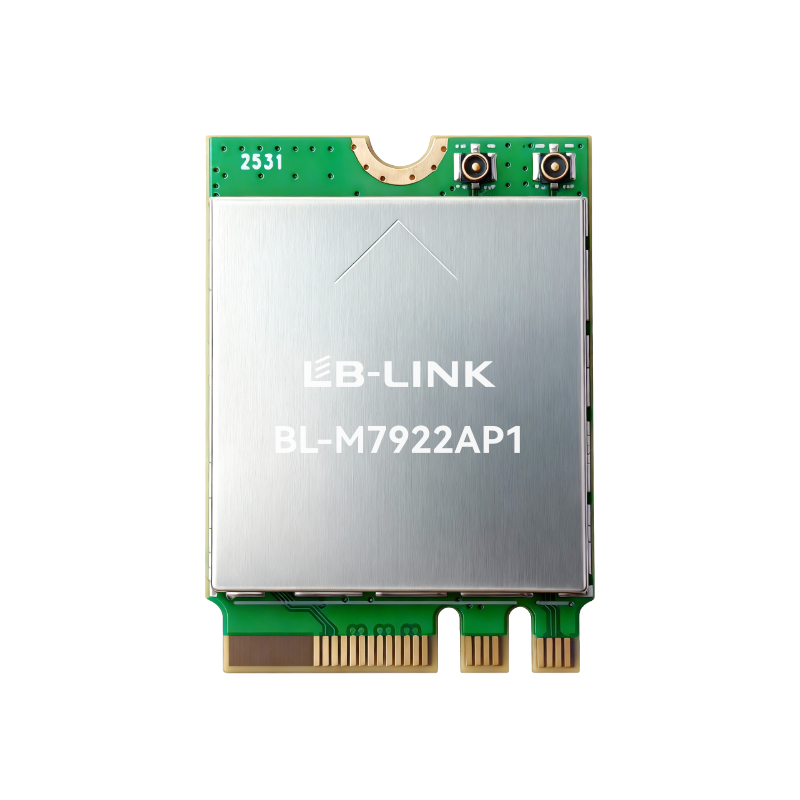

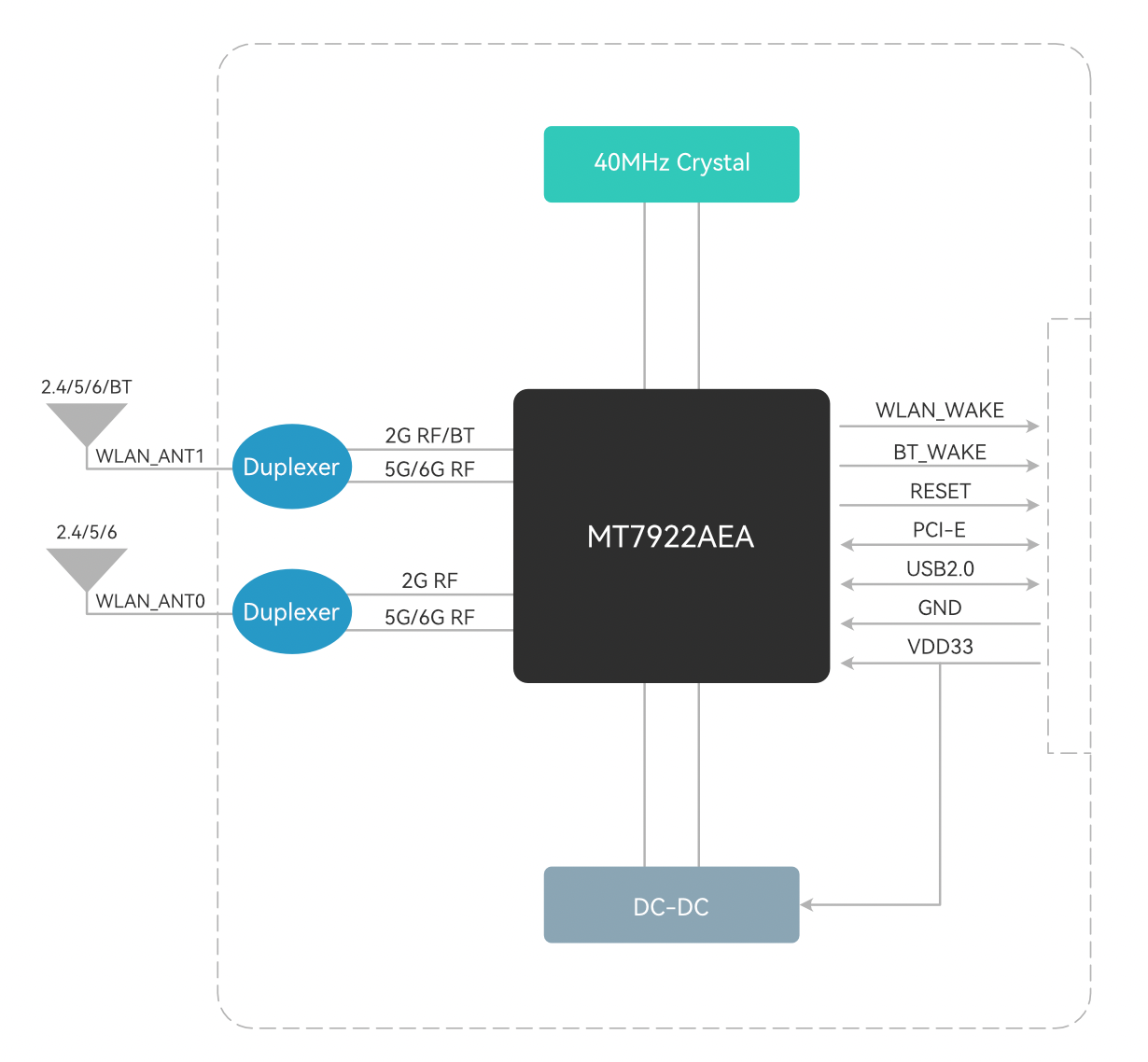

Block Diagram
![截屏2025-10-28 15.39.43]()
General Specifications
Card Name | BL-M7922AP1 |
Chipset | MT7922AEA |
WLAN Standards | IEEE802.11a/b/g/n/ac/ax |
BT Specification | Bluetooth Core Specification v5.4/4.2/2.1 |
Host Interface | PCI Express 2.1 for WLAN & USB2.0 FS for Bluetooth |
Antenna | Connect to the external antenna through MHF4/IPEX4 connectors(Two antennas) |
Dimension | M.2 Type 2230 Pluggable Card: 30.0*22.0*2.2mm (L*W*H) |
Power Supply | DC 3.3V±0.2V@1.5A (Max) |
Operation Temperature | -10℃ to +70℃ |
Operation Humidity | 10% to 95% RH (Non-Condensing) |

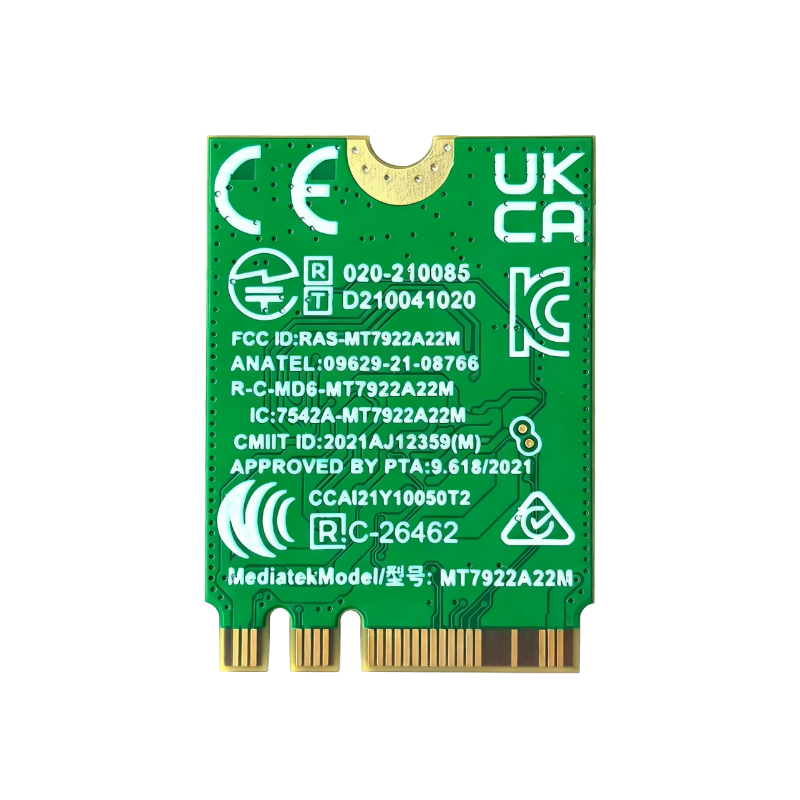

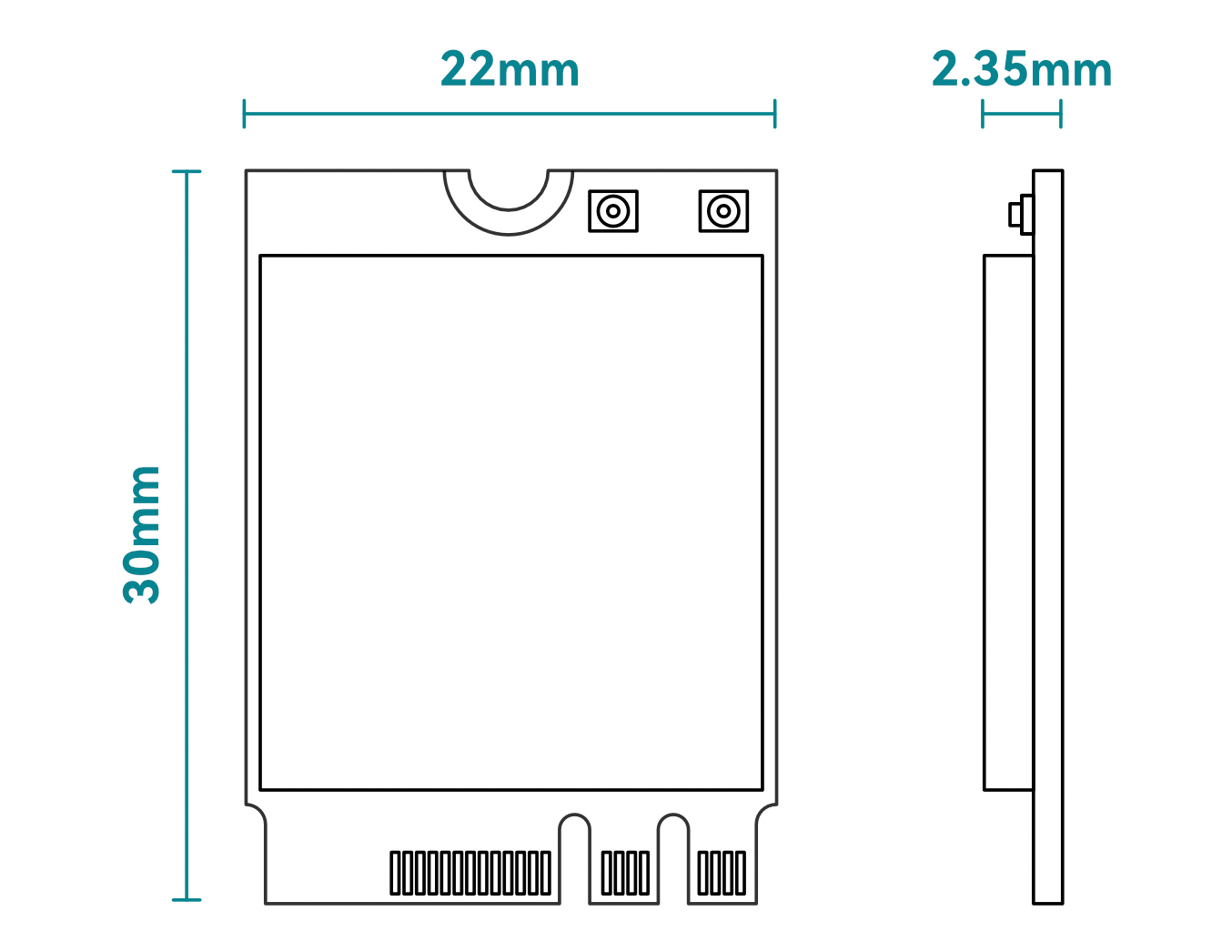

Product Dimension
![截屏2025-10-28 15.42.05]()
Package Dimensions
![截屏2025-10-28 15.43.55]()
